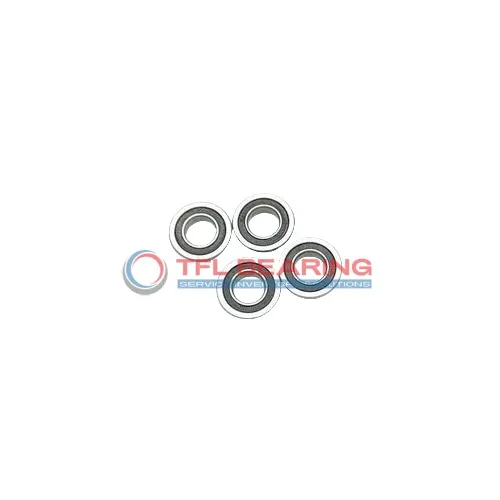

Flanged Deep Groove Ball Bearings W 604 R-2RS1

Flanged Deep Groove Ball Bearings W 604 R-2RS1

The W 604 R-2RS1 is a compact flanged deep groove ball bearing, measuring just 4mm by 12mm with a 13.5mm flange. Made entirely from stainless steel, it offers good corrosion resistance and durability.

This sealed bearing handles radial loads up to 121 lbf and spins remarkably fast, reaching 36,000 RPM. Its grease lubrication ensures smooth operation with minimal maintenance.

The integrated flange provides secure mounting, preventing slippage in tight spaces. It’s suitable for temperatures between -30°C and 120°C.

Ideal for small electric motors, medical devices or precision instruments where space is limited. Compliant with RoHS and REACH standards, it weighs only 2.3 grams.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 604 R-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Bore Dia 4 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 12 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 13.5 mm
  • Flange Thickness 1 mm
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 121 lbf
  • Static Radial Load 40 lbf
  • Max Speed 36000 rpm
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.0023 kg
  • Price（$） 1.5
Flanged Deep Groove Ball Bearings W 604 R-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 604 R-2RS1 Bearing Reduce Friction?

W 604 R-2RS1 Bearing features a sealed design with stainless steel components, ensuring smooth operation and reduced friction.

The grease lubrication maintains optimal performance, even at high speeds up to 36,000 rpm.

Its flanged outer ring provides secure mounting, preventing misalignment and further minimising wear.

With a dynamic radial load capacity of 121 lbf, it offers reliable performance in compact applications.

Application

Common Applications of W 604 R-2RS1 Bearing
W 604 R-2RS1 Bearing is commonly used in small electric motors, such as those found in household appliances like blenders and fans. Its compact size and sealed design make it ideal for protecting against dust and moisture.

In robotics, W 604 R-2RS1 Bearing provides smooth motion in joints and small actuators, thanks to its stainless steel construction. The flange adds stability, ensuring precise alignment in tight spaces.

For medical devices, W 604 R-2RS1 Bearing is often found in handheld instruments and diagnostic tools. Its grease lubrication ensures quiet operation, which is essential in sensitive environments.

Where Is W 604 R-2RS1 Bearing Used?
You’ll often spot W 604 R-2RS1 Bearing in office equipment like printers and scanners, where its low friction helps maintain consistent performance. The sealed design also prolongs its lifespan in dusty conditions.

In automotive applications, W 604 R-2RS1 Bearing supports small components like window regulators and wiper motors. Its corrosion-resistant materials make it reliable even in harsh weather.

Built for Versatility: W 604 R-2RS1 Bearing
W 604 R-2RS1 Bearing works well in consumer electronics, such as gaming controllers and drones, due to its lightweight and durability. The stainless steel balls reduce wear over time.

Industrial automation systems benefit from W 604 R-2RS1 Bearing in conveyor guides and sensor mounts. Its high-speed capability ensures efficient operation in repetitive tasks.

Light-Duty vs Heavy-Duty: Best Uses for W 604 R-2RS1 Bearing
For light-duty tasks, W 604 R-2RS1 Bearing excels in small machinery like sewing machines and power tools. Its compact design fits easily into tight assemblies.

In more demanding settings, W 604 R-2RS1 Bearing handles moderate loads in packaging equipment and vending machines. The flange provides extra support for axial stability.
