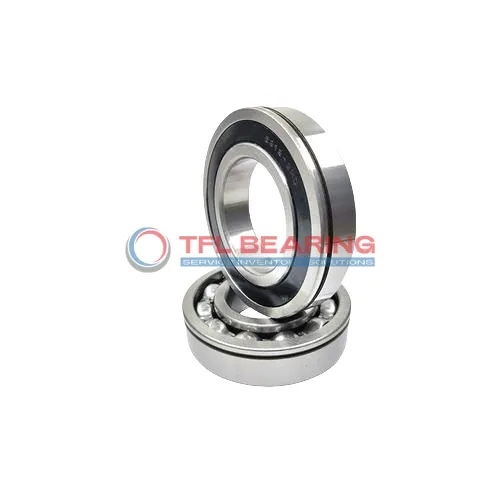

Snap Ring Groove Ball Bearings 6206-ZN/C3

Snap Ring Groove Ball Bearings 6206-ZN/C3

The 6206-ZN/C3 is a shielded, single-row ball bearing with a 30mm bore and 62mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 4384 lbf and spins smoothly at speeds up to 11000 RPM.

Its snap ring groove design keeps the outer ring securely in place, while the C3 clearance allows for thermal expansion in high-speed applications. The shielded construction helps keep dirt out without needing frequent maintenance.

This bearing suits moderate radial loads in machinery like electric motors or pumps. It performs well in temperatures from -30°C to 120°C and is interchangeable with SKF models for easy replacement.

Weighing 199g, it’s a compact yet durable choice. Compliant with RoHS and REACH standards, it’s a reliable option for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-ZN/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 62 mm
  • Width Of Snap Ring 1.9 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 199 g
  • Price（$） 5.71
Snap Ring Groove Ball Bearings 6206-ZN/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6206-ZN/C3 Bearing Reduce Friction?

6206-ZN/C3 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The shielded design helps keep contaminants out, maintaining consistent performance over time.

With a dynamic radial load capacity of 4384 lbf, it handles demanding radial applications effortlessly.
Its snap ring groove provides secure mounting, reducing vibration and wear.

Operating at up to 11,000 rpm, 6206-ZN/C3 Bearing balances speed and durability.
The C3 radial clearance ensures optimal performance under varying thermal conditions.

Application

Industrial Uses of 6206-ZN/C3 Bearing
The 6206-ZN/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. Its snap ring groove feature simplifies installation in housings, saving time during assembly.

Where Is 6206-ZN/C3 Bearing Used?
You’ll often find the 6206-ZN/C3 Bearing in automotive applications such as alternators and transmission systems. Its C3 radial clearance allows for better thermal expansion handling, making it reliable under varying temperatures.

Built for Heavy-Duty Use: 6206-ZN/C3 Bearing
This bearing works well in conveyor systems and agricultural equipment, thanks to its chrome steel construction. The shielded seals provide extra protection against dust and debris in tough environments.

Automotive vs Industrial: Applications of 6206-ZN/C3 Bearing
In cars, the 6206-ZN/C3 Bearing supports smooth rotation in wheel hubs and fans. For factories, it’s a go-to choice for gearboxes and compressors due to its durability and easy maintenance.
