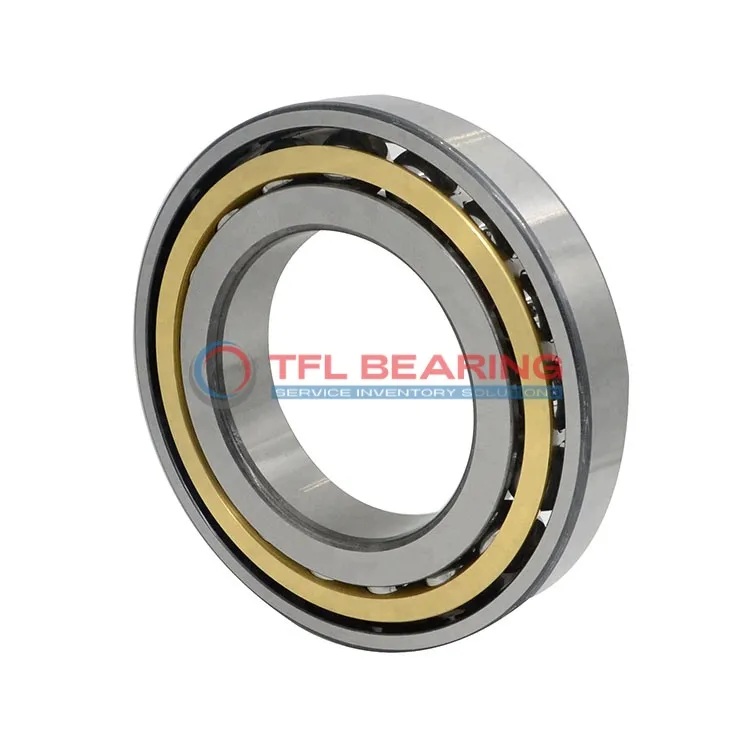

Single Row Angular Contact Ball Bearings (General) 7336 BCBM

Single Row Angular Contact Ball Bearings (General) 7336 BCBM

The 7336 BCBM is a single row angular contact ball bearing with a 180mm bore and 380mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 92250 lbf and operates smoothly at speeds up to 2400 RPM.

Its 40° contact angle efficiently manages combined loads, while the brass cage ensures durability. The open design allows for easy lubrication and maintenance.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or machinery where angular loads are present.

Weighing 42kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7336 BCBM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 380 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 75 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 257.7 mm
  • External Diameter On Inner Ring (Small Side Face) 219.8 mm
  • Internal Diameter On Outer Ring 307.9 mm
  • Chamfer Dimension 4 mm
  • Distance Pressure Point (a) 156 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 92250 lbf
  • Static Radial Load 121500 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 2400 rpm
  • Weight 42 kg
  • Price（$） 1246.99
Single Row Angular Contact Ball Bearings (General) 7336 BCBM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7336 BCBM Bearing

7336 BCBM Bearing features a 40° contact angle, optimised for handling combined radial and axial loads efficiently.
Its chrome steel rings and balls provide durability, while the brass cage ensures smooth operation at high speeds.

With a dynamic radial load capacity of 92250 lbf, 7336 BCBM Bearing is suitable for heavy-duty applications.
The P6 tolerance class guarantees precision, making it ideal for machinery requiring accurate performance.

Designed for temperatures from -30° to 110°C, 7336 BCBM Bearing performs reliably in varied conditions.
Its open design allows easy lubrication, ensuring consistent operation with minimal maintenance.

Application

Industrial Uses of 7336 BCBM Bearing
The 7336 BCBM Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently. Its brass cage offers durability in high-speed applications.

In automotive systems, 7336 BCBM Bearing fits well in wheel hubs and transmissions, providing stability under varying load conditions. The P6 tolerance ensures precise alignment for smooth vehicle operation.

For automation equipment, 7336 BCBM Bearing supports robotic arms and conveyor systems, thanks to its robust chrome steel construction. The open seal design allows for easy lubrication, extending service life in continuous operations.

Medical imaging devices benefit from 7336 BCBM Bearing’s reliable performance, especially in rotating components requiring low vibration. Its temperature range suits both indoor and outdoor medical environments.

In consumer appliances like large fans, 7336 BCBM Bearing ensures quiet and efficient rotation. The metric sizing makes it compatible with various European and Asian appliance models.
