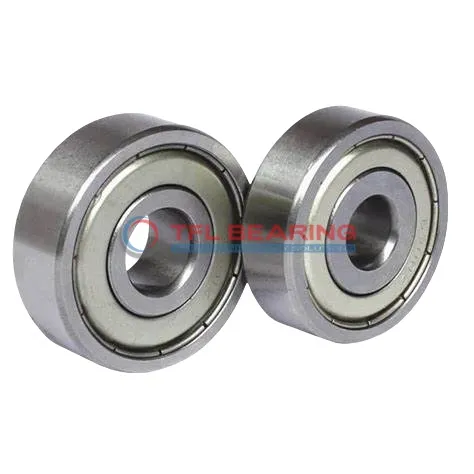

Single Row Deep Groove Ball Bearings 6202ZZ 5/8

The 6202ZZ 5/8 is a single-row deep groove ball bearing with a 15.875mm bore and 35mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM.

Its shielded design keeps dust out while maintaining easy access for lubrication. The steel cage ensures reliable performance, and it operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various industrial uses.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6202ZZ 5/8
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C0-Medium
Bore Dia 15.875 mm
Bore Dia Tolerance -0.008 mm to 0
Outer Dia 35 mm
Outer Dia Tolerance -0.011 mm to 0
Width 11 mm
Width Tolerance -0.12 mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Steel
Lubrication Required
ROHS Compliant
REACH Compliant
Temperature Range -30° to 120 ℃
Dynamic Radial Load 1812 lbf
Static Radial Load 843 lbf
Max Speed 20000 rpm

Single Row Deep Groove Ball Bearings 6202ZZ 5/8 dimension drawing

Download DWG Download PDF

Features

How Does 6202ZZ 5/8 Bearing Reduce Friction?

6202ZZ 5/8 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its chrome steel construction ensures durability while reducing friction during operation.

The shielded design protects against contaminants, maintaining consistent performance.
With a dynamic radial load capacity of 1812 lbf, it handles demanding applications with ease.

Operating at speeds up to 20,000 rpm, 6202ZZ 5/8 Bearing balances efficiency and reliability.
Its ABEC 1 tolerance class ensures consistent performance across various conditions.

Application

Common Applications of 6202ZZ 5/8 Bearing
In industrial settings, 6202ZZ 5/8 Bearing is commonly used in electric motors and pumps, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

Where Is 6202ZZ 5/8 Bearing Used?
You’ll often find 6202ZZ 5/8 Bearing in automotive applications like alternators and small gearboxes. Its medium radial clearance makes it suitable for moderate-speed operations.

Ideal for Precision: 6202ZZ 5/8 Bearing
For medical devices such as dental drills, 6202ZZ 5/8 Bearing offers reliable performance due to its consistent load handling. The steel cage adds stability during high-speed rotations.

Automotive vs Industrial: Applications of 6202ZZ 5/8 Bearing
In cars, 6202ZZ 5/8 Bearing works well in wheel hubs, while in factories, it’s a go-to for conveyor rollers. Its ABEC 1 tolerance balances cost and performance for diverse needs.

Perfect Fit for Automation: 6202ZZ 5/8 Bearing
Robotic arms and small automation systems benefit from 6202ZZ 5/8 Bearing’s smooth operation. The shielded seals protect against dust, extending service life in busy production lines.
