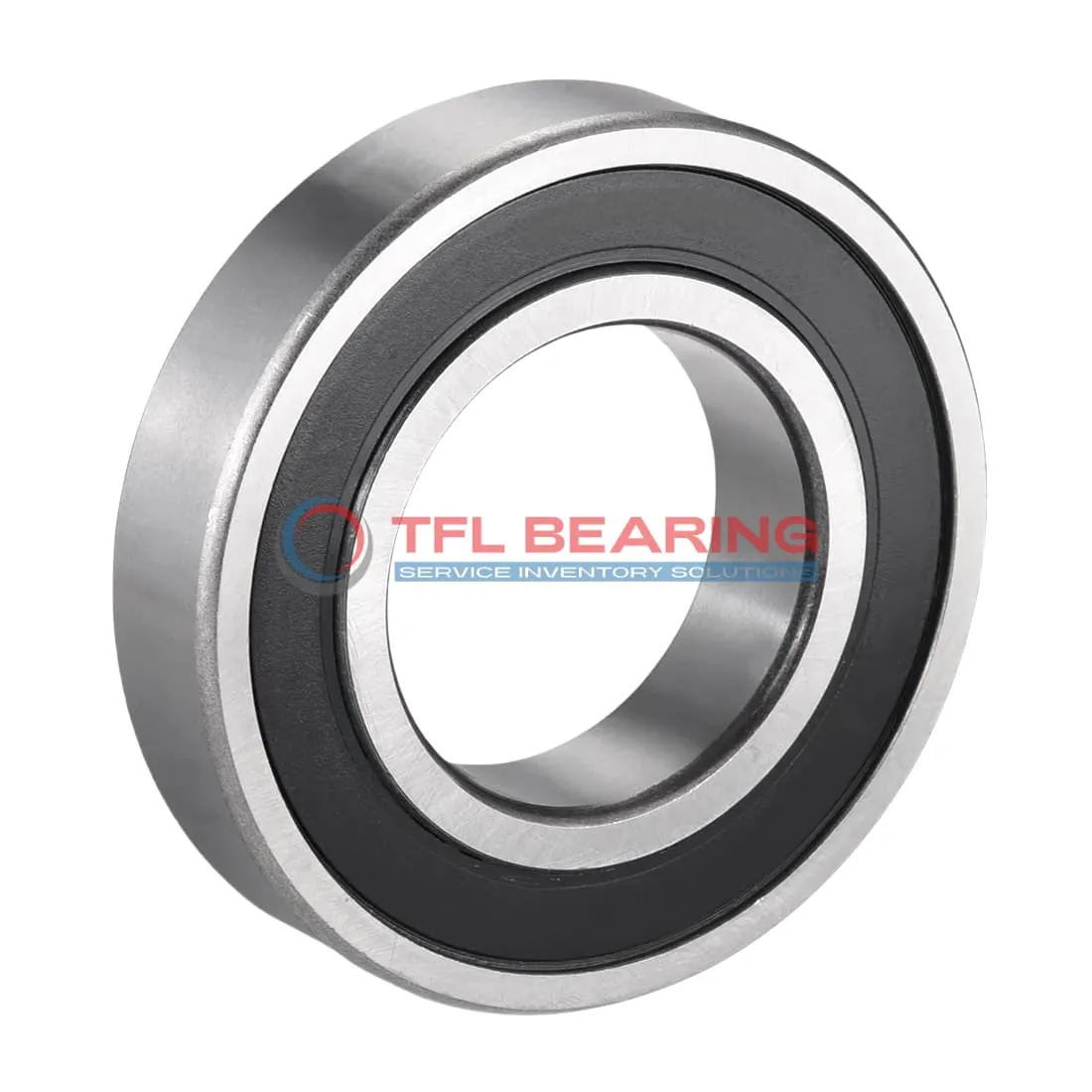

Single Row Deep Groove Ball Bearings 6020-2RS1/C4

Single Row Deep Groove Ball Bearings 6020-2RS1/C4

The 6020-2RS1/C4 is a single-row deep groove ball bearing with a 100mm bore and 150mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 13533 lbf and runs smoothly at speeds up to 4300 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The chrome steel cage adds durability, while the C4 radial clearance ensures reliable performance under varying temperatures.

This bearing works well in temperatures from -30°C to 120°C, making it suitable for industrial machinery or automotive applications. It’s interchangeable with SKF bearings for easy replacements.

Weighing 1250g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6020-2RS1/C4
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13533 lbf
  • Static Radial Load 12185 lbf
  • Max Speed 4300 rpm
  • Weight 1250 g
Single Row Deep Groove Ball Bearings 6020-2RS1/C4 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6020-2RS1/C4 Bearing

6020-2RS1/C4 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13533 lbf, ensuring steady performance in various applications.

The sealed design of 6020-2RS1/C4 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 4,300 rpm, it provides reliable operation in different conditions.

6020-2RS1/C4 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its chrome steel cage maintains ball alignment, reducing wear and extending service life.

The C4 radial clearance in 6020-2RS1/C4 Bearing allows for thermal expansion in high-speed applications.
This makes it a practical choice for machinery requiring consistent performance.

Application

Common Applications of 6020-2RS1/C4 Bearing
In industrial settings, 6020-2RS1/C4 Bearing is widely used in conveyor systems and electric motors, thanks to its sealed design that keeps contaminants out. The C4 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 6020-2RS1/C4 Bearing Used?
You’ll often find 6020-2RS1/C4 Bearing in automotive applications like wheel hubs and alternators, where its radial load capacity and sealed construction are key. The chrome steel rings and balls provide long-lasting performance in demanding conditions.

Built for Heavy-Duty Use: 6020-2RS1/C4 Bearing
This bearing excels in agricultural machinery, handling heavy loads while maintaining reliability. Its wide temperature range makes it suitable for both hot and cold environments, ensuring consistent performance.

Light-Duty vs Heavy-Duty: Best Uses for 6020-2RS1/C4 Bearing
For light-duty tasks like office printers, 6020-2RS1/C4 Bearing offers quiet operation and durability. In heavy-duty scenarios like industrial pumps, its robust construction handles high radial loads with ease.

Perfect Fit for Automation: 6020-2RS1/C4 Bearing
In robotic arms and automated assembly lines, 6020-2RS1/C4 Bearing provides precise movement and low friction. The sealed design reduces maintenance needs, making it ideal for continuous operation.
