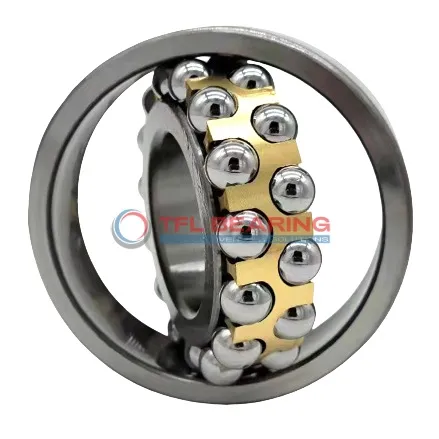

Self Aligning Ball Bearings 2217-KM C/3

Self Aligning Ball Bearings 2217-KM C/3

The 2217-KM C/3 is a self-aligning ball bearing with an 85mm tapered bore and 150mm outer diameter, built to handle radial loads. Its double-row design and chrome steel construction offer durability and smooth operation.

With a dynamic radial load capacity of 13162 lbf, it suits moderate to heavy-duty applications. The open seal type allows for easy lubrication, and it spins efficiently at speeds up to 5600 RPM.

The brass cage enhances stability, while the tapered bore ensures a secure fit on shafts. It operates well in temperatures from -30°C to 110°C, making it versatile for various environments.

Weighing 2.5kg, this bearing is robust yet manageable. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial machinery, conveyors, or other radial load scenarios.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2217-KM C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 36 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 106 mm
  • Internal Diameter On Outer Ring 130.7 mm
  • Chamfer Dimension 2 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 13162 lbf
  • Static Radial Load 5310 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 2.5 kg
  • Price（$） 401.57
Self Aligning Ball Bearings 2217-KM C/3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 2217-KM C/3 Bearing

2217-KM C/3 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity of 13162 lbf ensures reliable performance in various applications.

The double-row design of 2217-KM C/3 Bearing enhances load distribution, reducing stress on individual components.
Brass cage maintains ball alignment, contributing to smoother operation and longer service life.

2217-KM C/3 Bearing operates efficiently within a temperature range of -30° to 110°C.
With a maximum speed of 5,600 rpm, it combines durability and performance for demanding tasks.

The tapered bore design of 2217-KM C/3 Bearing ensures secure fitting and easy installation.
Its open seal type allows for straightforward maintenance and lubrication.

Application

Key Fields for 2217-KM C/3 Bearing
2217-KM C/3 Bearing is commonly used in industrial machinery, especially in applications where misalignment compensation is needed, such as conveyor systems and heavy-duty gearboxes. Its double-row design helps distribute loads evenly, ensuring long service life.

In the automotive sector, 2217-KM C/3 Bearing is often found in drivetrain components like differentials and wheel hubs, where its tapered bore provides a secure fit. The brass cage adds durability, making it suitable for high-vibration environments.

For automation equipment, 2217-KM C/3 Bearing’s self-aligning feature is ideal for robotic arms and assembly lines, where precision and flexibility are key. The open seal design allows for easy relubrication, reducing maintenance downtime.

In wind turbines, 2217-KM C/3 Bearing handles radial loads efficiently, even under variable wind conditions. Its chrome steel construction ensures reliability in harsh outdoor environments.

Household appliances like washing machines also benefit from 2217-KM C/3 Bearing’s smooth operation and noise reduction. The metric sizing makes it compatible with a wide range of European and Asian models.
