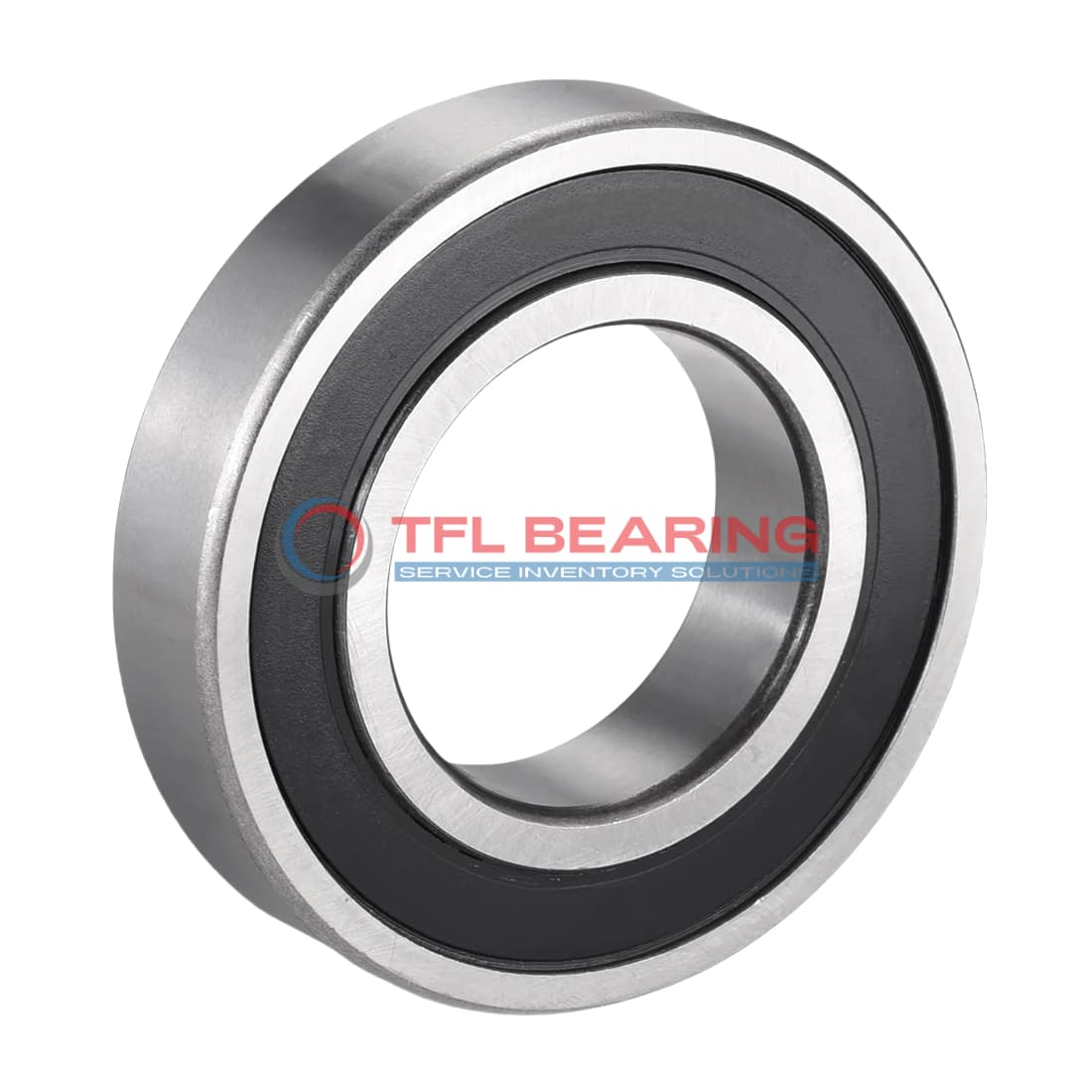

Single Row Deep Groove Ball Bearings 6222-2RS1

Single Row Deep Groove Ball Bearings 6222-2RS1

The 6222-2RS1 is a sealed single row deep groove ball bearing with a 110mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 33946 lbf and operates smoothly at speeds up to 2000 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs. The stainless steel cage adds durability, making it a reliable choice for long-term use.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for industrial machinery or pumps where radial loads are common.

Weighing 4.6kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6222-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 38 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 33946 lbf
  • Static Radial Load 26527 lbf
  • Max Speed 2000 rpm
  • Weight 4.6 kg
Single Row Deep Groove Ball Bearings 6222-2RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 6222-2RS1 Bearing for Precision Tasks?

6222-2RS1 Bearing features sealed construction, protecting against dust and moisture for consistent performance.
Its chrome steel rings and balls provide reliable radial load capacity up to 33946 lbf.

The stainless steel cage ensures smooth operation, even at speeds up to 2,000 rpm.
With a temperature range of -30° to 120°C, it performs well in various environments.

Designed with P6 tolerance, 6222-2RS1 Bearing offers precise and stable rotation.
Its deep groove design enhances load distribution, extending service life.

The grease lubrication reduces maintenance needs, making it a practical choice.
Its 110 mm bore size suits a range of industrial applications.

Application

Common Applications of 6222-2RS1 Bearing
In industrial settings, 6222-2RS1 Bearing is widely used in heavy machinery like pumps and compressors, where its sealed design protects against dust and moisture. The chrome steel construction ensures long-lasting performance even in demanding conditions.

Where Is 6222-2RS1 Bearing Used?
You’ll often find 6222-2RS1 Bearing in automotive applications, such as wheel hubs and transmissions, thanks to its ability to handle high radial loads. Its grease lubrication also reduces maintenance needs, making it a reliable choice for vehicles.

Built for Heavy-Duty Use: 6222-2RS1 Bearing
For automation systems, 6222-2RS1 Bearing provides smooth operation in robotic arms and conveyor belts. The stainless steel cage adds durability, ensuring consistent performance in high-speed environments.

Light-Duty vs Heavy-Duty: Best Uses for 6222-2RS1 Bearing
In consumer electronics like washing machines, 6222-2RS1 Bearing offers quiet and efficient operation. Its sealed design keeps out debris, making it ideal for household appliances that require low maintenance.
