Constant Section (CS) Bearings SG350AR0

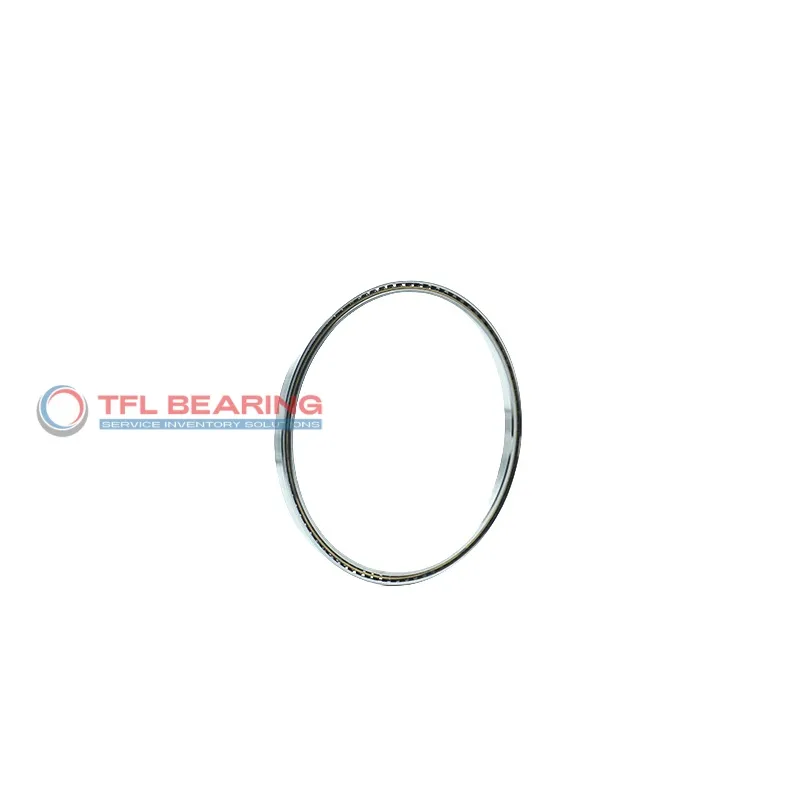

Constant Section (CS) Bearings SG350AR0

The SG350AR0 is a constant section bearing with a 35″ bore and 37″ outer diameter, crafted from durable stainless steel. It handles angular contact loads with a 30° contact angle, offering smooth operation.

Its open design and brass cage ensure reliable performance, while the ABEC-1 tolerance class provides consistent precision. The bearing supports static radial loads up to 68240 lbf and static thrust loads up to 50840 lbf.

This model is interchangeable with KAYDON bearings, making it a practical choice for replacements. Ideal for applications requiring thin-section bearings, such as robotics or precision machinery.

Weighing 26.2 lbs, it’s robust yet suitable for its size. Compliant with RoHS standards, it operates in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SG350AR0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 35"
  • Bore Dia Tolerance -0.0020"– 0"
  • Outer Dia 37"
  • Outer Dia Tolerance -0.0020"– 0"
  • Width 1"
  • Width Tolerance +.000 –.010"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • Contact Angle 30°
  • External Diameter On Inner Ring 35.742"
  • Internal Diameter On Outer Ring (Small Side Face) 36.258"
  • Internal Diameter On Outer Ring (Large Side Face) 36.440"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 17982 lbf
  • Static Radial Load 68240 lbf
  • Static Thrust Load 50840 lbf
  • Static Moment 197000 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 26.2 lbs
  • price（$） 4488.75
Constant Section (CS) Bearings SG350AR0 dimension drawing
Download DWG Download PDF

Features

How Is SG350AR0 Bearing Engineered for Reliability?

SG350AR0 Bearing features a stainless steel construction, ensuring durability and resistance to corrosion.
Its single-row design with a 30° contact angle provides excellent angular contact performance.
The brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a dynamic radial load capacity of 17982 lbf, it handles demanding applications with ease.

Application

Common Applications of SG350AR0 Bearing
SG350AR0 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery where its thin-section design saves space without compromising strength. The stainless steel construction ensures durability in demanding environments.

In aerospace applications, SG350AR0 Bearing handles angular contact loads effectively, making it suitable for flight control systems and landing gear mechanisms. Its ABEC-1 tolerance provides reliable performance under high stress.

For medical imaging devices, SG350AR0 Bearing’s brass cage and smooth operation reduce friction, ensuring quiet and precise movement. The wide temperature range also makes it adaptable to various clinical settings.

In packaging machinery, SG350AR0 Bearing supports high-speed conveyor systems with consistent radial load capacity. The inch sizing simplifies integration into North American equipment designs.

SG350AR0 Bearing is also found in semiconductor manufacturing equipment, where its precision and cleanliness meet strict industry standards. The open seal design allows for easy lubrication maintenance.
