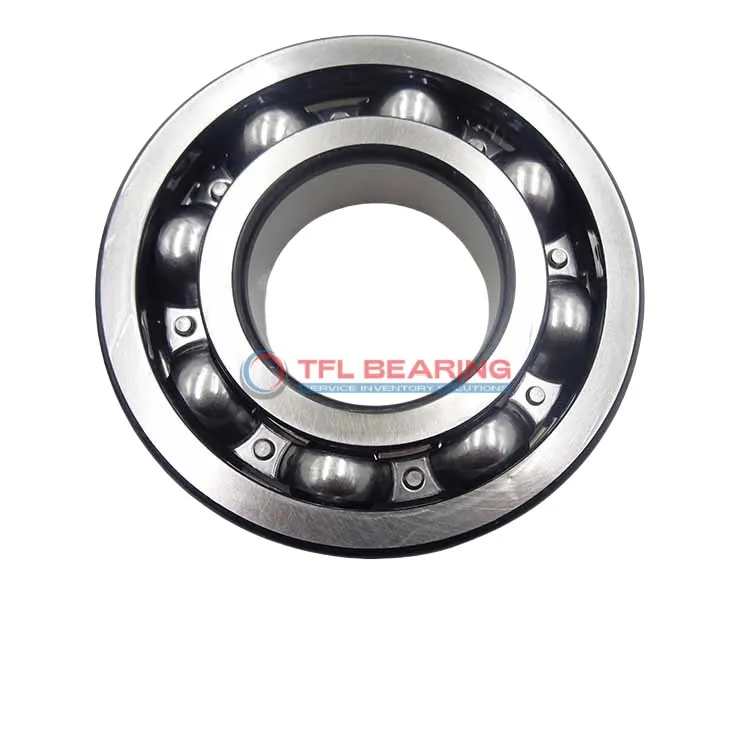

Single Row Deep Groove Ball Bearings 6334/C4H

Single Row Deep Groove Ball Bearings 6334/C4H

The 6334/C4H is a single-row deep groove ball bearing with a 170mm bore and 360mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7014 lbf and operates smoothly at speeds up to 2400 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

With a C4 radial clearance, it offers flexibility in applications where thermal expansion is a factor. Ideal for industrial machinery or heavy equipment requiring robust radial load support.

Weighing 30.8kg, it’s built for heavy-duty use. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6334/C4H
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 170 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 72 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7014 lbf
  • Static Radial Load 76435 lbf
  • Max Speed 2400 rpm
  • Weight 30800 g
Single Row Deep Groove Ball Bearings 6334/C4H dimension drawing
Download DWG Download PDF

Features

Performance Features of 6334/C4H Bearing

6334/C4H Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 7014 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.

The C4 radial clearance provides optimal performance in various temperature conditions, from -30°C to 120°C.
With a maximum speed of 2,400 rpm, it balances durability and operational efficiency.

6334/C4H Bearing’s open design simplifies maintenance and reduces operational costs.
Its chrome steel cage enhances stability, ensuring long service life even under heavy loads.

Application

Industrial Uses of 6334/C4H Bearing
6334/C4H Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.

What Makes 6334/C4H Bearing a Preferred Choice?
In conveyor systems, 6334/C4H Bearing’s chrome steel construction ensures durability, even under continuous operation. Its C4 radial clearance provides flexibility in high-temperature environments, making it suitable for foundries and kilns.

Built for Heavy-Duty Use: 6334/C4H Bearing
For wind turbines, 6334/C4H Bearing’s large bore size and robust design support smooth rotation under varying wind loads. The ABEC 1 tolerance ensures reliable performance without unnecessary precision costs.

Automotive vs Aerospace: Applications of 6334/C4H Bearing
In truck wheel hubs, 6334/C4H Bearing handles radial loads reliably, while its temperature range suits long-haul operations. For aerospace ground equipment, its weight-to-load ratio balances durability and portability.

Perfect Fit for Automation: 6334/C4H Bearing
6334/C4H Bearing works well in robotic assembly lines, where its consistent performance reduces downtime. The chrome steel cage minimises wear, even in high-speed sorting applications.
