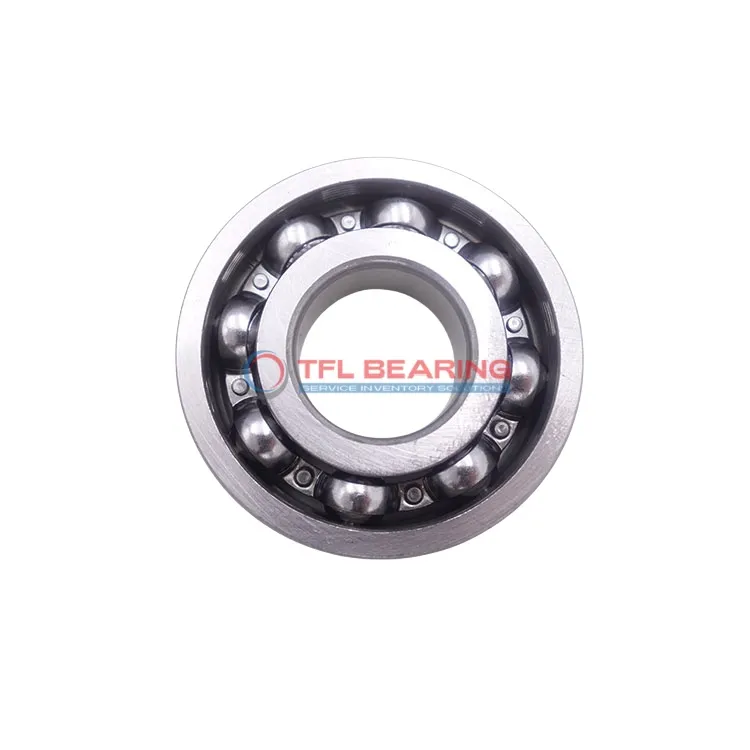

Single Row Deep Groove Ball Bearings 6220

Single Row Deep Groove Ball Bearings 6220

The 6220 is a single-row deep groove ball bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 27427 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery like pumps or electric motors where radial loads are common.

Weighing 3120g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6220
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 34 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 27427 lbf
  • Static Radial Load 2093 lbf
  • Max Speed 3600 rpm
  • Weight 3120 g
  • price（$） 57.231
Single Row Deep Groove Ball Bearings 6220 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6220 Bearing

6220 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 27427 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 3,600 rpm, it balances performance and durability in various applications.

Application

Industrial Uses of 6220 Bearing
The 6220 Bearing is commonly used in heavy machinery like pumps and compressors, where its deep groove design handles radial loads efficiently.
Its chrome steel construction ensures durability in demanding industrial environments.

What Makes 6220 Bearing a Preferred Choice?
In automotive applications, 6220 Bearing fits well in wheel hubs and transmissions due to its balanced load capacity.
The open seal design allows for easy lubrication, extending its service life in high-speed scenarios.

Perfect Fit for Automation: 6220 Bearing
For robotic arms and conveyor systems, 6220 Bearing offers smooth rotation and reliable performance.
Its metric sizing makes it compatible with a variety of European and Asian automation equipment.

Medical vs Industrial: Where 6220 Bearing Excels
While not typically used in medical devices, 6220 Bearing shines in industrial settings like electric motors and gearboxes.
The stainless steel cage provides added resistance to wear in continuous operation environments.

Where to Use 6220 Bearing
In household appliances like washing machines, 6220 Bearing ensures quiet and efficient operation.
Its temperature range makes it suitable for both indoor and outdoor applications.
