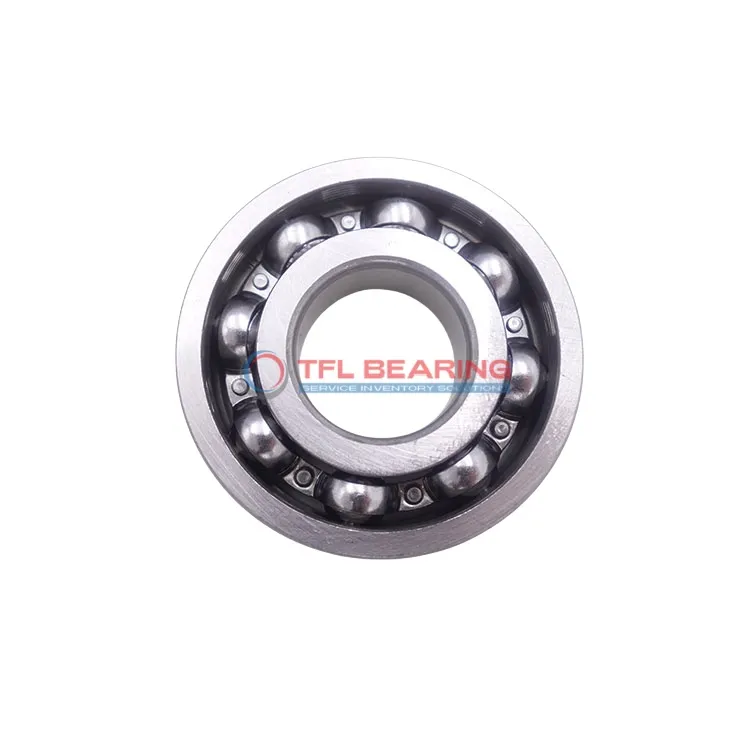

Single Row Deep Groove Ball Bearings 6220 C3/S1 SKF

Single Row Deep Groove Ball Bearings 6220 C3/S1 SKF

The 6220 C3/S1 SKF is a single-row deep groove ball bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 27427 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures reliable performance. The bearing works efficiently in temperatures ranging from -30°C to 200°C.

With a C3 radial clearance, it accommodates slight misalignments and thermal expansion. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for industrial machinery or electric motors where radial loads are common. Weighing 3120g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6220 C3/S1 SKF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 34 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 200 °C
  • Dynamic Radial Load 27427 lbf
  • Static Radial Load 2093 lbf
  • Max Speed 3600 rpm
  • Weight 3120 g
Single Row Deep Groove Ball Bearings 6220 C3/S1 SKF dimension drawing
Download DWG Download PDF

Features

Performance Features of 6220 C3/S1 SKF Bearing

6220 C3/S1 SKF Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 27427 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.

The C3 radial clearance allows for thermal expansion, making it suitable for varied operating conditions.
With a maximum speed of 3,600 rpm, it balances performance and durability in industrial applications.

6220 C3/S1 SKF Bearing operates in temperatures from -30°C to 200°C, adapting to demanding environments.
The open seal design simplifies maintenance while ensuring reliable performance over time.

Application

Industrial Uses of 6220 C3/S1 SKF Bearing
The 6220 C3/S1 SKF Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. Its open seal type allows for easy lubrication, extending service life in demanding conditions.

What Makes 6220 C3/S1 SKF Bearing a Preferred Choice?
In automotive applications, 6220 C3/S1 SKF Bearing supports wheel hubs and transmissions, thanks to its chrome steel construction. The C3 clearance ensures reliable performance even under varying thermal expansions.

Perfect Fit for Automation: 6220 C3/S1 SKF Bearing
For robotic arms and automated conveyor systems, 6220 C3/S1 SKF Bearing offers smooth operation with minimal maintenance. Its metric sizing makes it compatible with a wide range of European and Asian equipment.

Medical vs Industrial: Where 6220 C3/S1 SKF Bearing Excels
While 6220 C3/S1 SKF Bearing is robust enough for heavy machinery, it also meets the precision needs of medical devices like centrifuges. The temperature range up to 200°C ensures reliability in sterilisation processes.
