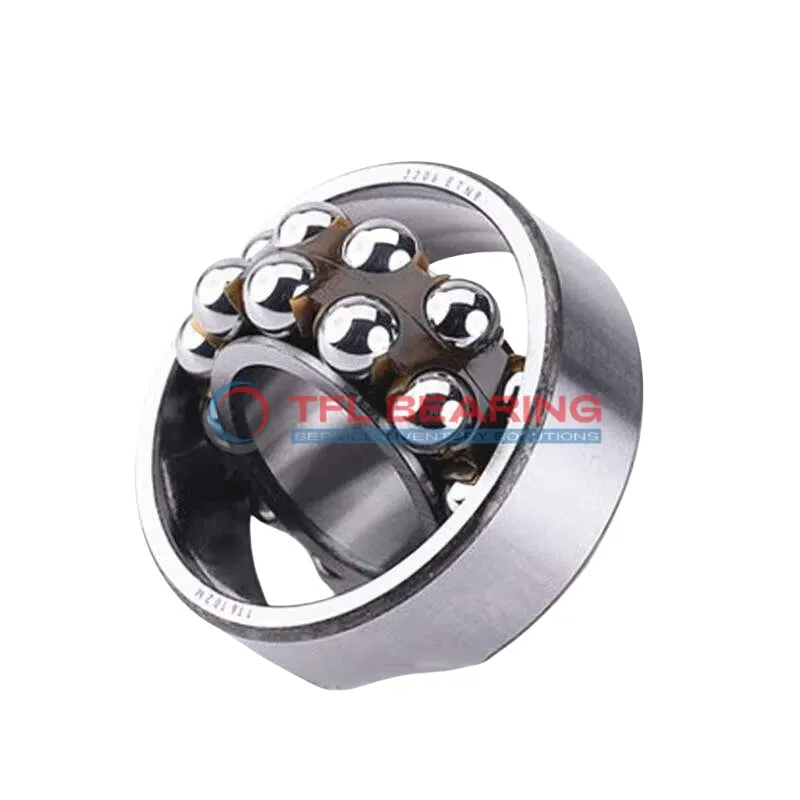

Self Aligning Ball Bearings 1315 K

Self Aligning Ball Bearings 1315 K

The 1315 K is a self-aligning ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 17842 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and open seal type allow for easy lubrication and maintenance, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 3.4kg, it’s a robust choice for heavy-duty applications. Compliant with RoHS and REACH standards, it meets environmental and safety requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1315 K
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 37 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 104.8 mm
  • Internal Diameter On Outer Ring 135.2 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 17842 lbf
  • Static Radial Load 6750 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 3.4 kg
  • Price（$） 127.7
Self Aligning Ball Bearings 1315 K dimension drawing
Download DWG Download PDF

Features

Why Choose 1315 K Bearing for Precision Tasks?

1315 K Bearing features a double-row design with chrome steel rings and balls, ensuring reliable radial load handling.
Its dynamic radial load capacity of 17842 lbf makes it suitable for demanding industrial applications.

The nylon cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a maximum speed of 5,600 rpm, it balances performance and durability.

1315 K Bearing operates efficiently in temperatures from -30° to 110°C, adapting to various working conditions.
Its open design simplifies lubrication, helping maintain optimal performance over time.

Application

Industrial Uses of 1315 K Bearing
1315 K Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design helps distribute radial loads evenly, ensuring longer service life.

In automotive applications, 1315 K Bearing fits well in gearboxes and wheel hubs, handling radial loads with ease. Its chrome steel construction provides durability, even under continuous use in vehicles.

For automation equipment, 1315 K Bearing supports robotic arms and assembly lines, where smooth rotation is essential. The nylon cage reduces friction, making it suitable for high-speed operations.

Where Is 1315 K Bearing Used?
You’ll often find 1315 K Bearing in agricultural machinery, such as tractors and harvesters, where it handles rough conditions. Its open design allows for easy relubrication, extending its lifespan.

In construction equipment, 1315 K Bearing works well in cranes and excavators, thanks to its ability to manage heavy radial loads. The metric sizing ensures compatibility with a wide range of machinery.

Built for Heavy-Duty Use: 1315 K Bearing
1315 K Bearing excels in mining equipment, where dust and debris are common. The chrome steel rings and balls resist wear, even in harsh environments.

For printing presses, 1315 K Bearing ensures precise paper handling with minimal vibration. Its self-aligning capability keeps operations smooth, reducing downtime.

Automotive vs Aerospace: Applications of 1315 K Bearing
In cars, 1315 K Bearing is ideal for transmissions, offering reliable performance under radial stress. Its nylon cage helps dampen vibrations, improving ride comfort.

In aerospace, 1315 K Bearing suits auxiliary systems like landing gear mechanisms. The temperature range ensures functionality in varying conditions, from ground to flight.
