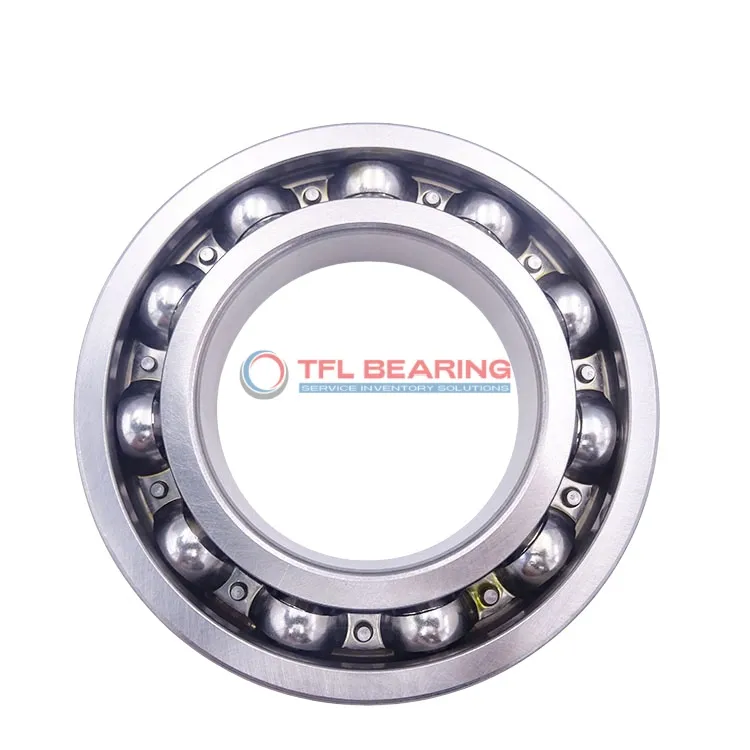

Single Row Deep Groove Ball Bearings 6222 MA/C4S1

Single Row Deep Groove Ball Bearings 6222 MA/C4S1

The 6222 MA/C4S1 is a single row deep groove ball bearing with a 110mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 33946 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design and machined metal cage ensure durability and easy maintenance. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery or heavy equipment where radial loads are common.

Weighing 4450g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6222 MA/C4S1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 38 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 200 °C
  • Dynamic Radial Load 33946 lbf
  • Static Radial Load 26527 lbf
  • Max Speed 4300 rpm
  • Weight 4450 g
  • price（$） 182.673
Single Row Deep Groove Ball Bearings 6222 MA/C4S1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6222 MA/C4S1 Bearing

6222 MA/C4S1 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 33946 lbf, ensuring reliable performance in various applications.

The machined metal cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 4,300 rpm, it balances durability and efficiency for industrial use.

6222 MA/C4S1 Bearing operates in temperatures from -30°C to 200°C, suitable for diverse environments.
Its open design simplifies maintenance while the C4 radial clearance ensures smooth operation.

The ABEC 1 tolerance class provides consistent performance, making it a practical choice for many applications.
Weighing 4450 g, it combines robust construction with manageable handling for installation.

Application

Industrial Uses of 6222 MA/C4S1 Bearing
The 6222 MA/C4S1 Bearing is commonly used in heavy machinery like conveyors and industrial fans, where its radial load capacity ensures reliable performance.
Its open design and C4 clearance make it suitable for applications with thermal expansion, such as large electric motors.

Where Is 6222 MA/C4S1 Bearing Used?
You’ll often find 6222 MA/C4S1 Bearing in agricultural equipment, supporting components like gearboxes and pulleys.
Its chrome steel construction handles tough conditions, from dust to moderate vibrations, without compromising efficiency.

Built for Heavy-Duty Use: 6222 MA/C4S1 Bearing
In construction equipment, 6222 MA/C4S1 Bearing excels in supporting radial loads for cranes and excavators.
The machined metal cage adds durability, making it a solid choice for long-term use in demanding environments.

Automotive vs Aerospace: Applications of 6222 MA/C4S1 Bearing
While 6222 MA/C4S1 Bearing fits automotive systems like wheel hubs, its temperature range also suits aerospace auxiliary units.
The metric sizing ensures compatibility across European and Asian machinery, offering flexibility in diverse industries.
