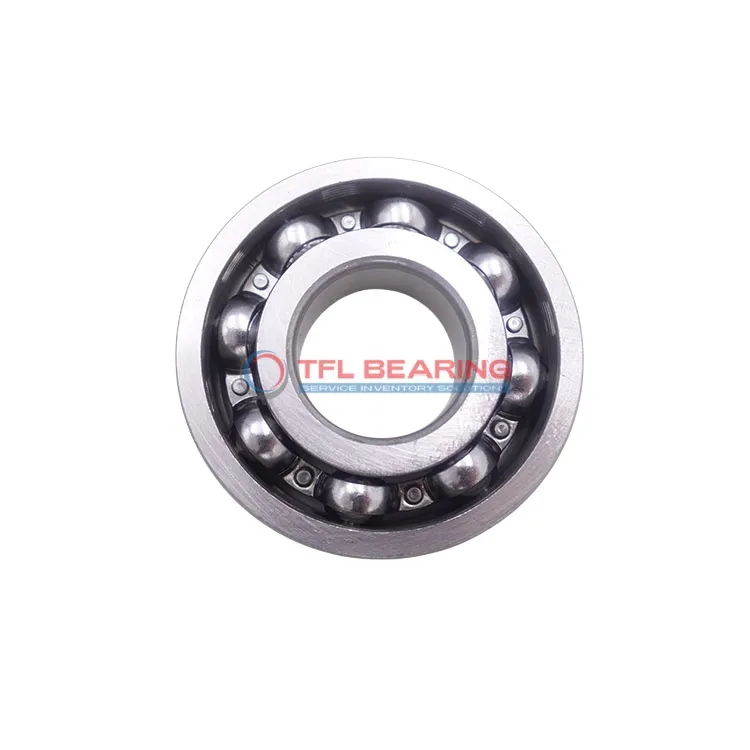

Single Row Deep Groove Ball Bearings 6220 JEM

The 6220 JEM is a single-row deep groove ball bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 27427 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design simplifies maintenance, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 3120g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6220 JEM
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 100 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 180 mm
Outer Dia Tolerance -0.025mm to 0
Width 34 mm
Width Tolerance -0.200mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 27427 lbf
Static Radial Load 2093 lbf
Max Speed 3600 rpm
Weight 3120 g
price（$） 57.231

Single Row Deep Groove Ball Bearings 6220 JEM dimension drawing

Download DWG Download PDF

Features

Performance Features of 6220 JEM Bearing

6220 JEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 27427 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances stability and reduces friction during operation.
With a maximum speed of 3,600 rpm, it balances durability and efficiency for industrial use.

6220 JEM Bearing operates smoothly within a temperature range of -30°C to 120°C.
Its open seal type allows for easy maintenance and lubrication adjustments when needed.

Application

Industrial Uses of 6220 JEM Bearing
The 6220 JEM Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. Its open design allows for easy lubrication, making it suitable for continuous operation environments.

Where Is 6220 JEM Bearing Used?
You’ll often find the 6220 JEM Bearing in automotive applications such as wheel hubs and transmissions, thanks to its durable chrome steel construction. The ABEC 1 tolerance ensures smooth operation even under varying loads.

Perfect Fit for Automation: 6220 JEM Bearing
In automated systems, the 6220 JEM Bearing supports robotic arms and conveyor belts with its consistent performance. The metric sizing makes it a versatile choice for various European and Asian equipment standards.

Light-Duty vs Heavy-Duty: Best Uses for 6220 JEM Bearing
For light-duty applications like household appliances, the 6220 JEM Bearing offers quiet and efficient operation. In heavier industrial settings, its high dynamic radial load capacity ensures longevity and reliability.

Medical vs Industrial: Where 6220 JEM Bearing Excels
While the 6220 JEM Bearing isn’t typically used in medical devices, it shines in industrial equipment like compressors and gearboxes. Its temperature range and material composition make it ideal for demanding environments.
