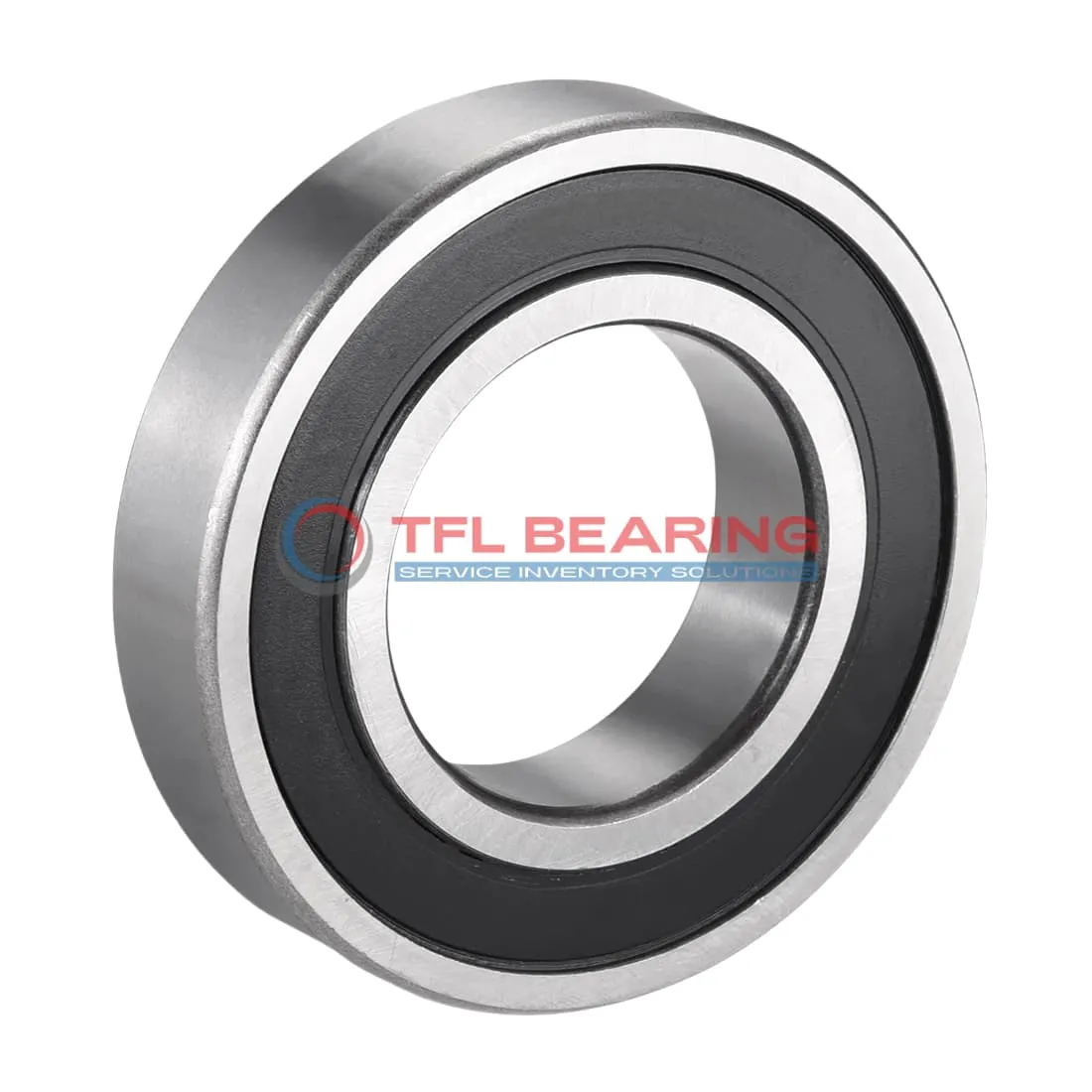

Single Row Deep Groove Ball Bearings 6220-RS1

Single Row Deep Groove Ball Bearings 6220-RS1

The 6220-RS1 is a sealed single-row deep groove ball bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 28551 lbf and operates smoothly at speeds up to 2400 RPM.

Its sealed design keeps out dust and moisture, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 3.23kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6220-RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 34 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 28551 lbf
  • Static Radial Load 20907 lbf
  • Max Speed 2400 rpm
  • Weight 3.23 kg
  • price（$） 60.84
Single Row Deep Groove Ball Bearings 6220-RS1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6220-RS1 Bearing

6220-RS1 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 28551 lbf, making it suitable for demanding applications.
The sealed design protects against dust and moisture, ensuring reliable operation in various environments.
With a maximum speed of 2,400 rpm, it balances durability and performance.

How Does 6220-RS1 Bearing Reduce Friction?

6220-RS1 Bearing features a single-row deep groove design, minimising friction during operation.
The stainless steel cage maintains proper ball alignment, reducing wear and extending service life.
Its sealed construction helps retain lubrication, further lowering friction and maintenance needs.
Operating smoothly between -30°C to 120°C, it performs reliably in diverse conditions.

Engineered for Precision: 6220-RS1 Bearing

6220-RS1 Bearing meets P6 tolerance class standards, ensuring precise and consistent performance.
The chrome steel construction provides durability while maintaining dimensional stability under load.
With a static radial load capacity of 20907 lbf, it handles heavy-duty applications with ease.
Its 34 mm width offers a compact solution without compromising strength or reliability.

Why Choose 6220-RS1 Bearing for Precision Tasks?

6220-RS1 Bearing’s deep groove design ensures smooth rotation and accurate performance.
The sealed construction prevents contamination, maintaining precision over extended periods.
Its high load capacity makes it versatile for both industrial and precision applications.
Weighing 3.23 kg, it provides robust performance while remaining manageable for installation.

Application

Industrial Uses of 6220-RS1 Bearing
The 6220-RS1 Bearing is commonly used in heavy machinery like conveyors and industrial fans, where its sealed design helps keep contaminants out. Its chrome steel construction ensures durability even in demanding environments.

Where Is 6220-RS1 Bearing Used?
You’ll often find the 6220-RS1 Bearing in automotive applications such as electric motors and wheel hubs. Its high radial load capacity makes it reliable for smooth, long-lasting performance.

Built for Heavy-Duty Use: 6220-RS1 Bearing
In automation systems, the 6220-RS1 Bearing supports robotic arms and assembly line equipment. The stainless steel cage adds extra resistance to wear and tear.

Light-Duty vs Heavy-Duty: Best Uses for 6220-RS1 Bearing
For household appliances like washing machines, the 6220-RS1 Bearing provides quiet and efficient operation. Its sealed design also makes it suitable for dusty or humid conditions.

Key Fields for 6220-RS1 Bearing
Medical devices such as diagnostic equipment benefit from the 6220-RS1 Bearing’s precision and reliability. The temperature range ensures consistent performance in various clinical settings.
