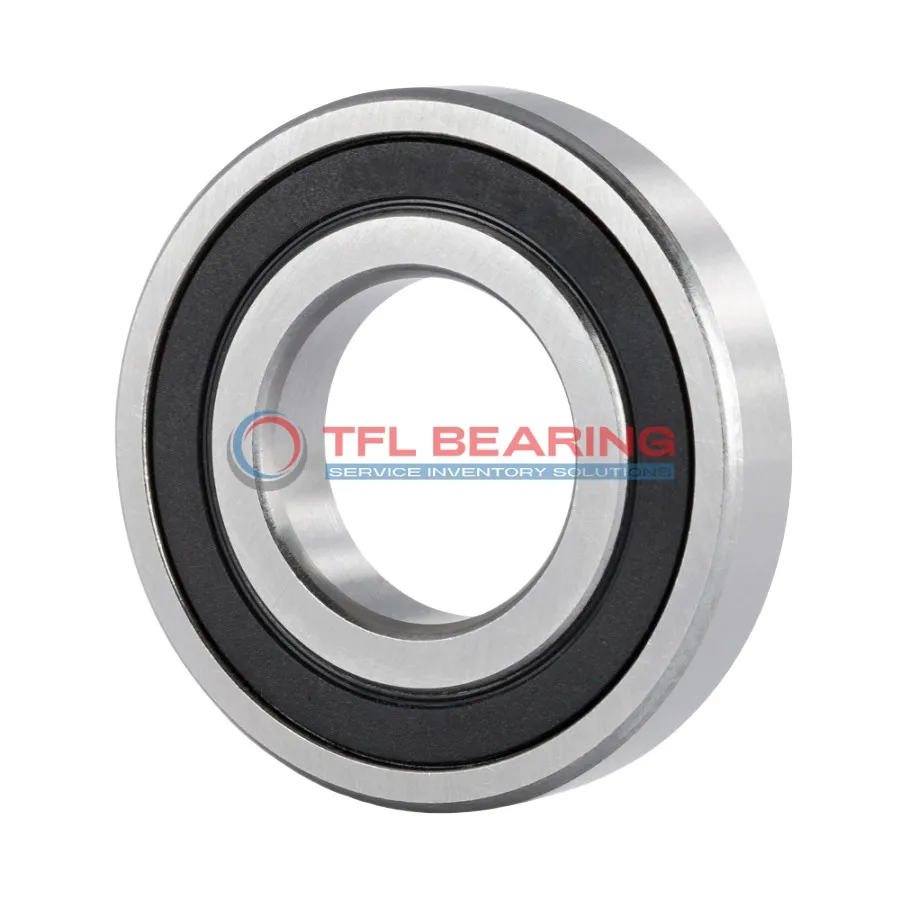

Single Row Deep Groove Ball Bearings 6209-RS1/W64F

Single Row Deep Groove Ball Bearings 6209-RS1/W64F

The 6209-RS1/W64F is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7351 lbf and spins smoothly at speeds up to 7700 RPM.

Sealed with solid oil lubrication, this bearing requires minimal maintenance and offers reliable performance. Its chrome steel cage ensures durability, even in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 407g, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209-RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Max Speed 7700 rpm
  • Weight 407 g
Single Row Deep Groove Ball Bearings 6209-RS1/W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 6209-RS1/W64F Bearing

6209-RS1/W64F Bearing is designed with chrome steel rings and balls, offering strong radial load capacity up to 7351 lbf.
Its sealed construction and solid oil lubrication ensure smooth operation in various conditions.
The bearing maintains reliable performance within a temperature range of -30°C to 120°C.
With a maximum speed of 7,700 rpm, it balances durability and efficiency for demanding applications.

Application

Industrial Uses of 6209-RS1/W64F Bearing
This sealed deep groove ball bearing is commonly used in industrial machinery like pumps and electric motors, where its solid oil lubrication ensures long service life. The chrome steel construction provides reliable performance even in dusty or humid environments.

Where Is 6209-RS1/W64F Bearing Used?
You’ll often find this bearing in automotive applications such as alternators and water pumps, thanks to its balanced radial load capacity. The ABEC 1 tolerance makes it suitable for general precision requirements without unnecessary cost.

Built for Versatility: 6209-RS1/W64F Bearing
In household appliances like washing machines, this bearing’s sealed design prevents contamination while handling moderate loads. Its temperature range covers most domestic usage scenarios comfortably.

Automotive vs Industrial: Applications of 6209-RS1/W64F Bearing
While equally at home in conveyor systems, this bearing shines in vehicle components where space is limited. The metric dimensions make it compatible with European and Asian equipment standards.

Perfect Fit for Automation: 6209-RS1/W64F Bearing
Robotic arms frequently use this bearing for its smooth operation and maintenance-free design. The solid oil lubrication means it won’t dry out during continuous operation cycles.
