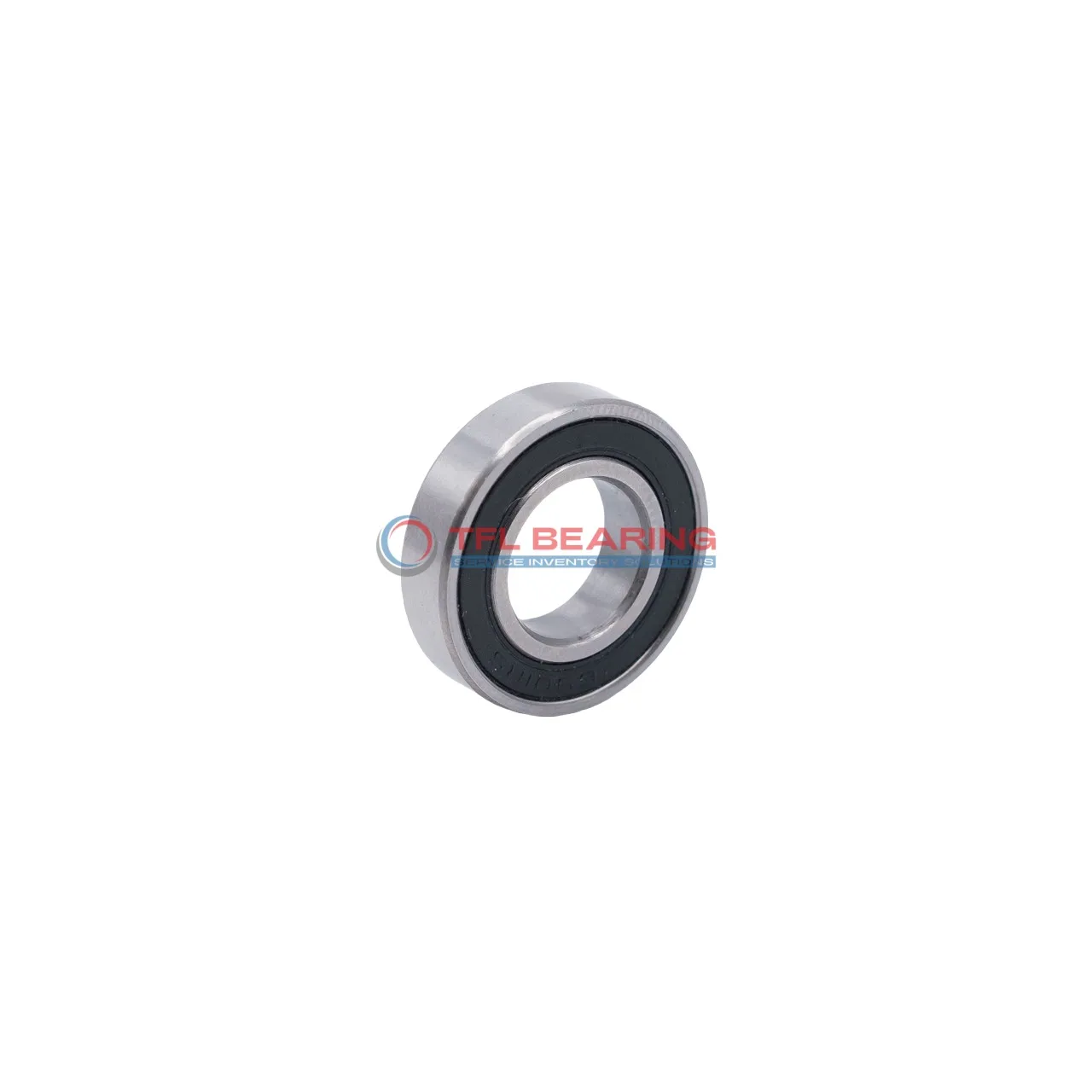

Single Row Deep Groove Ball Bearings 6202-2RSH/C3GJN

Single Row Deep Groove Ball Bearings 6202-2RSH/C3GJN

The 6202-2RSH/C3GJN is a compact single-row deep groove ball bearing, measuring 15mm by 35mm by 11mm. Made from durable chrome steel, it handles radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ensuring reliable performance.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for electric motors, pumps, or small machinery where space is limited.

Weighing just 45g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-2RSH/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 20000 rpm
  • Weight 45 g
  • price（$） 1.71
Single Row Deep Groove Ball Bearings 6202-2RSH/C3GJN dimension drawing
Download DWG Download PDF

Features

How Does 6202-2RSH/C3GJN Bearing Reduce Friction?

6202-2RSH/C3GJN Bearing features a single-row deep groove design, optimised for smooth radial load handling.
The sealed construction helps keep contaminants out, ensuring consistent performance over time.

With chrome steel rings and balls, it offers reliable operation and reduced friction.
Its dynamic radial load capacity of 1812 lbf makes it suitable for various applications.

The bearing can handle speeds up to 20,000 rpm, balancing efficiency and durability.
Its C3 radial clearance provides flexibility in different operating conditions.

Operating between -30°C to 120°C, it performs well in a range of environments.
The compact size (15 mm × 35 mm × 11 mm) makes it easy to integrate into different systems.

Application

Common Applications of 6202-2RSH/C3GJN Bearing
In industrial settings, 6202-2RSH/C3GJN Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 6202-2RSH/C3GJN Bearing Used?
You’ll often find 6202-2RSH/C3GJN Bearing in household appliances like washing machines and fans, thanks to its reliable performance and low maintenance needs. Its chrome steel construction also makes it durable for long-term use.

Ideal for Precision: 6202-2RSH/C3GJN Bearing
For small machinery and tools, 6202-2RSH/C3GJN Bearing offers a good balance of load capacity and speed. The sealed design is particularly useful in dusty or humid environments, extending the bearing’s lifespan.

Automotive vs Industrial: Applications of 6202-2RSH/C3GJN Bearing
In automotive applications, 6202-2RSH/C3GJN Bearing works well in alternators and small gearboxes, while in industrial settings, it’s suited for conveyor rollers. Its versatility makes it a popular choice across different sectors.

What Makes 6202-2RSH/C3GJN Bearing a Preferred Choice?
With a max speed of 20,000 rpm, 6202-2RSH/C3GJN Bearing is great for high-speed applications like small spindles or dental drills. The sealed design also means less frequent lubrication is needed, saving time and effort.
