Self Aligning Ball Bearings 2315 C/3

Self Aligning Ball Bearings 2315 C/3

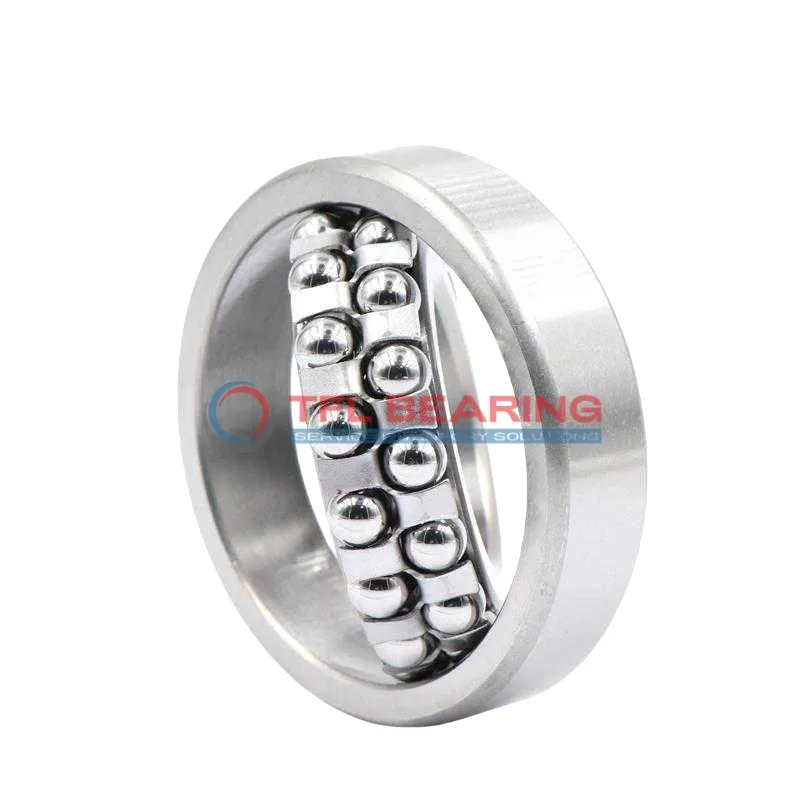

The 2315 C/3 is a self-aligning ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel for durability. Its double-row design efficiently handles radial loads up to 27900 lbf, making it suitable for heavy-duty applications.

This bearing spins smoothly at speeds up to 5600 RPM and operates well in temperatures from -30°C to 110°C. The open seal type allows for easy lubrication, while the stainless steel cage ensures reliable performance over time.

Its self-aligning feature helps compensate for minor misalignments, reducing wear and tear. Ideal for use in industrial machinery, conveyors, or agricultural equipment where radial loads and alignment adjustments are common.

Weighing 4.7kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2315 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 55 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 97.8 mm
  • Internal Diameter On Outer Ring 136.4 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 27900 lbf
  • Static Radial Load 9675 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 4.7 kg
  • Price（$） 271.33
Self Aligning Ball Bearings 2315 C/3 dimension drawing
Download DWG Download PDF

Features

How Is 2315 C/3 Bearing Engineered for Reliability?

2315 C/3 Bearing features a double-row design, providing excellent radial load capacity up to 27900 lbf.
Its chrome steel rings and balls ensure durability and resistance to wear in demanding conditions.

The stainless steel cage maintains proper ball alignment, reducing friction and extending service life.
With a maximum speed of 5,600 rpm, it offers reliable performance for various industrial applications.

2315 C/3 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 2315 C/3 Bearing
2315 C/3 Bearing is commonly used in heavy machinery like conveyors and mixers, where its double-row design handles radial loads efficiently. The open seal type makes it easy to lubricate, extending its service life in demanding conditions.

Where Is 2315 C/3 Bearing Used?
You’ll often find 2315 C/3 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.

Built for Heavy-Duty Use: 2315 C/3 Bearing
2315 C/3 Bearing excels in industrial fans and pumps, where its self-aligning feature compensates for minor misalignments. The stainless steel cage adds durability, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 2315 C/3 Bearing
In automotive systems, 2315 C/3 Bearing supports high radial loads in drivetrains, while its precision makes it suitable for aerospace auxiliary equipment. The wide temperature range ensures performance in diverse environments.

Perfect Fit for Automation: 2315 C/3 Bearing
2315 C/3 Bearing is ideal for robotic arms and automated assembly lines, where smooth rotation is essential. Its lubricated design reduces friction, ensuring consistent performance over time.
