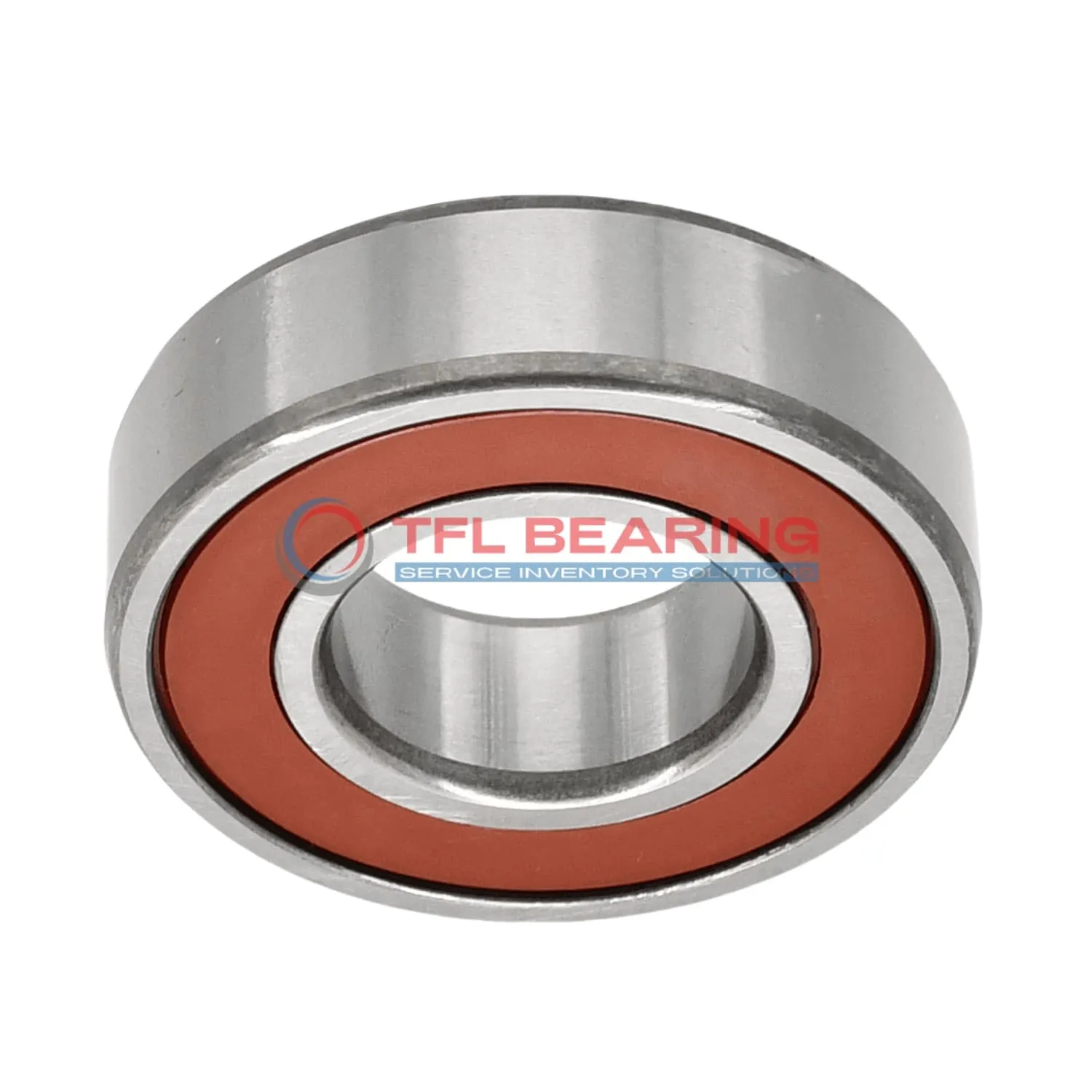

Single Row Deep Groove Ball Bearings 6204-2RSH/C2

Single Row Deep Groove Ball Bearings 6204-2RSH/C2

The 6204-2RSH/C2 is a single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2878 lbf and spins smoothly at speeds up to 15,000 RPM.

Sealed on both sides, it keeps dirt out and lubrication in, making it low-maintenance. The C2 radial clearance ensures reliable performance under various operating conditions.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. Ideal for electric motors, pumps, or small machinery where radial loads are common.

Weighing just 106g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-2RSH/C2
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C2
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Max Speed 15000 rpm
  • Weight 106 g
  • price（$） 2.43
Single Row Deep Groove Ball Bearings 6204-2RSH/C2 dimension drawing
Download DWG Download PDF

Features

Why Choose 6204-2RSH/C2 Bearing for Precision Tasks?

6204-2RSH/C2 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 2878 lbf, it handles demanding tasks with ease.
The bearing operates smoothly at speeds up to 15,000 rpm, making it suitable for high-speed machinery.

Application

Common Applications of 6204-2RSH/C2 Bearing
6204-2RSH/C2 Bearing works well in industrial settings, especially for conveyor belts and small electric motors where radial load support is needed. Its sealed design keeps out dust and debris, making it suitable for harsh environments.

In automotive applications, 6204-2RSH/C2 Bearing fits nicely into alternators and water pumps, providing smooth rotation and long service life. The metric sizing ensures compatibility with a variety of vehicle models.

For home appliances like washing machines, 6204-2RSH/C2 Bearing offers quiet and reliable performance. The chrome steel construction ensures durability even with frequent use.

In robotics, 6204-2RSH/C2 Bearing is often used in joint mechanisms due to its balanced load capacity and sealed protection. It helps maintain precision in automated movements.

Medical devices such as small pumps benefit from 6204-2RSH/C2 Bearing’s consistent performance and resistance to wear. The sealed design also helps maintain hygiene in sensitive environments.
