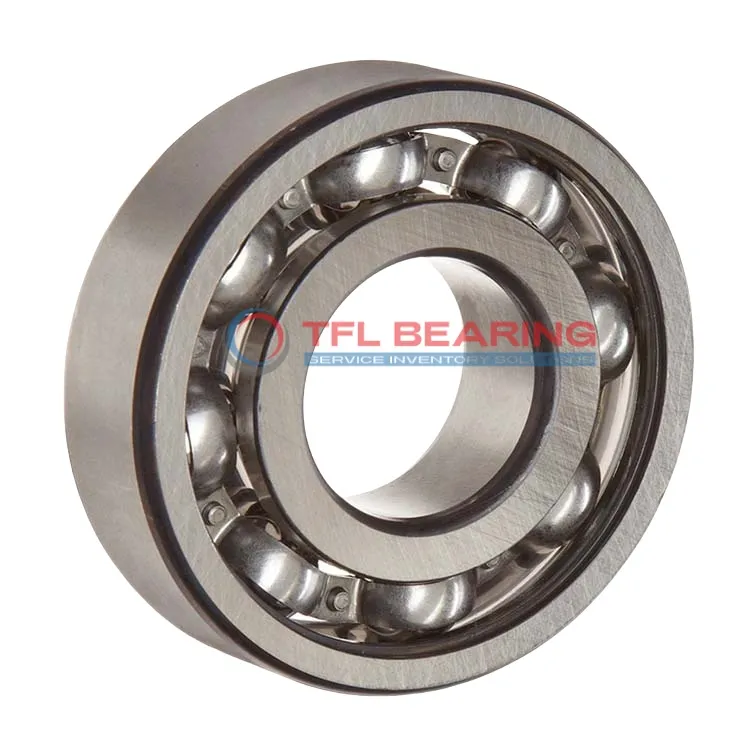

Stainless Steel Deep Groove Ball Bearings W 6002

Stainless Steel Deep Groove Ball Bearings W 6002

The W 6002 is a stainless steel deep groove ball bearing with a 15mm bore and 32mm outer diameter, designed for radial loads. It handles dynamic loads up to 1097 lbf and can spin at speeds up to 32,000 RPM.

Made entirely from stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C. Its open design allows for easy lubrication and maintenance.

This single-row bearing is interchangeable with SKF models, making it a versatile choice for replacements. Ideal for applications like small motors or pumps where reliability is key.

Weighing just 0.027kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6002
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1097 lbf
  • Static Radial Load 629 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 32000 rpm
  • Weight 0.027 kg
Stainless Steel Deep Groove Ball Bearings W 6002 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6002 Bearing for Precision Tasks?

W 6002 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its single-row design ensures smooth radial load handling, making it ideal for precision applications.

The bearing’s dynamic radial load capacity of 1097 lbf provides reliable performance under stress.
With a maximum speed of 32,000 rpm, it delivers efficiency without compromising durability.

W 6002 Bearing operates in temperatures from -30° to 120°C, suitable for varied environments.
Its compact size (15 mm×32 mm×9 mm) allows for easy integration into different machinery setups.

Application

Common Applications of W 6002 Bearing
W 6002 Bearing is widely used in industrial equipment like small electric motors and pumps, where its stainless steel construction resists corrosion. The open design allows for easy lubrication, extending service life in dusty environments.

In automotive applications, W 6002 Bearing fits well in components such as alternators and cooling fans. Its metric sizing ensures compatibility with various vehicle models, while the radial load capacity handles typical vibrations.

For home appliances, W 6002 Bearing works smoothly in devices like food processors and washing machines. The stainless steel material prevents rust from moisture exposure, making it reliable for daily use.

Medical devices benefit from W 6002 Bearing’s precision in equipment like dental handpieces. The low-maintenance design and hygienic materials suit sterile environments perfectly.

Automation systems often incorporate W 6002 Bearing in conveyor rollers and small robotic joints. Its high-speed capability and consistent performance support efficient production lines.
