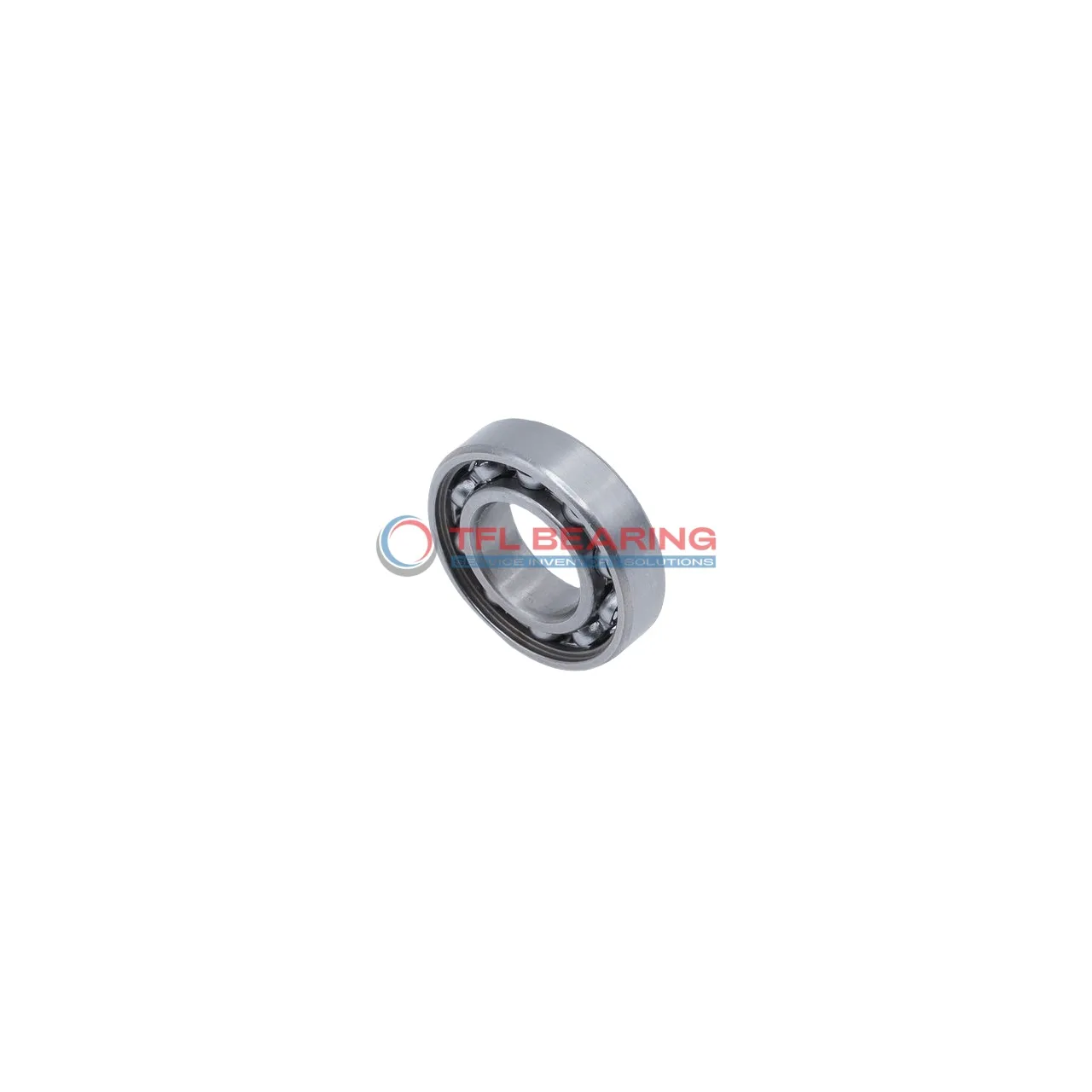

Stainless Steel Deep Groove Ball Bearings W 6302

Stainless Steel Deep Groove Ball Bearings W 6302

The W 6302 is a stainless steel deep groove ball bearing with a 15mm bore and 42mm outer diameter, designed for radial loads. It handles dynamic loads up to 2237 lbf and spins smoothly at speeds up to 26000 RPM.

Its open design allows for easy lubrication, while the all-stainless steel construction ensures corrosion resistance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing just 0.077kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6302
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2237 lbf
  • Static Radial Load 1214 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 26000 rpm
  • Weight 0.077 kg
  • Price（$） 11.64
Stainless Steel Deep Groove Ball Bearings W 6302 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6302 Bearing for Precision Tasks?

W 6302 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its single-row design ensures smooth radial load handling, with a dynamic radial load capacity of 2237 lbf.

The open seal type allows for easy maintenance, while the P0 tolerance class guarantees precision.
With a maximum speed of 26,000 rpm, it delivers reliable performance in high-speed applications.

The stainless steel cage keeps the balls aligned, reducing friction and extending service life.
Its compact size (15 mm×42 mm×13 mm) makes it ideal for space-constrained installations.

Application

Industrial Uses of W 6302 Bearing
W 6302 Bearing is commonly used in conveyor systems and small electric motors, where its stainless steel construction resists corrosion in humid environments. The open design allows for easy lubrication, extending its service life in continuous operation.

What Makes W 6302 Bearing a Preferred Choice?
In food processing equipment, W 6302 Bearing stands out due to its hygienic stainless steel build, which meets industry cleanliness standards. Its compact size fits neatly into tight spaces without compromising load capacity.

Built for Versatility: W 6302 Bearing
You’ll find W 6302 Bearing in household appliances like washing machines, where it handles radial loads quietly and efficiently. The P0 tolerance ensures consistent performance over time, even with daily use.

Automotive vs Aerospace: Applications of W 6302 Bearing
While W 6302 Bearing supports auxiliary car components like alternators, its lightweight design also suits drone propulsion systems. The high-speed capability (26,000 rpm) makes it adaptable across different industries.

Perfect Fit for Automation: W 6302 Bearing
W 6302 Bearing works well in robotic arms and 3D printers, offering smooth rotation with minimal maintenance. The CN clearance provides a balance between precision and durability for repetitive tasks.
