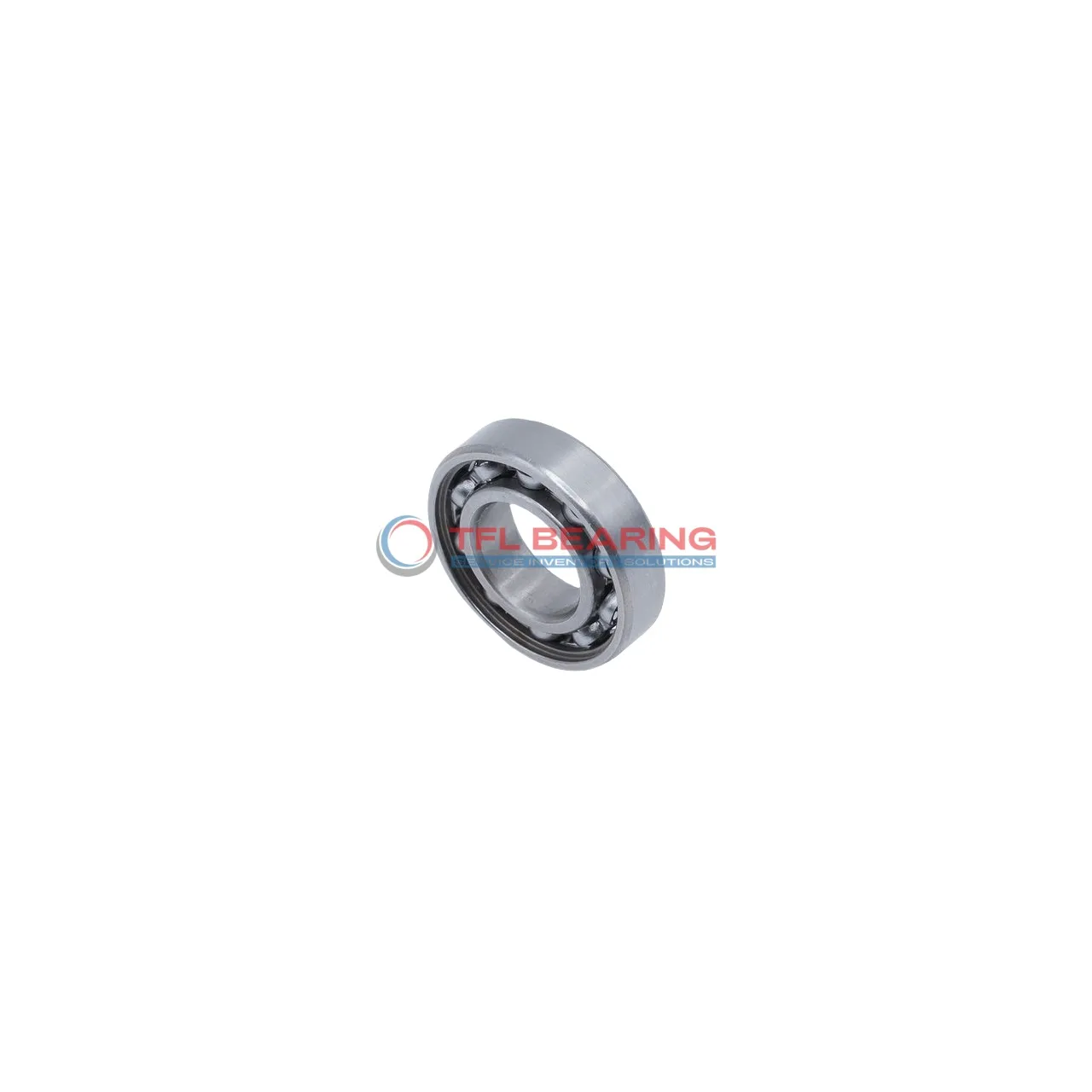

Stainless Steel Deep Groove Ball Bearings W 61703

Stainless Steel Deep Groove Ball Bearings W 61703

The W 61703 is a compact stainless steel deep groove ball bearing, measuring 17mm by 23mm by 4mm. It handles radial loads up to 126 lbf and spins smoothly at speeds up to 38,000 RPM.

Made entirely from stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C. Its open design allows for easy lubrication when needed.

This single-row bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for small machinery or instruments where space is limited.

Weighing just 0.0035kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61703
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 23 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 126 lbf
  • Static Radial Load 76 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 38000 rpm
  • Weight 0.0035 kg
Stainless Steel Deep Groove Ball Bearings W 61703 dimension drawing
Download DWG Download PDF

Features

Why Choose W 61703 Bearing for Precision Tasks?

W 61703 Bearing is crafted from stainless steel, offering excellent corrosion resistance and durability.
Its compact size of 17 mm×23 mm×4 mm makes it ideal for applications where space is limited.

The single-row design ensures smooth radial load handling, with a dynamic radial load capacity of 126 lbf.
With a maximum speed of 38,000 rpm, it delivers reliable performance in high-speed operations.

W 61703 Bearing operates efficiently within a temperature range of -30° to 120 °C.
Its open seal type allows for easy maintenance and reduces friction during use.

Application

Industrial Uses of W 61703 Bearing
W 61703 Bearing is commonly used in small industrial equipment like compact pumps and electric motors, where its stainless steel construction resists corrosion. The slim 4mm width makes it ideal for space-constrained designs.

Where Is W 61703 Bearing Used?
In automotive applications, W 61703 Bearing fits well in small actuators or sensors due to its lightweight and radial load capacity. Its metric sizing ensures compatibility with precision components.

Perfect Fit for Automation: W 61703 Bearing
This bearing works smoothly in robotic joints and 3D printer assemblies, where low friction and durability are key. The open seal design allows for easy lubrication adjustments.

Medical vs Industrial: Where W 61703 Bearing Excels
W 61703 Bearing suits medical devices like dental tools, offering quiet operation and hygiene-friendly materials. In contrast, it also handles industrial lab equipment with consistent reliability.

Essential Roles of W 61703 Bearing
For home appliances like cooling fans, W 61703 Bearing provides long-lasting performance with minimal maintenance. Its high-speed capability (38,000 rpm) ensures efficient operation in daily use.
