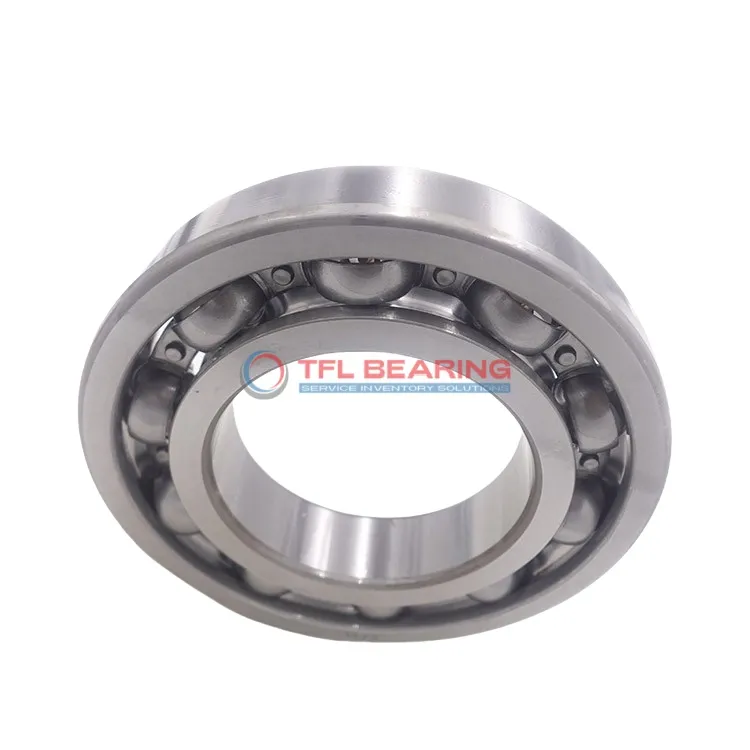

Single Row Deep Groove Ball Bearings 61830 MA

Single Row Deep Groove Ball Bearings 61830 MA

The 61830 MA is a single-row deep groove ball bearing with a 150mm bore and 190mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 10971 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is compatible with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.35kg, it offers a balance of strength and lightness. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61830 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 20 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 10971 lbf
  • Static Radial Load 13713 lbf
  • Max Speed 4300 rpm
  • Weight 1.35 kg
  • price（$） 258.687
Single Row Deep Groove Ball Bearings 61830 MA dimension drawing
Download DWG Download PDF

Features

Core Advantages of 61830 MA Bearing

61830 MA Bearing features a single-row deep groove design, optimised for radial load handling with a capacity of 10971 lbf.
Its chrome steel construction ensures durability and resistance to wear in various operating conditions.

The stainless steel cage maintains ball alignment, enhancing smooth rotation and reducing friction.
With a maximum speed of 4,300 rpm, it balances performance and longevity in demanding applications.

61830 MA Bearing operates efficiently within a temperature range of -30° to 120°C, suitable for diverse environments.
Its precise P6 tolerance class guarantees consistent performance in high-precision machinery.

Application

Key Fields for 61830 MA Bearing
In industrial settings, 61830 MA Bearing is commonly used in machine tools and conveyor systems, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending service life in demanding environments.

Where Is 61830 MA Bearing Used?
You’ll often find 61830 MA Bearing in automotive applications like electric motors and pumps, thanks to its reliable performance under radial loads. Its metric sizing makes it a versatile fit for various vehicle designs.

Built for Heavy-Duty Use: 61830 MA Bearing
For automation equipment, 61830 MA Bearing handles the precise movements of robotic arms and assembly lines. The chrome steel construction provides durability, even in high-speed scenarios.

Medical vs Industrial: Where 61830 MA Bearing Excels
In medical devices like diagnostic scanners, 61830 MA Bearing offers quiet and consistent performance. Meanwhile, its stainless steel cage makes it equally suitable for industrial machinery requiring long-term reliability.
