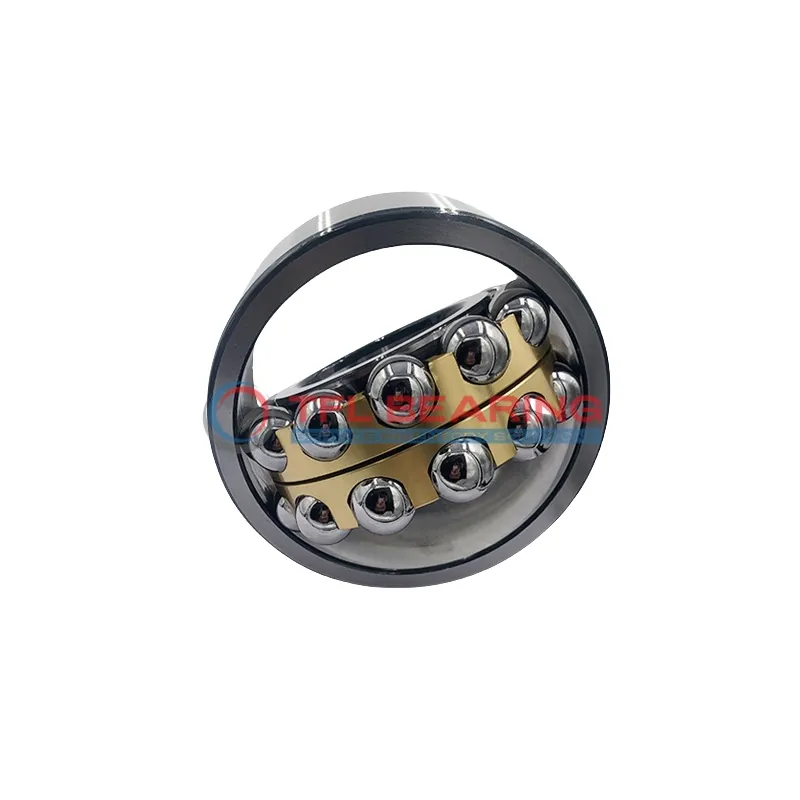

Self Aligning Ball Bearings 1207L1C3

Self Aligning Ball Bearings 1207L1C3

The 1207L1C3 is a self-aligning ball bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4275 lbf and spins smoothly at speeds up to 13000 RPM.

Its double-row design allows for slight misalignment, while the brass cage ensures durability and quiet operation. The bearing comes pre-lubricated and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where alignment flexibility is needed.

Weighing 0.32kg, it’s a compact yet robust option. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1207L1C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 47 mm
  • Internal Diameter On Outer Ring 60.9 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 4275 lbf
  • Static Radial Load 1350 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 0.32 kg
  • Price（$） 33.14
Self Aligning Ball Bearings 1207L1C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 1207L1C3 Bearing for Precision Tasks?

1207L1C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 4275 lbf makes it suitable for demanding applications.
The brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a maximum speed of 13,000 rpm, it offers reliable performance in high-speed environments.

Application

Industrial Uses of 1207L1C3 Bearing
1207L1C3 Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The double-row design offers reliable radial load support, making it suitable for continuous operation.

In automotive applications, 1207L1C3 Bearing fits well in gearboxes and wheel hubs, ensuring smooth performance even under varying loads. Its brass cage enhances durability, reducing wear in high-speed scenarios.

For automation equipment, 1207L1C3 Bearing’s open design allows easy lubrication, maintaining efficiency in robotic arms and assembly lines. The C3 radial clearance provides flexibility in temperature fluctuations.

Where Is 1207L1C3 Bearing Used?
You’ll often find 1207L1C3 Bearing in household appliances like washing machines, where its self-aligning capability handles vibrations effectively. The chrome steel construction ensures longevity in daily use.

In medical devices, 1207L1C3 Bearing supports precise movements in diagnostic equipment. Its lubricated design minimises friction, crucial for quiet and consistent operation.
