Single Row Deep Groove Ball Bearings 61960 MA

Single Row Deep Groove Ball Bearings 61960 MA

The 61960 MA is a single-row deep groove ball bearing with a 300mm bore and 420mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 60698 lbf and operates smoothly at speeds up to 2400 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 24.4kg, it’s built for robust performance. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61960 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 420 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 56 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 60698 lbf
  • Static Radial Load 84303 lbf
  • Max Speed 2400 rpm
  • Weight 24.4 kg
  • price（$） 1236.375

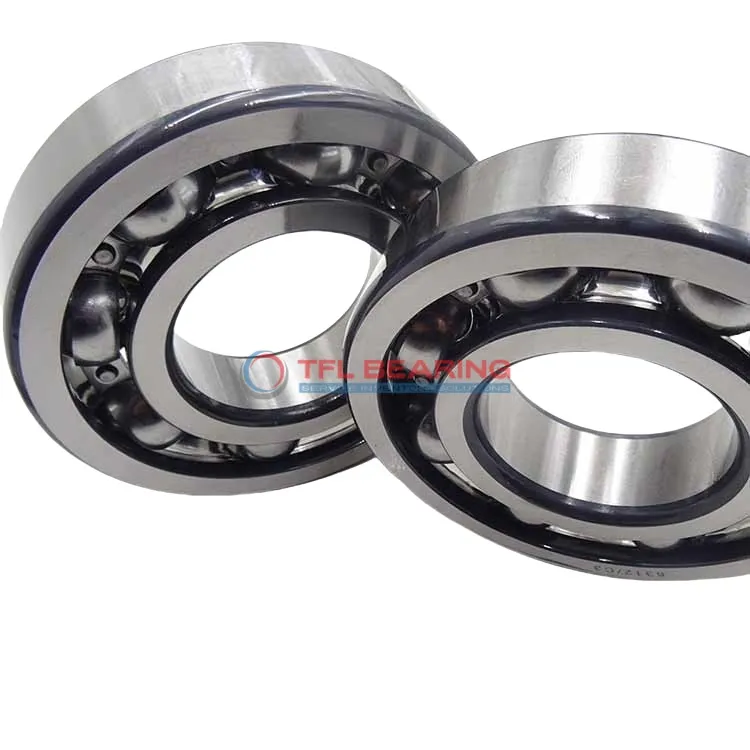

Single Row Deep Groove Ball Bearings 61960 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61960 MA Bearing

61960 MA Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 60698 lbf.
Its stainless steel cage ensures smooth operation and reduces wear, even at high speeds.

The single row deep groove design of 61960 MA Bearing provides reliable performance in various applications.
With a maximum speed of 2,400 rpm, it balances efficiency and durability.

61960 MA Bearing operates in temperatures from -30° to 120°C, making it suitable for diverse environments.
Its P6 tolerance class ensures precision and consistent performance over time.

Application

Industrial Uses of 61960 MA Bearing
The 61960 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its high radial load capacity ensures reliable performance. Its open design allows for easy lubrication, making it suitable for continuous operation in demanding environments.

In wind turbine applications, 61960 MA Bearing supports the main shaft, handling significant radial loads while maintaining smooth rotation. The P6 tolerance class ensures precise alignment, which is crucial for efficient energy generation.

For conveyor systems in mining and construction, 61960 MA Bearing provides durability and stability under heavy loads. Its chrome steel construction offers excellent resistance to wear, extending the bearing’s service life in harsh conditions.

Automotive vs Aerospace: Applications of 61960 MA Bearing
In automotive manufacturing, 61960 MA Bearing is often found in large gearboxes and drivetrains, where its robust design handles high radial loads. The metric sizing makes it compatible with various heavy vehicle models.

In aerospace applications, 61960 MA Bearing is used in ground support equipment, such as aircraft tugs and loading systems. Its ability to operate within a wide temperature range ensures reliability in different weather conditions.

What Makes 61960 MA Bearing a Preferred Choice?
The 61960 MA Bearing’s stainless steel cage enhances its durability, making it a reliable option for applications requiring long service intervals. Its high dynamic radial load capacity also makes it suitable for heavy machinery.

With a maximum speed of 2,400 rpm, 61960 MA Bearing is ideal for equipment that operates at moderate speeds. The CN radial clearance provides a good balance between performance and ease of installation.
