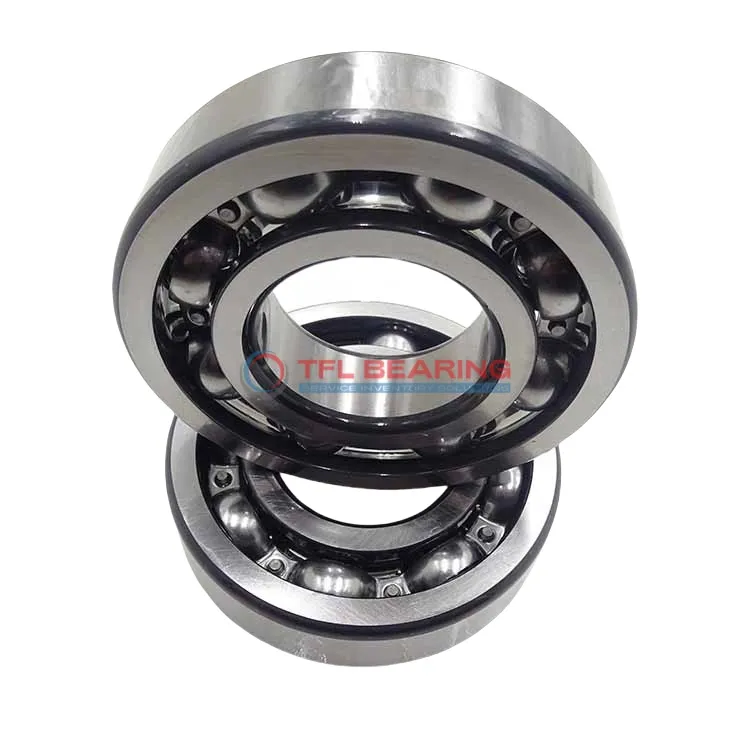

Single Row Deep Groove Ball Bearings 61952 MA

Single Row Deep Groove Ball Bearings 61952 MA

The 61952 MA is a single-row deep groove ball bearing with a 260mm bore and 360mm outer diameter, crafted from sturdy chrome steel for reliable performance. It manages radial loads up to 47659 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is compatible with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are predominant.

Weighing 14.4kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61952 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 46 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 47659 lbf
  • Static Radial Load 60698 lbf
  • Max Speed 3000 rpm
  • Weight 14.4 kg
  • price（$） 811.044
Single Row Deep Groove Ball Bearings 61952 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61952 MA Bearing

61952 MA Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 47,659 lbf.
Its stainless steel cage ensures smooth operation and reduces wear, enhancing durability.

The P6 tolerance class of 61952 MA Bearing provides precise performance for demanding applications.
It operates efficiently within a temperature range of -30° to 120°C, suitable for various environments.

With a maximum speed of 3,000 rpm, 61952 MA Bearing balances high performance and reliability.
Its open design allows for easy lubrication and maintenance, reducing operational downtime.

The 61952 MA Bearing’s dimensions (260 mm×360 mm×46 mm) make it ideal for heavy-duty machinery.
Its compliance with RoHS and REACH standards ensures environmental and safety considerations are met.

Application

Industrial Uses of 61952 MA Bearing
61952 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads. The open seal type ensures easy access for lubrication, extending its service life in demanding environments.

Where Is 61952 MA Bearing Used?
You’ll often find 61952 MA Bearing in wind turbine systems, where its high load capacity and reliability are essential for smooth operation. Its metric dimensions make it a versatile choice for European-designed equipment.

Built for Heavy-Duty Use: 61952 MA Bearing
In mining equipment, 61952 MA Bearing excels due to its chrome steel construction, which resists wear even under constant stress. The stainless steel cage adds durability, making it suitable for harsh conditions.

Automotive vs Aerospace: Applications of 61952 MA Bearing
While 61952 MA Bearing isn’t typically used in aerospace due to its size, it’s ideal for large automotive applications like truck transmissions. Its high static radial load capacity ensures longevity in heavy vehicles.

Perfect Fit for Automation: 61952 MA Bearing
For automated production lines, 61952 MA Bearing provides reliable performance in conveyor systems and robotic arms. Its P6 tolerance class ensures precision, which is crucial for consistent operation.
