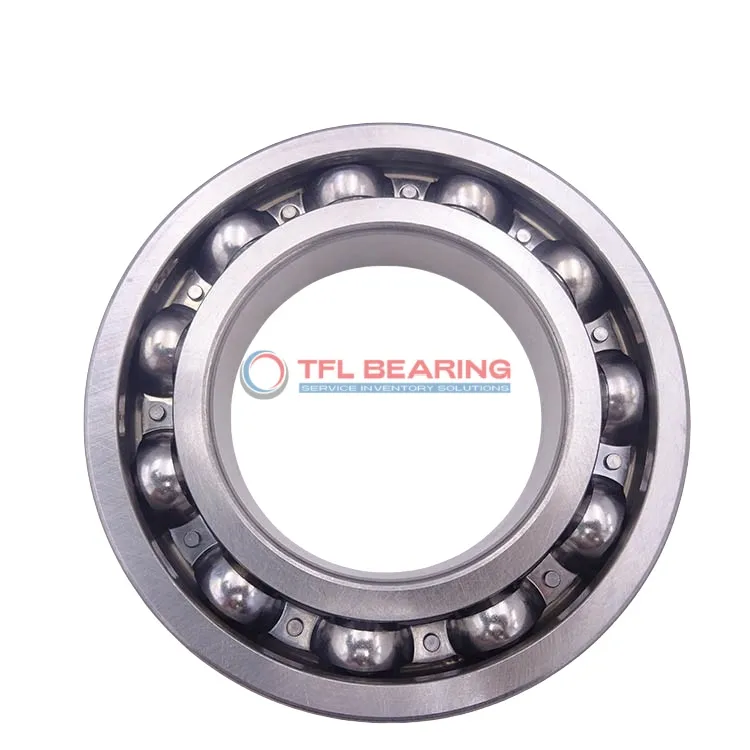

Single Row Deep Groove Ball Bearings 61922

Single Row Deep Groove Ball Bearings 61922

The 61922 is a single-row deep groove ball bearing with a 110mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 9802 lbf and operates smoothly at speeds up to 5600 RPM.

Its open design allows for easy lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 0.9kg, it offers a balance of strength and manageability. Compliant with RoHS and REACH standards, it’s a safe and dependable option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61922
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 9802 lbf
  • Static Radial Load 10116 lbf
  • Max Speed 5600 rpm
  • Weight 0.9 kg
  • price（$） 143.406
Single Row Deep Groove Ball Bearings 61922 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61922 Bearing

61922 Bearing is crafted with chrome steel rings and balls, offering strong radial load capacity up to 9802 lbf.
Its stainless steel cage ensures smooth operation and reduces wear, enhancing durability.

The P6 tolerance class of 61922 Bearing provides precise performance for demanding applications.
With a maximum speed of 5,600 rpm, it balances efficiency and reliability.

61922 Bearing operates effectively in temperatures ranging from -30° to 120°C.
Its open design simplifies maintenance while ensuring consistent performance.

Application

Industrial Uses of 61922 Bearing
The 61922 Bearing is commonly used in industrial machinery like pumps and electric motors, where its single-row design handles radial loads efficiently. Its open seal type allows for easy lubrication, extending service life in demanding conditions.

What Makes 61922 Bearing a Preferred Choice?
With a chrome steel construction, 61922 Bearing offers reliable performance in automotive applications such as wheel hubs and transmissions. The P6 tolerance ensures precise fitment, reducing vibration and noise during operation.

Built for Heavy-Duty Use: 61922 Bearing
In automation systems, 61922 Bearing supports robotic arms and conveyor belts, thanks to its high dynamic load capacity. The stainless steel cage adds durability, making it suitable for continuous operation.

Medical vs Industrial: Where 61922 Bearing Excels
While 61922 Bearing performs well in industrial gearboxes, its precision also benefits medical devices like centrifuges. The wide temperature range ensures stability in both sterile labs and factory floors.

Perfect Fit for Automation: 61922 Bearing
For consumer electronics like high-end printers, 61922 Bearing provides smooth rotation with minimal maintenance. Its metric sizing makes it a versatile option for European and Asian equipment manufacturers.
