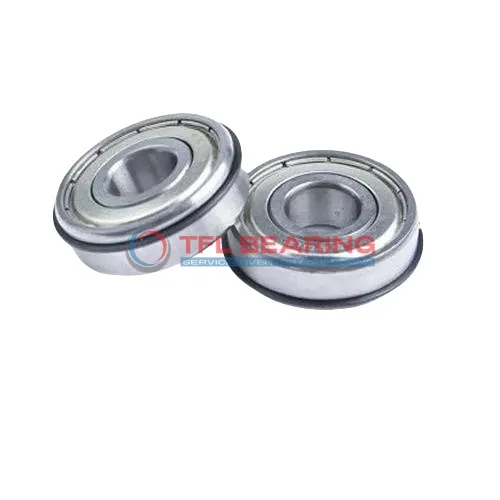

Snap Ring Groove Ball Bearings 6024-2ZNR

Snap Ring Groove Ball Bearings 6024-2ZNR

The 6024-2ZNR is a shielded ball bearing with a 120mm bore and 180mm outer diameter, designed for radial loads. It handles dynamic loads up to 19873 lbf and operates smoothly at speeds up to 4800 RPM.

Made from durable chrome steel, it features a snap ring groove on the outer ring for secure mounting. The shielded design helps keep contaminants out while maintaining easy maintenance.

This bearing is suitable for temperatures from -30°C to 120°C, making it versatile for various environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for industrial machinery or automotive applications where radial load support and secure mounting are needed. Weighing 2100g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6024-2ZNR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Outside Diameter Of Snap Ring 192.9 mm
  • Width Of Snap Ring 3.1 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 19873 lbf
  • Static Radial Load 17985 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 2100 g
  • Price（$） 77.25
Snap Ring Groove Ball Bearings 6024-2ZNR dimension drawing
Download DWG Download PDF

Features

How Does 6024-2ZNR Bearing Reduce Friction?

6024-2ZNR Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps keep contaminants out, maintaining performance over time.
The snap ring groove on the outer ring provides secure positioning, reducing unnecessary movement.
With a dynamic radial load capacity of 19873 lbf, it handles demanding radial loads efficiently.

Built for Reliability: 6024-2ZNR Bearing

6024-2ZNR Bearing is constructed with a single-row design, offering consistent performance in radial applications.
The chrome steel cage keeps the balls aligned, enhancing durability and reducing wear.
Its ABEC 1 tolerance class ensures reliable operation for general industrial use.
Operating within a temperature range of -30° to 120°C, it adapts to various working conditions.

Why Choose 6024-2ZNR Bearing for Precision Tasks?

6024-2ZNR Bearing’s shielded design protects against dust and debris, maintaining precision in sensitive applications.
The snap ring groove ensures easy installation and secure placement in assemblies.
With a static radial load capacity of 17985 lbf, it provides stable support for precision machinery.
Its maximum speed of 4,800 rpm balances performance and reliability.

Application

Common Applications of 6024-2ZNR Bearing
6024-2ZNR Bearing is widely used in industrial machinery, such as conveyor systems and gearboxes, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting, making it ideal for applications requiring easy installation and removal.

In automotive applications, 6024-2ZNR Bearing supports components like alternators and pumps, thanks to its radial load capacity and durability. The chrome steel construction ensures long service life even in demanding conditions.

For automation equipment, 6024-2ZNR Bearing provides reliable performance in robotic arms and assembly lines. Its ABEC 1 tolerance class offers sufficient precision for most industrial automation needs.

In household appliances, 6024-2ZNR Bearing can be found in washing machines and fans, where its shielded design helps reduce maintenance. The snap ring groove simplifies assembly, making it a cost-effective choice for manufacturers.
