Super Precision Angular Contact Ball Bearings 71814 ACD/P4DGC

Brand: TFL Bearing Interchangeable: SKF 71814 ACD/P4DGC 70 mm × 90 mm × 20 mm Metric Open
Part number: 71814 ACD/P4DGC
Super Precision Angular Contact Ball Bearings 71814 ACD/P4DGC
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia70 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.004mm to 0
Width20 mm
Width Tolerance-0.2mm to 0
Ball Dia5.556 mm
Performance
PreloadModerate / Class C
Dynamic Radial Load4,770 lbf
Static Radial Load6,750 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty31
Contact Angle25°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.27 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

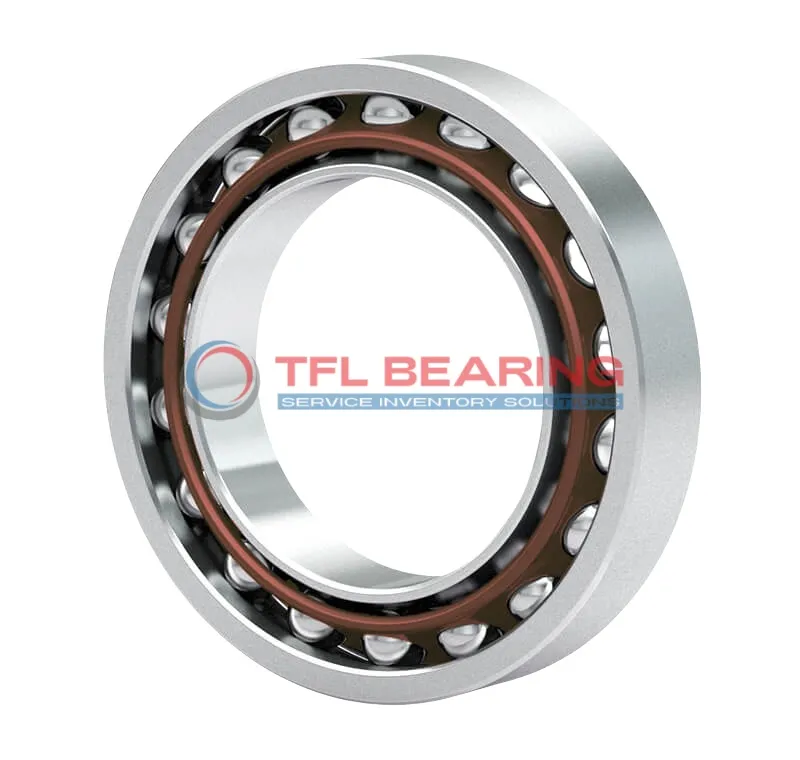

Dimension drawing · click to enlarge

Description

The 71814 ACD/P4DGC is a super precision angular contact ball bearing with a 70mm bore and 90mm outer diameter, crafted from high-quality chrome steel. Its 25° contact angle and moderate preload ensure smooth operation under radial loads up to 4770 lbf.

This bearing spins at speeds up to 28,000 RPM, thanks to its phenolic cage and open design for easy lubrication. It performs reliably in temperatures ranging from -30°C to 110°C.

The universal matching feature allows flexible arrangements like back-to-back or face-to-face, making it versatile for precision applications. Ideal for machine tools or high-speed spindles where accuracy is key.

Weighing just 0.27kg, it’s lightweight yet robust, and comes as a matched set of two bearings. Compliant with P4 tolerance standards for exceptional precision.

Features

How Does 71814 ACD/P4DGC Bearing Reduce Friction?

71814 ACD/P4DGC Bearing features a 25° contact angle, optimised for smooth angular contact load distribution.
The chrome steel rings and balls ensure minimal friction, enhancing operational efficiency.

With a phenolic cage, 71814 ACD/P4DGC Bearing maintains ball alignment, reducing wear during high-speed rotation.
Its dynamic radial load capacity of 4770 lbf supports reliable performance under stress.

The universal matching design allows flexible arrangement in back-to-back, face-to-face, or tandem configurations.
This adaptability makes 71814 ACD/P4DGC Bearing suitable for precision applications requiring consistent performance.

Lubricated for longevity, it operates smoothly at speeds up to 28,000 rpm.
The P4 tolerance class ensures high precision, meeting demanding industrial standards.

Application

Practical Applications of 71814 ACD/P4DGC Bearing
In industrial settings, 71814 ACD/P4DGC Bearing is commonly used in high-speed spindles and machine tools, where its precision angular contact design ensures accurate performance. The universal matching feature allows for flexible arrangements, making it suitable for various configurations.

How Does 71814 ACD/P4DGC Bearing Improve Performance?
For automotive applications, 71814 ACD/P4DGC Bearing enhances gearbox efficiency with its moderate preload and high-speed capabilities. The chrome steel construction provides durability, while the phenolic cage reduces friction in demanding conditions.

Built for Heavy-Duty Use: 71814 ACD/P4DGC Bearing
In automation and robotics, 71814 ACD/P4DGC Bearing supports precise movements in robotic arms and CNC machines. Its P4 tolerance class ensures reliable operation, even under continuous use.

Medical vs Industrial: Where 71814 ACD/P4DGC Bearing Excels
For medical imaging devices, 71814 ACD/P4DGC Bearing offers smooth rotation and low noise, crucial for sensitive equipment. In contrast, industrial applications benefit from its high load capacity and thermal stability.

Essential Roles of 71814 ACD/P4DGC Bearing
In consumer electronics like high-end printers, 71814 ACD/P4DGC Bearing provides quiet and efficient operation. The lubricated design ensures long service life, reducing maintenance needs.
