Single Row Deep Groove Ball Bearings 61908-2RS1/W64

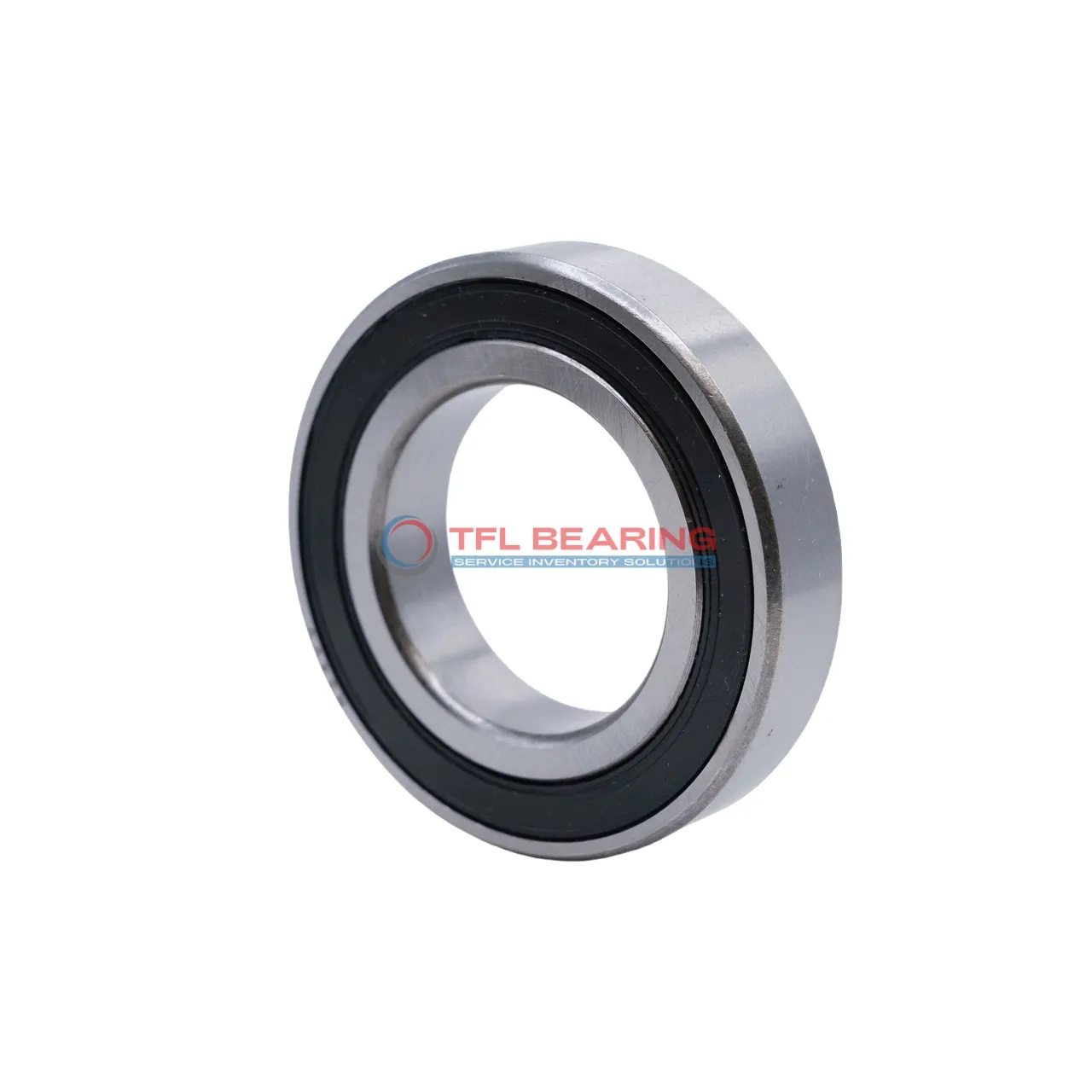

Single Row Deep Groove Ball Bearings 61908-2RS1/W64

The 61908-2RS1/W64 is a compact single-row deep groove ball bearing, measuring 40mm by 62mm by 12mm. Made from sturdy chrome steel, it’s designed for radial loads and sealed to keep dirt out.

With a dynamic radial load capacity of 3102 lbf, it handles moderate forces smoothly. It spins up to 14,000 RPM, making it suitable for high-speed applications.

The sealed design and solid oil lubrication ensure low maintenance, while the chrome steel cage adds durability. It operates reliably in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, ideal for electric motors or small machinery. Weighing just 0.11kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61908-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3102 lbf
  • Static Radial Load 2248 lbf
  • Max Speed 14000 rpm
  • Weight 0.11 kg
  • price（$） 33.534
Single Row Deep Groove Ball Bearings 61908-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

How Does 61908-2RS1/W64 Bearing Reduce Friction?

61908-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
Its chrome steel construction enhances durability while maintaining consistent performance under radial loads.

The single-row deep groove design allows for efficient load distribution, minimising wear over time.
With a maximum speed of 14,000 rpm, it balances high-speed capability and reliability.

Its ABEC 1 tolerance and ISO P0 classification ensure precision in various applications.
The temperature range of -30°C to 120°C makes it suitable for diverse operating conditions.

Application

Common Applications of 61908-2RS1/W64 Bearing
This bearing is widely used in industrial machinery, such as electric motors and pumps, where its sealed design keeps contaminants out. The solid oil lubrication ensures long service life even in dusty environments.

In automotive applications, 61908-2RS1/W64 Bearing fits well in alternators and cooling fans, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances like washing machines, 61908-2RS1/W64 Bearing offers quiet and smooth operation. The chrome steel construction ensures durability under everyday use.

Automation systems benefit from 61908-2RS1/W64 Bearing’s consistent performance in robotic arms. The sealed design is particularly useful in environments where cleanliness is important.
