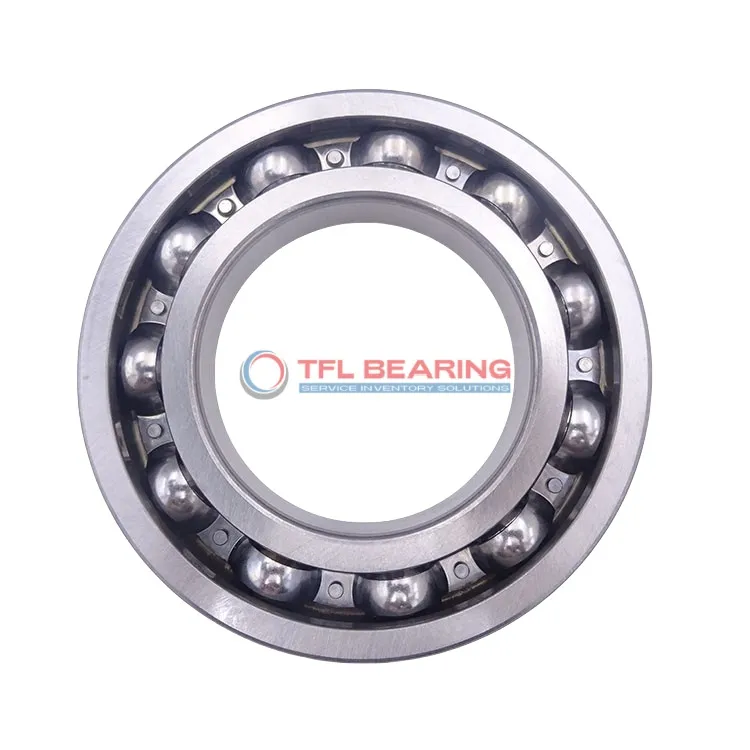

Single Row Deep Groove Ball Bearings 61824

Single Row Deep Groove Ball Bearings 61824

The 61824 is a single-row deep groove ball bearing with a 120mm bore and 150mm outer diameter, crafted from sturdy chrome steel for durability. It manages radial loads up to 6542 lbf and operates smoothly at speeds up to 5300 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances longevity. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads are predominant.

Weighing 0.51kg, it balances strength and lightweight design. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61824
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 16 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 6295 lbf
  • Max Speed 5300 rpm
  • Weight 0.51 kg
  • price（$） 107.793
Single Row Deep Groove Ball Bearings 61824 dimension drawing
Download DWG Download PDF

Features

Performance Features of 61824 Bearing

61824 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 6542 lbf.
Its single row deep groove design ensures smooth operation and efficient load distribution.

The stainless steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 5,300 rpm, it provides reliable performance in various applications.

61824 Bearing operates in temperatures from -30° to 120°C, suitable for diverse environments.
Its precise P6 tolerance class ensures consistent performance and durability.

Application

Common Applications of 61824 Bearing
In industrial settings, 61824 Bearing is widely used in conveyor systems and machine tools, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending its service life in demanding environments.

For automotive applications, 61824 Bearing fits well in electric motors and gearboxes, providing reliable performance under continuous use. Its metric dimensions make it compatible with a variety of vehicle models, both domestic and international.

In medical devices, 61824 Bearing’s chrome steel construction offers durability for equipment like centrifuges and lab instruments. The stainless steel cage adds an extra layer of resistance to wear, ensuring consistent performance over time.

Where Is 61824 Bearing Used?
You’ll often find 61824 Bearing in household appliances like washing machines and fans, where its compact size and radial load handling are ideal. The temperature range also makes it suitable for both hot and cold environments.

In automation systems, 61824 Bearing supports robotic arms and assembly line equipment, thanks to its precision and reliability. The P6 tolerance class ensures consistent performance in high-precision applications.
