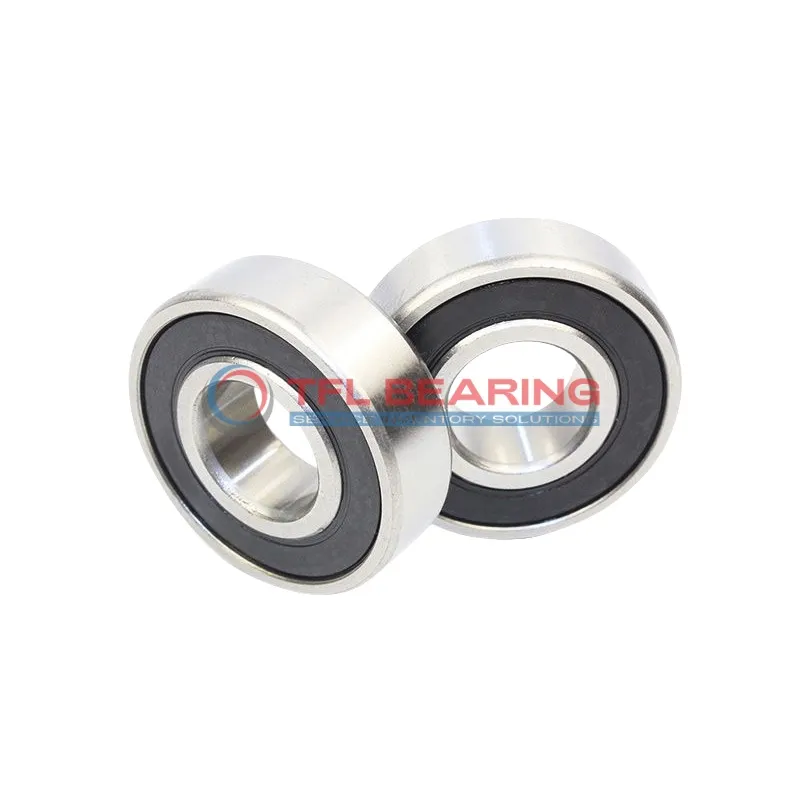

Single Row Deep Groove Ball Bearings 607-2RSH/W64F

Single Row Deep Groove Ball Bearings 607-2RSH/W64F

The 607-2RSH/W64F is a compact single-row deep groove ball bearing, measuring 7mm in bore and 19mm in outer diameter, with a width of just 6mm. Made from chrome steel, it offers reliable performance for radial loads up to 447 lbf.

Its sealed design and solid oil lubrication keep it running smoothly at speeds up to 36,000 RPM, even in temperatures from -30°C to 120°C. The bearing is built to last with a chrome steel cage for added durability.

This model is interchangeable with SKF bearings, making replacements straightforward. It’s ideal for small machinery, electric motors, or appliances where space is limited but performance is key.

Weighing only 7.8g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 607-2RSH/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 161 lbf
  • Max Speed 36000 rpm
  • Weight 7.8 g
Single Row Deep Groove Ball Bearings 607-2RSH/W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 607-2RSH/W64F Bearing

607-2RSH/W64F Bearing is designed for radial loads, with a dynamic radial load capacity of 447 lbf.

Its sealed construction keeps contaminants out, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the solid oil lubrication reduces maintenance needs.

With a maximum speed of 36,000 rpm, it offers reliable performance for high-speed applications.

Application

Where Is 607-2RSH/W64F Bearing Used?

607-2RSH/W64F Bearing works well in small electric motors, such as those found in household appliances or power tools. Its sealed design keeps dust out, ensuring smooth operation over time.

In automation systems, 607-2RSH/W64F Bearing helps with precise movements in devices like 3D printers. The solid oil lubrication means less maintenance is needed, which is handy for continuous use.

You’ll also find 607-2RSH/W64F Bearing in medical devices like dental handpieces, where its compact size and reliability are key. The chrome steel construction handles frequent sterilisation without wear issues.
