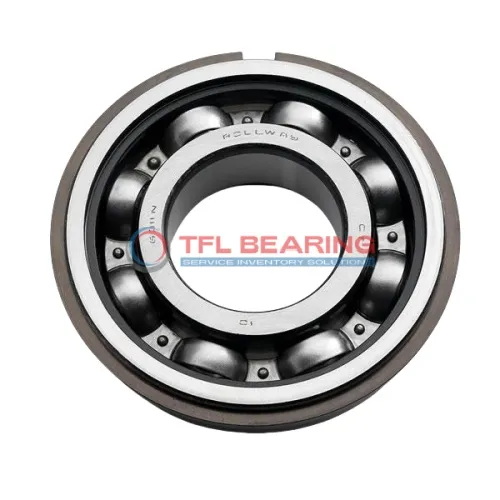

Snap Ring Groove Ball Bearings 6208 NR/C3W64

Snap Ring Groove Ball Bearings 6208 NR/C3W64

The 6208 NR/C3W64 is a snap ring groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7306 lbf and operates smoothly at speeds up to 11000 RPM.

Its open design with a snap ring on the outer ring ensures secure fitting, while the C3 radial clearance allows for thermal expansion. The solid oil lubrication reduces maintenance needs.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 0.36kg, it’s durable yet lightweight. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208 NR/C3W64
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 86.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7306 lbf
  • Static Radial Load 4271 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.36 kg
Snap Ring Groove Ball Bearings 6208 NR/C3W64 dimension drawing
Download DWG Download PDF

Features

How Does 6208 NR/C3W64 Bearing Reduce Friction?

6208 NR/C3W64 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its solid oil lubrication maintains consistent performance, reducing the need for frequent maintenance.

The snap ring design on the outer ring provides secure fitting, enhancing stability during operation.
With a maximum speed of 11,000 rpm, it delivers reliable performance in radial load applications.

The C3 radial clearance allows for thermal expansion, making it suitable for varying temperature conditions.
Its durable construction ensures long service life, even under heavy dynamic radial loads.

Application

Industrial Uses of 6208 NR/C3W64 Bearing
This bearing is commonly used in conveyor systems and industrial gearboxes, where its snap ring design simplifies installation and maintenance. The C3 clearance ensures reliable performance under varying thermal conditions.

Where Is 6208 NR/C3W64 Bearing Used?
You’ll often find it in electric motors and pumps, thanks to its solid oil lubrication reducing the need for frequent re-greasing. The chrome steel construction offers good wear resistance for continuous operation.

Built for Heavy-Duty Use: 6208 NR/C3W64 Bearing
It handles radial loads well in agricultural machinery like harvesters, where dust and debris are common. The snap ring groove provides secure positioning in housings.

Automotive vs Industrial: Applications of 6208 NR/C3W64 Bearing
In cars, it supports alternators and water pumps, while factory settings use it for conveyor rollers. The metric sizing makes it versatile across different equipment types.

Perfect Fit for Automation: 6208 NR/C3W64 Bearing
Robotic arms benefit from its smooth rotation and snap ring retention in compact spaces. The ABEC 1 tolerance balances precision with cost-effectiveness for most automated systems.
