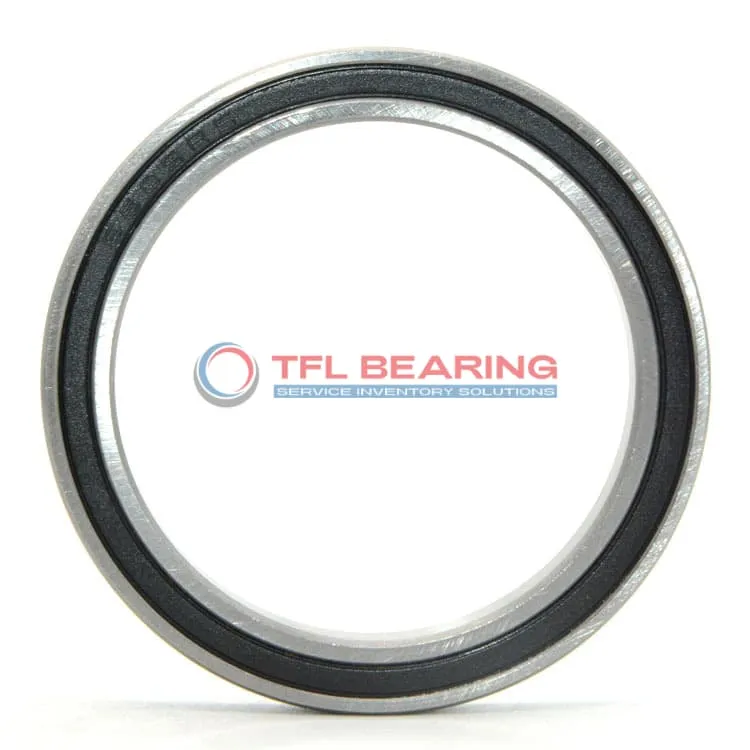

Constant Section (CS) Bearings JU050CP0

Constant Section (CS) Bearings JU050CP0

The JU050CP0 is a sealed radial ball bearing with a 5″ bore and 5.75″ outer diameter, featuring a slim 0.5″ width. Made from chrome steel with a brass cage, it’s designed for durability and smooth operation.

This bearing handles radial loads up to 1209 lbf and fits well in tight spaces due to its thin section design. Its sealed construction helps keep contaminants out, reducing maintenance needs.

With a temperature range of -30°C to 110°C, it’s suitable for various environments. The ABEC-1 tolerance ensures reliable performance without being overly precise.

Ideal for applications like robotics or small machinery where space is limited. It’s interchangeable with KAYDON bearings, offering flexibility for replacements. Weighing just 0.68 lbs, it’s lightweight yet sturdy.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number JU050CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Bore Dia 5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 5.75"
  • Outer Dia Tolerance -0.0008"– 0"
  • Width 0.5"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Sealed Bearings
  • Series JU 1/2" x 3/8"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 5.150"
  • Internal Diameter On Outer Ring (Small Side Face) 5.545"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1209 lbf
  • Static Radial Load 2590 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 2509 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.68 lbs
  • price（$） 122.39
Constant Section (CS) Bearings JU050CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of JU050CP0 Bearing

JU050CP0 Bearing is crafted with chrome steel rings and balls, offering reliable radial load support.

Its dynamic radial load capacity of 1209 lbf ensures steady performance in various applications.

The brass cage maintains ball alignment, reducing friction and enhancing durability.

With a sealed design, it provides protection against dust and contaminants.

Application

Industrial Uses of JU050CP0 Bearing
JU050CP0 Bearing is commonly used in industrial automation, particularly in robotic arms and precision machinery where its thin section design saves space without compromising strength. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

Where Is JU050CP0 Bearing Used?
In medical imaging devices, JU050CP0 Bearing provides smooth rotation thanks to its ABEC-1 tolerance and brass cage. Its compact size makes it ideal for equipment where space is at a premium, like CT scanners or surgical robots.

Built for Heavy-Duty Use: JU050CP0 Bearing
For conveyor systems in food processing plants, JU050CP0 Bearing handles radial loads efficiently while resisting moisture due to its sealed design. The chrome steel construction ensures durability even in high-temperature washdown environments.

Automotive vs Aerospace: Applications of JU050CP0 Bearing
In automotive steering columns, JU050CP0 Bearing offers precise movement with minimal friction. Meanwhile, aerospace applications benefit from its lightweight profile and reliability in critical flight control systems.

Perfect Fit for Automation: JU050CP0 Bearing
JU050CP0 Bearing works well in 3D printers, where its thin section allows for compact gantry designs. The lubricated brass cage ensures quiet operation during high-precision printing tasks.
