Single Row Deep Groove Ball Bearings 6302-Z/MTVK285

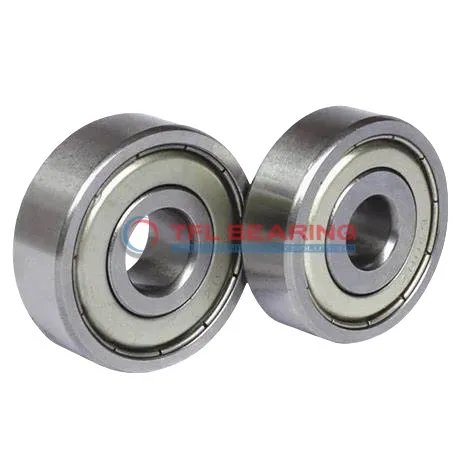

Single Row Deep Groove Ball Bearings 6302-Z/MTVK285

The 6302-Z/MTVK285 is a single-row deep groove ball bearing with a 15mm bore and 42mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2563 lbf and spins smoothly at speeds up to 17,000 RPM.

Its shielded design keeps dirt out while maintaining smooth operation, and the chrome steel cage adds durability. The bearing performs well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where reliable radial load support is needed.

Weighing just 82g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6302-Z/MTVK285
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2563 lbf
  • Static Radial Load 1225 lbf
  • Max Speed 17000 rpm
  • Weight 82 g
Single Row Deep Groove Ball Bearings 6302-Z/MTVK285 dimension drawing
Download DWG Download PDF

Features

How Does 6302-Z/MTVK285 Bearing Reduce Friction?

6302-Z/MTVK285 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The shielded construction protects against contaminants, ensuring consistent performance.
Made from chrome steel, it offers durability and resistance to wear in various applications.
With a maximum speed of 17,000 rpm, it balances efficiency and reliability.

Application

Industrial Uses of 6302-Z/MTVK285 Bearing
6302-Z/MTVK285 Bearing works well in conveyor systems and small electric motors, thanks to its shielded design that keeps out dust and debris. The chrome steel construction ensures it can handle moderate radial loads without wearing out quickly.

How Does 6302-Z/MTVK285 Bearing Improve Performance?
In automotive applications like alternators and water pumps, 6302-Z/MTVK285 Bearing reduces friction for smoother operation. Its ABEC 1 tolerance makes it reliable for everyday driving conditions.

Perfect Fit for Automation: 6302-Z/MTVK285 Bearing
This bearing is a good match for robotic arms and small assembly line equipment, where consistent performance matters. The metric sizing makes it easy to replace in most European and Asian machinery.

Light-Duty vs Heavy-Duty: Best Uses for 6302-Z/MTVK285 Bearing
For light-duty tasks like office printers or home appliances, 6302-Z/MTVK285 Bearing offers quiet and efficient operation. In heavier industrial settings, it’s best suited for equipment with moderate load requirements.

Medical vs Industrial: Where 6302-Z/MTVK285 Bearing Excels
While not for high-precision medical devices, 6302-Z/MTVK285 Bearing fits well in lab equipment like centrifuges. Its temperature range allows it to perform reliably in various environments.
