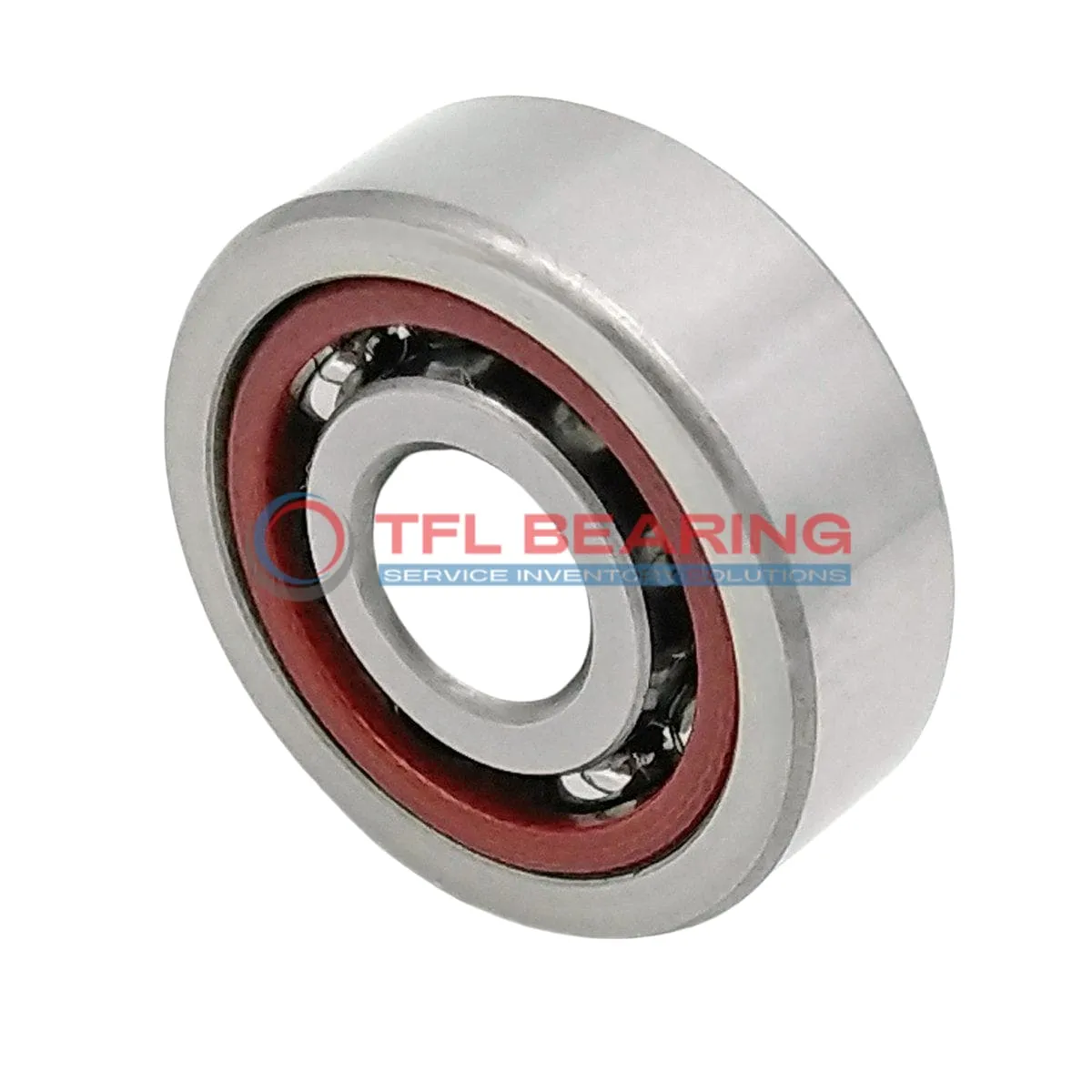

Super Precision Angular Contact Ball Bearings 7206 ACDGB/P4A

Super Precision Angular Contact Ball Bearings 7206 ACDGB/P4A

The 7206 ACDGB/P4A is a super precision angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from high-quality chrome steel. Its 25° contact angle efficiently manages combined radial and axial loads, making it versatile for various applications.

This bearing supports dynamic radial loads up to 5265 lbf and reaches speeds of 100,500 RPM, thanks to its phenolic cage and lubricated design. It operates smoothly in temperatures ranging from -30°C to 110°C.

With a P4A tolerance class, it ensures exceptional accuracy for high-performance machinery. The bearing can be arranged back-to-back, face-to-face, or tandem, offering flexibility in installation.

Ideal for precision equipment like spindles or CNC machines, it’s interchangeable with SKF bearings. Weighing just 0.2kg, it balances lightweight construction with robust performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7206 ACDGB/P4A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 16 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 13
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 3
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 5265 lbf
  • Static Radial Load 3442 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 100500 rpm
  • Weight 0.2 kg
Super Precision Angular Contact Ball Bearings 7206 ACDGB/P4A dimension drawing
Download DWG Download PDF

Features

Performance Features of 7206 ACDGB/P4A Bearing

7206 ACDGB/P4A Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability and resistance to wear under dynamic radial loads up to 5265 lbf.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a maximum speed of 100,500 rpm, it delivers reliable performance in high-speed scenarios.

7206 ACDGB/P4A Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its precision P4A tolerance class ensures consistent performance in demanding conditions.

The open design allows for easy lubrication, extending maintenance intervals.
Weighing just 0.2 kg, it offers a balance of strength and lightweight construction.

Application

Industrial Uses of 7206 ACDGB/P4A Bearing
7206 ACDGB/P4A Bearing is commonly used in machine tools, where its high precision and angular contact design ensure accurate spindle rotation. The phenolic cage reduces friction, making it suitable for high-speed operations.

In automotive applications, 7206 ACDGB/P4A Bearing supports components like wheel hubs and transmissions, thanks to its ability to handle both radial and axial loads. Its light preload ensures smooth performance in demanding conditions.

For robotics, 7206 ACDGB/P4A Bearing provides reliable motion control in robotic arms and automated systems. The P4A tolerance class guarantees consistent performance in precision-driven tasks.

Where Is 7206 ACDGB/P4A Bearing Used?
7206 ACDGB/P4A Bearing finds its place in medical imaging devices, where its low vibration and high-speed capabilities are essential. The chrome steel construction ensures durability in sterile environments.

In consumer electronics, 7206 ACDGB/P4A Bearing is ideal for high-performance fans and printers, offering quiet operation and long service life. Its metric sizing makes it compatible with a variety of compact devices.

Built for Heavy-Duty Use: 7206 ACDGB/P4A Bearing
7206 ACDGB/P4A Bearing excels in industrial pumps and compressors, handling heavy loads with ease. The open seal design allows for efficient lubrication, extending bearing life.

For aerospace applications, 7206 ACDGB/P4A Bearing provides reliable performance in flight control systems. Its temperature range ensures stability even in extreme conditions.
