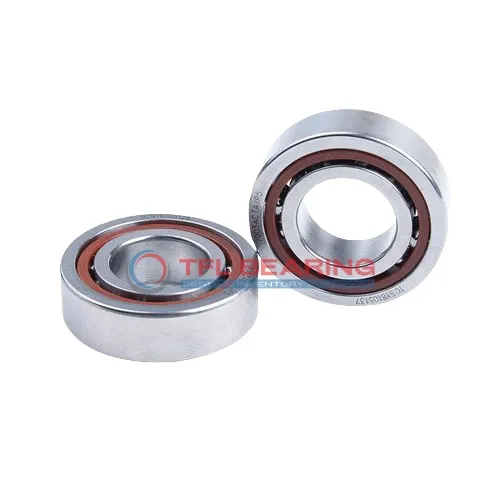

Single Row Angular Contact Ball Bearings (General) 7215 BECBPH

Single Row Angular Contact Ball Bearings (General) 7215 BECBPH

The 7215 BECBPH is a single-row angular contact ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 16538 lbf and operates smoothly at speeds up to 6300 RPM.

With a 40° contact angle, it efficiently manages combined radial and thrust loads. The open design and nylon cage ensure durability while allowing easy lubrication.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for gearboxes, pumps, or machinery requiring precise angular contact performance.

Weighing 1.2kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7215 BECBPH
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 96.3 mm
  • External Diameter On Inner Ring (Small Side Face) 85.25 mm
  • Internal Diameter On Outer Ring 110.1 mm
  • Chamfer Dimension 1.5 mm
  • Distance Pressure Point (a) 56 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 16538 lbf
  • Static Radial Load 14738 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 1.2 kg
Single Row Angular Contact Ball Bearings (General) 7215 BECBPH dimension drawing
Download DWG Download PDF

Features

Performance Features of 7215 BECBPH Bearing

7215 BECBPH Bearing features a 40° contact angle, optimised for handling combined radial and axial loads efficiently.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The nylon cage in 7215 BECBPH Bearing reduces friction and noise, making it suitable for high-speed operations.
With a maximum speed of 6,300 rpm, it balances performance and longevity.

7215 BECBPH Bearing operates effectively within a temperature range of -30° to 110°C, adapting to various environments.
Its P6 tolerance class (ABEC-3) guarantees precision and reliability in performance.

The dynamic radial load capacity of 16,538 lbf ensures 7215 BECBPH Bearing can handle heavy-duty tasks.
Its open design simplifies maintenance, reducing operational costs over time.

Application

Industrial Uses of 7215 BECBPH Bearing
7215 BECBPH Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The open design and nylon cage make it suitable for high-speed operations in industrial settings.

Where Is 7215 BECBPH Bearing Used?
You’ll find 7215 BECBPH Bearing in automotive applications like wheel hubs and transmissions, thanks to its durable chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.

Perfect Fit for Automation: 7215 BECBPH Bearing
In robotic arms and automated systems, 7215 BECBPH Bearing offers reliable performance with its high dynamic load capacity. The P6 tolerance class ensures precision in repetitive movements.

Medical vs Industrial: Where 7215 BECBPH Bearing Excels
While 7215 BECBPH Bearing works well in industrial gearboxes, it’s also found in medical imaging devices due to its smooth operation. The lubricated design reduces friction, enhancing longevity.

Light-Duty vs Heavy-Duty: Best Uses for 7215 BECBPH Bearing
For light-duty applications like electric motors, 7215 BECBPH Bearing provides quiet and efficient performance. In heavy-duty scenarios, its static load capacity ensures stability under pressure.
