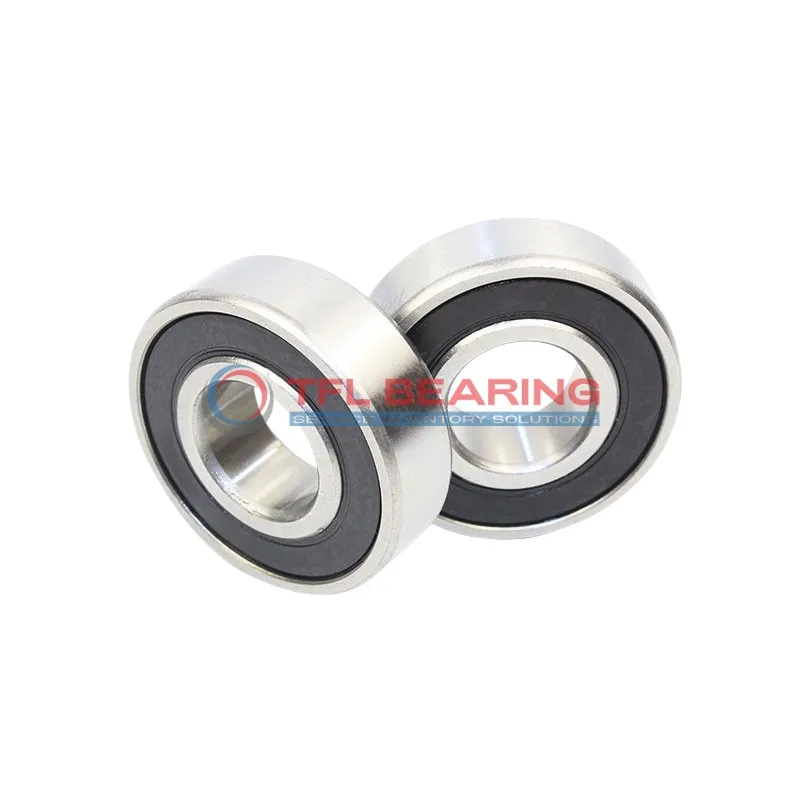

Single Row Deep Groove Ball Bearings 626-2RSJEM

Single Row Deep Groove Ball Bearings 626-2RSJEM

The 626-2RSJEM is a compact single-row deep groove ball bearing, measuring just 6mm by 19mm by 6mm. Made from durable chrome steel, it handles radial loads up to 447 lbf and spins smoothly at speeds up to 32,000 RPM.

Its sealed design keeps out dust and dirt, making it low-maintenance for long-term use. The bearing operates well in temperatures from -30°C to 120°C, suitable for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for small motors, power tools, or appliances where space is limited but performance is key.

Weighing only 8.12g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 626-2RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 447 lbf
  • Static Radial Load 161 lbf
  • Max Speed 32000 rpm
  • Weight 8.12 g
  • price（$） 3.051
Single Row Deep Groove Ball Bearings 626-2RSJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 626-2RSJEM Bearing for Precision Tasks?

626-2RSJEM Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The bearing operates smoothly at speeds up to 32,000 rpm, making it suitable for high-speed machinery.
With a temperature range of -30°C to 120°C, it performs reliably in various environmental conditions.

626-2RSJEM Bearing’s compact size (6mm×19mm×6mm) allows for easy integration into space-constrained designs.
Its ABEC 1 tolerance class ensures precise operation for applications requiring consistent performance.

Application

Where Is 626-2RSJEM Bearing Used?
You’ll often spot 626-2RSJEM Bearing in small electric motors, thanks to its compact size and reliable sealed design. It’s a go-to for keeping things running smoothly without frequent maintenance.

In household appliances like blenders or power tools, 626-2RSJEM Bearing handles radial loads with ease. Its chrome steel construction ensures durability even with daily use.

For light industrial applications such as conveyor rollers, 626-2RSJEM Bearing offers consistent performance. The sealed design helps keep out dust and debris, extending its lifespan.

Automotive accessories like window regulators benefit from 626-2RSJEM Bearing’s precision. Its ABEC 1 tolerance makes it a dependable choice for smooth operation.

In DIY projects or hobbyist gadgets, 626-2RSJEM Bearing is a handy pick. Its affordability and versatility make it popular for small-scale builds.
