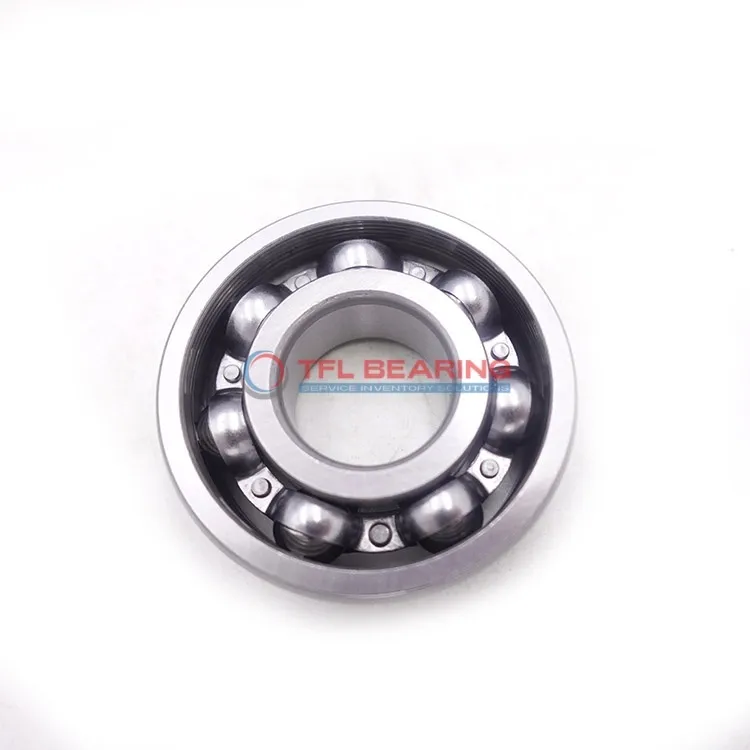

Single Row Deep Groove Ball Bearings 6018

Single Row Deep Groove Ball Bearings 6018

The 6018 is a single row deep groove ball bearing with a 90mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13084 lbf and operates smoothly at speeds up to 4800 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical option for replacements. It suits applications like electric motors or pumps where radial loads are predominant.

Weighing 1163g, it balances strength and manageable size. Compliant with RoHS and REACH standards, it ensures safe usage in various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6018
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 13084 lbf
  • Static Radial Load 11173 lbf
  • Max Speed 4800 rpm
  • Weight 1163 g
  • price（$） 28.44
Single Row Deep Groove Ball Bearings 6018 dimension drawing
Download DWG Download PDF

Features

How Does 6018 Bearing Reduce Friction?

6018 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while reducing friction during operation.

With a dynamic radial load capacity of 13084 lbf, it handles demanding applications with ease.
Its ABEC-1 tolerance class provides reliable performance for various industrial uses.

The stainless steel cage maintains ball alignment, extending the bearing’s service life.
Operating within -30° to 110°C, 6018 Bearing performs consistently in diverse environments.

Application

Industrial Uses of 6018 Bearing
The 6018 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures smooth operation. Its open design allows for easy lubrication, extending service life in demanding environments.

What Makes 6018 Bearing a Preferred Choice?
In automotive applications, 6018 Bearing fits well in wheel hubs and transmissions due to its balanced load handling. The chrome steel construction provides durability, making it reliable for long-term use.

Built for Heavy-Duty Use: 6018 Bearing
For automation systems, 6018 Bearing works efficiently in conveyor belts and robotic arms. Its ABEC-1 tolerance ensures consistent performance, while the stainless steel cage resists wear.

Medical vs Industrial: Where 6018 Bearing Excels
In medical devices like centrifuges, 6018 Bearing offers quiet and precise rotation. Its metric sizing also makes it compatible with various industrial equipment, providing versatility across sectors.
