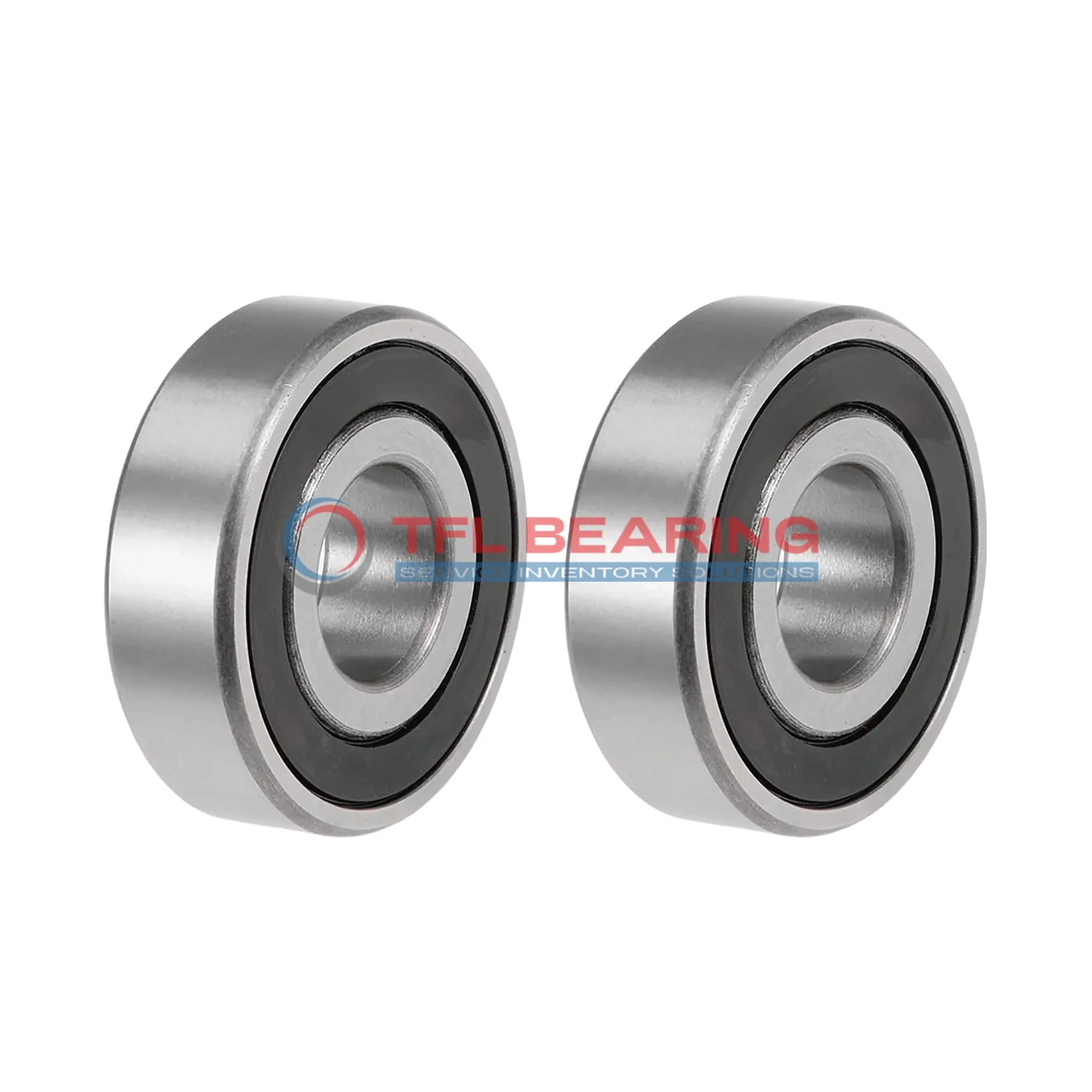

Single Row Deep Groove Ball Bearings 6018-2RS2/C3HS0VT486

The 6018-2RS2/C3HS0VT486 is a single-row deep groove ball bearing with a 90mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13084 lbf and operates smoothly at speeds up to 4800 RPM.

Sealed on both sides, it keeps dirt out and lubrication in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing works well in temperatures from -30°C to 150°C, suitable for industrial machinery or electric motors. Its chrome steel cage ensures durability under heavy use.

Weighing 1163g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6018-2RS2/C3HS0VT486
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 90 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 140 mm
Outer Dia Tolerance -0.018mm to 0
Width 24 mm
Width Tolerance -0.200mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 150 °C
Dynamic Radial Load 13084 lbf
Static Radial Load 11173 lbf
Max Speed 4800 rpm
Weight 1163 g

Single Row Deep Groove Ball Bearings 6018-2RS2/C3HS0VT486 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6018-2RS2/C3HS0VT486 Bearing

6018-2RS2/C3HS0VT486 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 13084 lbf, making it suitable for demanding applications.

The sealed design of 6018-2RS2/C3HS0VT486 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 4,800 rpm, it balances performance and longevity.

6018-2RS2/C3HS0VT486 Bearing operates in temperatures from -30°C to 150°C, ensuring versatility.
Its C3 radial clearance allows for thermal expansion, maintaining smooth operation.

The chrome steel cage in 6018-2RS2/C3HS0VT486 Bearing keeps the balls aligned, reducing wear.
This design ensures reliable performance even under heavy radial loads.

6018-2RS2/C3HS0VT486 Bearing’s sealed construction minimises maintenance needs.
Its robust materials and design make it a dependable choice for various applications.

Application

Common Applications of 6018-2RS2/C3HS0VT486 Bearing
This bearing is widely used in industrial machinery, especially in pumps and electric motors where radial load support is essential. Its sealed design helps keep contaminants out, extending service life in dusty environments.

How Does 6018-2RS2/C3HS0VT486 Bearing Improve Performance?
In automotive applications like alternators and water pumps, this bearing’s C3 clearance allows for thermal expansion, ensuring stable operation. The chrome steel construction provides good wear resistance under continuous use.

Built for Heavy-Duty Use: 6018-2RS2/C3HS0VT486 Bearing
You’ll often find this model in conveyor systems and gearboxes, where its 24mm width offers stability under heavy loads. The -30° to 150°C temperature range makes it suitable for varied operating conditions.

Automotive vs Industrial: Where 6018-2RS2/C3HS0VT486 Bearing Excels
While it handles car components well, this bearing truly shines in industrial fans due to its balanced radial load capacity. The ABEC 1 tolerance ensures reliable performance without needing ultra-precision machining.

Perfect Fit for Automation: 6018-2RS2/C3HS0VT486 Bearing
In robotic arms and packaging equipment, this bearing’s sealed design prevents lubricant leakage during rapid movements. The 140mm outer diameter provides a sturdy base for medium-duty rotational systems.
