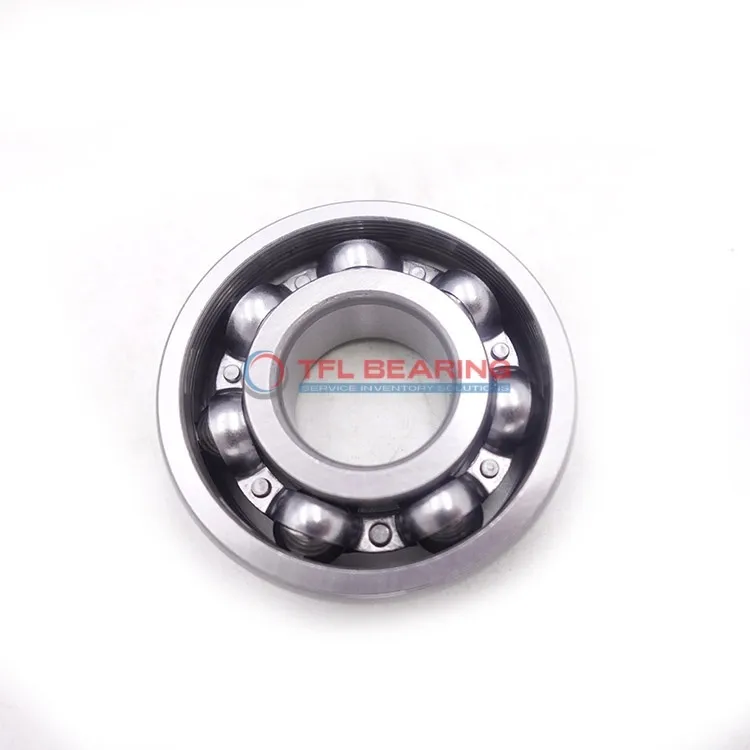

Single Row Deep Groove Ball Bearings 6018 M/C4S0

Single Row Deep Groove Ball Bearings 6018 M/C4S0

The 6018 M/C4S0 is a single-row deep groove ball bearing with a 90mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13084 lbf and operates smoothly at speeds up to 4800 RPM.

Its open design allows for easy lubrication, while the machined metal cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 150°C.

With a C4 radial clearance, it offers flexibility for thermal expansion in various applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for machinery like pumps or electric motors where radial loads are common. Weighing 1163g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6018 M/C4S0
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Machined metal
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 150 °C
  • Dynamic Radial Load 13084 lbf
  • Static Radial Load 11173 lbf
  • Max Speed 4800 rpm
  • Weight 1163 g
  • price（$） 45.459
Single Row Deep Groove Ball Bearings 6018 M/C4S0 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6018 M/C4S0 Bearing

6018 M/C4S0 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13084 lbf, ensuring reliable performance in various applications.

The machined metal cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 4,800 rpm, it delivers consistent performance under stress.

6018 M/C4S0 Bearing operates in temperatures from -30°C to 150°C, suitable for diverse environments.
Its open design allows for easy lubrication, enhancing longevity and reducing maintenance needs.

The C4 radial clearance ensures smooth operation, even under varying load conditions.
This makes 6018 M/C4S0 Bearing a practical choice for industrial and mechanical applications.

Application

Industrial Uses of 6018 M/C4S0 Bearing
6018 M/C4S0 Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

What Makes 6018 M/C4S0 Bearing a Preferred Choice?
In automotive applications, 6018 M/C4S0 Bearing fits well in wheel hubs and transmissions, thanks to its robust chrome steel construction. Its C4 clearance ensures reliable performance even under varying temperatures.

Perfect Fit for Automation: 6018 M/C4S0 Bearing
For automated systems, 6018 M/C4S0 Bearing works smoothly in robotic arms and conveyor belts, where precision and durability are key. The machined metal cage adds stability during high-speed operations.

Medical vs Industrial: Where 6018 M/C4S0 Bearing Excels
In medical devices, 6018 M/C4S0 Bearing’s clean design suits imaging equipment, while its industrial strength shines in heavy machinery. The wide temperature range makes it versatile for different environments.
