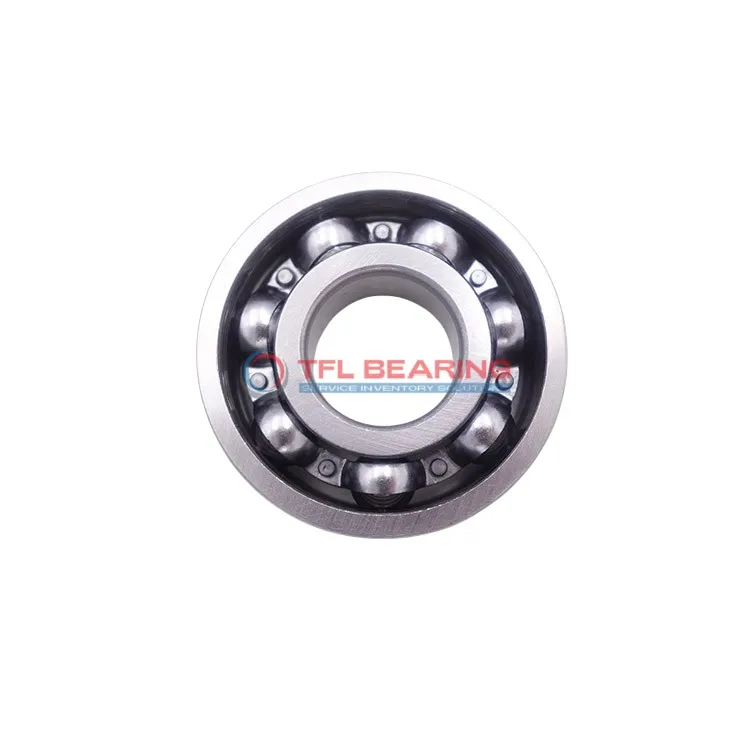

Single Row Deep Groove Ball Bearings 6017/P6

Single Row Deep Groove Ball Bearings 6017/P6

The 6017/P6 is a single-row deep groove ball bearing with an 85mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 11128 lbf and operates smoothly at speeds up to 5000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 899g, it offers a balance of strength and manageability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6017/P6
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 3 | ISO P6
  • Radial Clearance Trade No CN
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 22 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 11128 lbf
  • Static Radial Load 9689 lbf
  • Max Speed 5000 rpm
  • Weight 899 g
  • price（$） 21.816
Single Row Deep Groove Ball Bearings 6017/P6 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6017/P6 Bearing

6017/P6 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 11128 lbf, ensuring reliable performance in various applications.

The single-row deep groove design enhances stability and reduces friction during operation.
With a maximum speed of 5,000 rpm, it balances durability and efficiency.

6017/P6 Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its open design simplifies maintenance while maintaining high performance.

Application

Industrial Uses of 6017/P6 Bearing
6017/P6 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

Where Is 6017/P6 Bearing Used?
In automotive applications, 6017/P6 Bearing fits well in wheel hubs and transmissions, providing smooth rotation under radial loads. Its metric dimensions make it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 6017/P6 Bearing
For automation systems, 6017/P6 Bearing supports robotic arms and conveyor belts, where precision and durability are key. The chrome steel construction ensures it can handle continuous operation without wear.

Medical vs Industrial: Where 6017/P6 Bearing Excels
In medical devices like centrifuges, 6017/P6 Bearing offers quiet and stable operation, essential for sensitive equipment. Its ISO P6 tolerance class guarantees consistent performance in critical applications.

Perfect Fit for Automation: 6017/P6 Bearing
6017/P6 Bearing is ideal for consumer electronics like washing machines, where its radial load handling keeps operations smooth. The temperature range also makes it suitable for household appliances.
