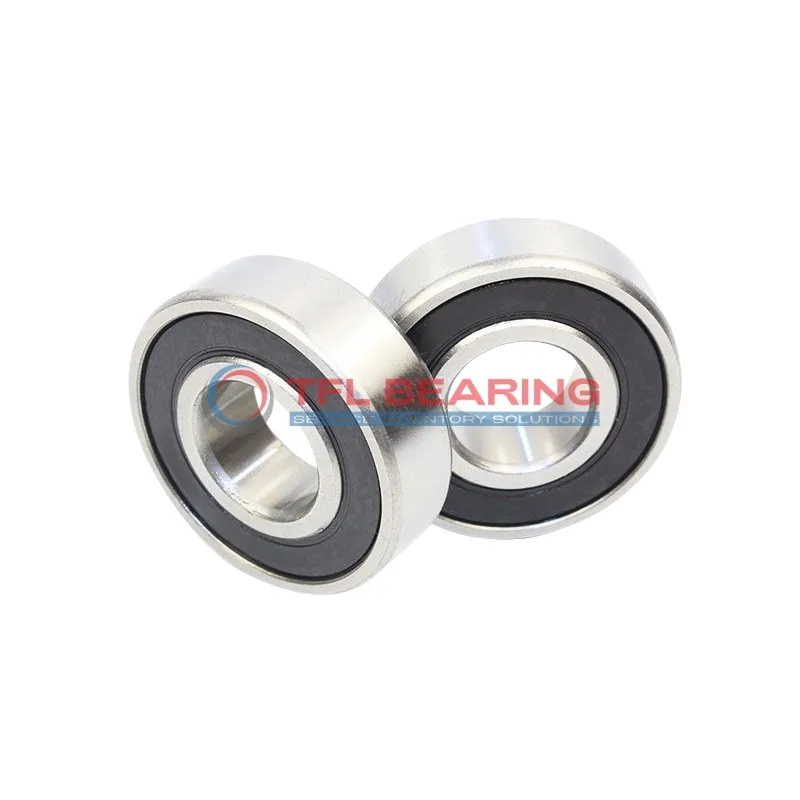

Single Row Deep Groove Ball Bearings 627-2RSH/C3

Single Row Deep Groove Ball Bearings 627-2RSH/C3

The 627-2RSH/C3 is a compact single-row deep groove ball bearing, measuring 7mm by 22mm by 7mm, crafted from durable chrome steel. It handles radial loads up to 629 lbf and spins smoothly at speeds up to 30,000 RPM.

Its sealed design keeps out dirt and moisture, while the C3 radial clearance ensures reliable performance under varying temperatures. The bearing operates well in conditions from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small motors, power tools, or appliances where space is limited.

Weighing just 12.7g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 627-2RSH/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 629 lbf
  • Static Radial Load 248 lbf
  • Max Speed 30000 rpm
  • Weight 12.7 g
  • price（$） 3.294
Single Row Deep Groove Ball Bearings 627-2RSH/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 627-2RSH/C3 Bearing

627-2RSH/C3 Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 629 lbf, making it suitable for various applications.

The sealed design of 627-2RSH/C3 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 30,000 rpm, it ensures smooth and efficient operation.

627-2RSH/C3 Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its C3 radial clearance provides flexibility in handling varying thermal expansions.

Application

Common Applications of 627-2RSH/C3 Bearing
The 627-2RSH/C3 Bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its sealed design keeps out dust and moisture, ensuring long-lasting performance in everyday use.

Industrial Uses of 627-2RSH/C3 Bearing
In conveyor systems and light machinery, the 627-2RSH/C3 Bearing handles radial loads efficiently. The C3 clearance allows for slight thermal expansion, making it suitable for environments with temperature variations.

Where Is 627-2RSH/C3 Bearing Used?
You’ll often find the 627-2RSH/C3 Bearing in power tools, where its compact size and durability are key. The chrome steel construction provides reliable performance even under frequent use.

Built for Versatility: 627-2RSH/C3 Bearing
The 627-2RSH/C3 Bearing works well in automation equipment, such as small robotic arms. Its sealed design reduces maintenance needs, making it a practical choice for continuous operation.

Light-Duty vs Heavy-Duty: Best Uses for 627-2RSH/C3 Bearing
For light-duty applications like printers or small pumps, the 627-2RSH/C3 Bearing offers smooth operation. Its metric sizing ensures compatibility with a range of equipment across different industries.
