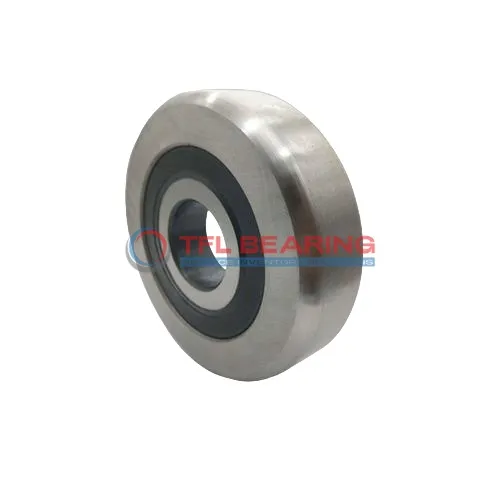

Mast Guide Bearings MG 307 FFN‑5

Mast Guide Bearings MG 307 FFN‑5

The MG 307 FFN‑5 is a mast guide bearing with a 35mm inner diameter and 102.5mm outer diameter, designed for sturdy performance. Its compact width of 28mm makes it suitable for tight spaces, while the 6mm radius ensures smooth operation.

With a dynamic capacity of 33,540 N and static capacity of 19,230 N, it handles heavy loads with ease. The bearing’s durable construction ensures reliability in demanding conditions.

Weighing 1.2247 kg, it’s lightweight yet robust for its size. Ideal for applications like construction equipment or industrial machinery where precise guidance is needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 FFN‑5
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 102.50 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 28.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 33,540 N
  • Static Capacity (Cor.) 19,230 N
  • Weight 1.2247 Kg
Mast Guide Bearings MG 307 FFN‑5 dimension drawing
Download DWG Download PDF

Features

How Is MG 307 FFN‑5 Bearing Engineered for Reliability?

MG 307 FFN‑5 Bearing features a robust design with an inner diameter of 35.000 mm and an outer diameter of 102.50 mm, ensuring stability under heavy loads.
Its dynamic capacity of 33,540 N and static capacity of 19,230 N make it suitable for demanding applications.
The bearing’s inner ring width of 21 mm and outer ring width of 28.000 mm provide balanced support.
With a weight of 1.2247 kg, it offers durability without excessive bulk.

Application

Industrial Uses of MG 307 FFN‑5 Bearing
MG 307 FFN‑5 Bearing is commonly used in heavy machinery, such as cranes and lifts, where its robust design handles significant radial loads. The large outer diameter provides stability, making it suitable for demanding industrial environments.

In automotive applications, MG 307 FFN‑5 Bearing supports steering systems and suspension components, ensuring smooth operation under varying loads. Its precise dimensions and high dynamic capacity make it a reliable choice for vehicle manufacturers.

For automation equipment, MG 307 FFN‑5 Bearing’s durability and load-bearing capacity are ideal for robotic arms and conveyor systems. The stainless steel construction ensures long-lasting performance even in high-speed operations.

What Makes MG 307 FFN‑5 Bearing a Preferred Choice?
MG 307 FFN‑5 Bearing’s balanced design and high static capacity make it perfect for construction equipment like excavators. The inner ring width provides additional support, enhancing its performance under heavy loads.

In wind turbines, MG 307 FFN‑5 Bearing’s ability to handle dynamic loads ensures reliable operation in harsh weather conditions. The large outer diameter and weight distribution contribute to its stability and longevity.
