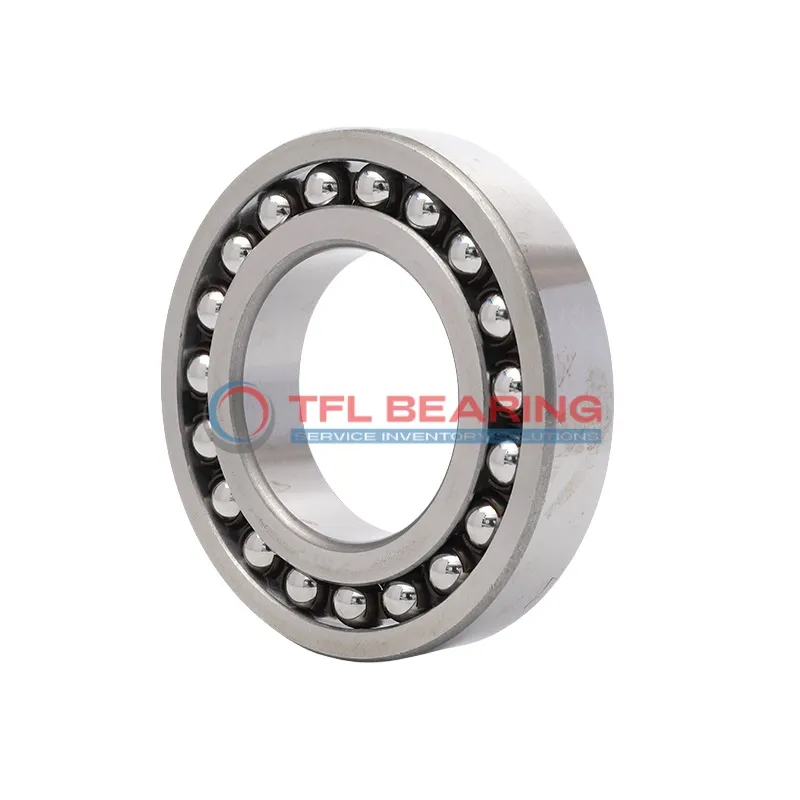

Self Aligning Ball Bearings 2210ETN

Self Aligning Ball Bearings 2210ETN

The 2210ETN is a self-aligning ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel for lasting performance. Its compact 23mm width makes it a space-saving choice for tight installations.

Designed for radial loads up to 5152 lbf, it handles moderate speeds of 4800 RPM smoothly. The sealed construction keeps lubrication in and contaminants out, reducing maintenance needs.

The double-row design with a nylon cage offers quiet operation and slight misalignment tolerance, ideal for uneven mounting surfaces. Pre-lubricated for immediate use, it operates reliably between -30°C and 110°C.

Perfect for applications like conveyor systems or agricultural machinery where alignment flexibility is key. Weighing 0.57kg, it meets RoHS and REACH standards for environmental safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2210ETN
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 57.7 mm
  • Internal Diameter On Outer Ring 79.4 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1834 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.57 kg
  • Price（$） 52.59
Self Aligning Ball Bearings 2210ETN dimension drawing
Download DWG Download PDF

Features

Why Choose 2210ETN Bearing for Precision Tasks?

2210ETN Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 5152 lbf makes it suitable for demanding applications.

The sealed construction and nylon cage reduce friction, enhancing smooth operation.
With a maximum speed of 4,800 rpm, it balances performance and durability.

2210ETN Bearing operates efficiently in temperatures from -30° to 110°C.
Its precision engineering ensures reliable performance in various industrial settings.

Application

Industrial Uses of 2210ETN Bearing
2210ETN Bearing is commonly used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending the bearing’s lifespan in dusty environments.

What Makes 2210ETN Bearing a Preferred Choice?
In conveyor systems, 2210ETN Bearing handles radial loads efficiently, thanks to its double-row ball construction. The nylon cage reduces friction, making it suitable for continuous operation in manufacturing plants.

Built for Heavy-Duty Use: 2210ETN Bearing
This bearing works well in agricultural machinery, such as grain augers, where rough conditions demand reliability. Its chrome steel rings provide strength, while the lubricated design ensures smooth performance over time.

Automotive vs Industrial: Applications of 2210ETN Bearing
In automotive applications, 2210ETN Bearing can be found in auxiliary units like water pumps, where its sealed construction prevents fluid ingress. For industrial gearboxes, it offers stable performance under varying radial loads.

Perfect Fit for Automation: 2210ETN Bearing
2210ETN Bearing is ideal for robotic arms in assembly lines, where precise movement is key. The self-aligning capability ensures consistent operation even with slight mounting inaccuracies.
