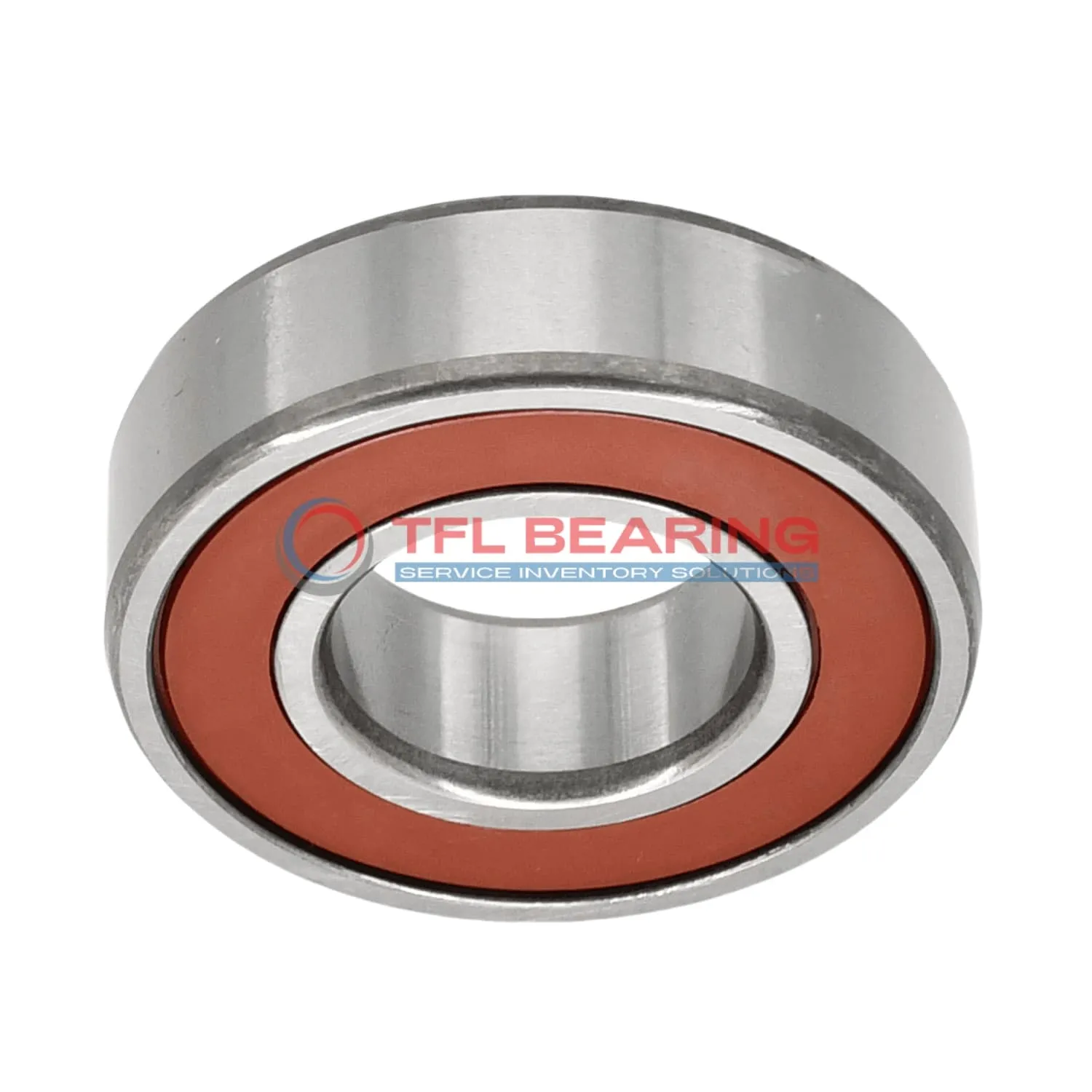

Single Row Deep Groove Ball Bearings 62204-2RS1

Single Row Deep Groove Ball Bearings 62204-2RS1

The 62204-2RS1 is a single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2855 lbf and spins smoothly at speeds up to 10,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance, while the stainless steel cage adds durability. The bearing performs well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for applications like electric motors or small machinery where radial loads are common.

Weighing just 0.13kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 62204-2RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2855 lbf
  • Static Radial Load 1472 lbf
  • Max Speed 10000 rpm
  • Weight 0.13 kg
  • price（$） 7.668
Single Row Deep Groove Ball Bearings 62204-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does 62204-2RS1 Bearing Reduce Friction?

62204-2RS1 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction keeps grease in and contaminants out, ensuring consistent lubrication.
Chrome steel rings and balls reduce friction, enhancing efficiency and extending service life.
With a maximum speed of 10,000 rpm, it delivers reliable performance in various applications.

Application

Common Applications of 62204-2RS1 Bearing
In industrial machinery, 62204-2RS1 Bearing is widely used in electric motors and pumps due to its sealed design, which protects against dust and debris.
The chrome steel construction ensures durability, making it suitable for continuous operation in demanding environments.

Where Is 62204-2RS1 Bearing Used?
You’ll often find 62204-2RS1 Bearing in automotive applications like alternators and water pumps, where its radial load capacity is essential.
The grease lubrication and sealed design help maintain performance even under varying temperatures and conditions.

Ideal for Precision: 62204-2RS1 Bearing
For medical devices such as dental drills, 62204-2RS1 Bearing offers reliable performance with minimal maintenance.
Its stainless steel cage and high-speed capability make it a dependable choice for precision instruments.

Automotive vs Industrial: Applications of 62204-2RS1 Bearing
In automotive systems, 62204-2RS1 Bearing handles radial loads in components like fans and pulleys.
Meanwhile, in industrial settings, it’s favoured for conveyor systems and gearboxes due to its robust design.

Perfect Fit for Automation: 62204-2RS1 Bearing
62204-2RS1 Bearing is commonly used in robotic arms and automated assembly lines, where smooth operation is key.
The sealed design ensures long-lasting performance, reducing downtime in high-use scenarios.
