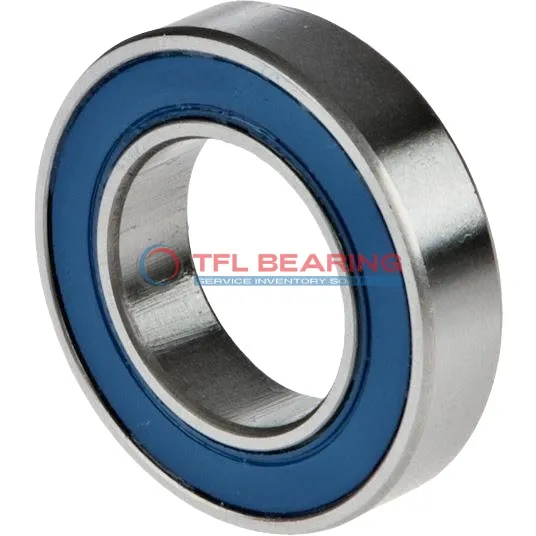

Single Row Deep Groove Ball Bearings 6007-2RS1/C5

Single Row Deep Groove Ball Bearings 6007-2RS1/C5

The 6007-2RS1/C5 is a single-row deep groove ball bearing with a 35mm bore and 62mm outer diameter, made from sturdy chrome steel. It handles radial loads up to 3574 lbf and spins smoothly at speeds up to 11000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The C5 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. Ideal for electric motors, pumps, or small machinery where radial loads are common.

Weighing just 155g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6007-2RS1/C5
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C5
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3574 lbf
  • Static Radial Load 2316 lbf
  • Max Speed 11000 rpm
  • Weight 155 g
  • price（$） 7.677
Single Row Deep Groove Ball Bearings 6007-2RS1/C5 dimension drawing
Download DWG Download PDF

Features

How Does 6007-2RS1/C5 Bearing Reduce Friction?

6007-2RS1/C5 Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even under radial loads up to 3574 lbf.

The C5 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
With a maximum speed of 11,000 rpm, it offers reliable efficiency for high-speed applications.

The sealed design also minimises maintenance, making it a practical choice for long-term use.
Its durable materials and precision engineering contribute to extended service life.

Application

Common Applications of 6007-2RS1/C5 Bearing
In industrial settings, 6007-2RS1/C5 Bearing is a go-to choice for electric motors and pumps, thanks to its sealed design that keeps contaminants out. The C5 clearance ensures smooth operation even under varying thermal conditions.

How Does 6007-2RS1/C5 Bearing Improve Performance?
For automotive applications like alternators and water pumps, 6007-2RS1/C5 Bearing offers reliable radial load support. Its chrome steel construction provides durability, while the sealed design reduces maintenance needs.

Built for Heavy-Duty Use: 6007-2RS1/C5 Bearing
In agricultural machinery, 6007-2RS1/C5 Bearing handles harsh environments with ease. The robust design and sealed protection make it ideal for equipment like harvesters and tractors.

Medical vs Industrial: Where 6007-2RS1/C5 Bearing Excels
While 6007-2RS1/C5 Bearing is common in conveyor systems, it also fits well in medical devices like centrifuges. The consistent performance and low noise are key benefits in both fields.

Perfect Fit for Automation: 6007-2RS1/C5 Bearing
In robotic arms and automated assembly lines, 6007-2RS1/C5 Bearing ensures precise movement. The sealed design and high-speed capability make it a reliable component in smart factories.
