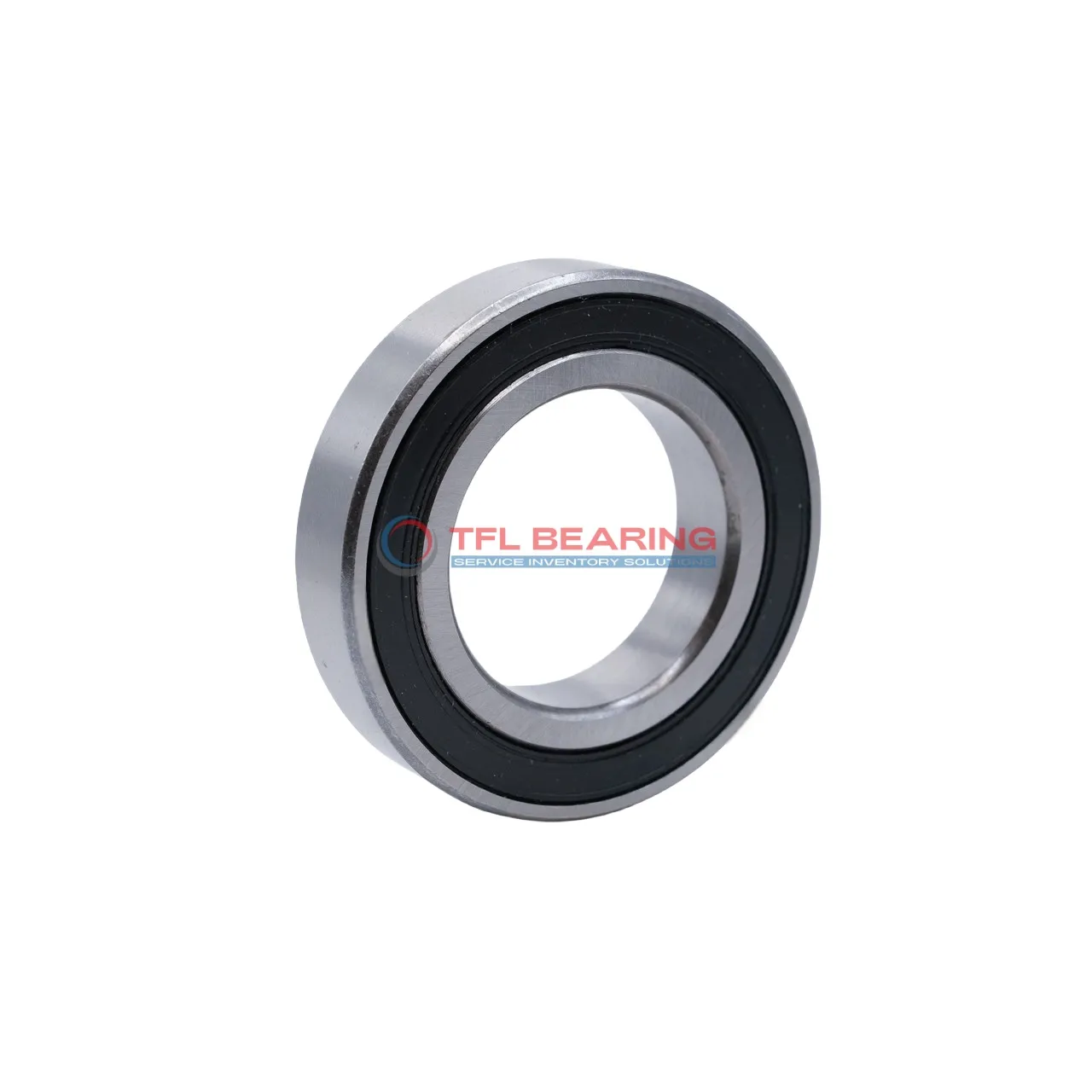

Single Row Deep Groove Ball Bearings 6008-2RS1/VP233F7

Single Row Deep Groove Ball Bearings 6008-2RS1/VP233F7

The 6008-2RS1/VP233F7 is a single-row deep groove ball bearing with a 40mm bore and 68mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3754 lbf and runs smoothly at speeds up to 10,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The chrome steel cage adds durability, while the ABEC 1 tolerance ensures reliable performance.

This bearing suits temperatures from -30°C to 120°C, fitting well in motors or pumps. It’s interchangeable with SKF models, offering a handy replacement option.

Weighing 192g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6008-2RS1/VP233F7
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3754 lbf
  • Static Radial Load 2585 lbf
  • Max Speed 10000 rpm
  • Weight 192 g
Single Row Deep Groove Ball Bearings 6008-2RS1/VP233F7 dimension drawing
Download DWG Download PDF

Features

How Does 6008-2RS1/VP233F7 Bearing Reduce Friction?

6008-2RS1/VP233F7 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The sealed construction helps retain lubrication, reducing friction and wear over time.

Its chrome steel rings and balls ensure durability, even under dynamic radial loads up to 3754 lbf.
The bearing operates efficiently at speeds up to 10,000 rpm, making it suitable for various applications.

With a temperature range of -30°C to 120°C, it performs reliably in diverse conditions.
The sealed design also minimises maintenance needs, extending its service life.

Application

Common Applications of 6008-2RS1/VP233F7 Bearing
6008-2RS1/VP233F7 Bearing works well in industrial settings, especially for machinery like pumps and electric motors where radial loads are common. Its sealed design helps keep out dust and moisture, extending its lifespan.

In automotive uses, 6008-2RS1/VP233F7 Bearing fits nicely in components such as alternators and wheel hubs. The chrome steel construction ensures it can handle everyday wear and tear.

For home appliances, 6008-2RS1/VP233F7 Bearing is a reliable choice in items like washing machines and fans. The balanced design reduces noise, making it ideal for household environments.

Automation systems benefit from 6008-2RS1/VP233F7 Bearing in robotic arms and conveyor belts. Its smooth operation helps maintain precision in repetitive tasks.

Medical devices like centrifuges often use 6008-2RS1/VP233F7 Bearing for its consistent performance. The sealed feature also prevents contamination in sensitive environments.
