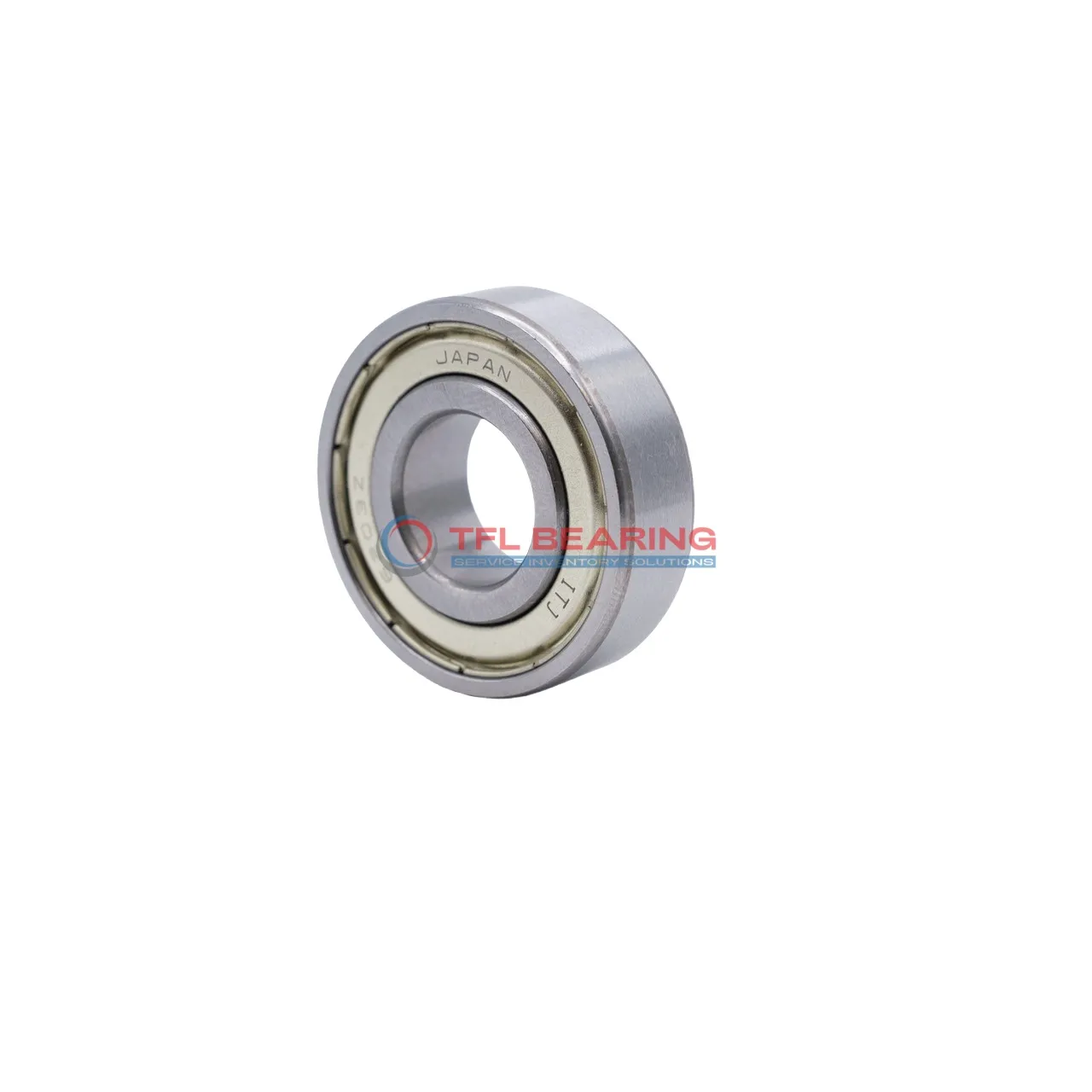

Single Row Deep Groove Ball Bearings 6006-2Z/C3LHT23

Single Row Deep Groove Ball Bearings 6006-2Z/C3LHT23

The 6006-2Z/C3LHT23 is a single-row deep groove ball bearing with a 30mm bore and 55mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 2967 lbf and operates smoothly at speeds up to 13000 RPM.

Its shielded design keeps dirt out while the C3 radial clearance allows for thermal expansion. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or small machinery where radial loads are common.

Weighing just 116g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6006-2Z/C3LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 13 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2967 lbf
  • Static Radial Load 1855 lbf
  • Max Speed 13000 rpm
  • Weight 116 g
Single Row Deep Groove Ball Bearings 6006-2Z/C3LHT23 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6006-2Z/C3LHT23 Bearing

6006-2Z/C3LHT23 Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 2967 lbf, making it suitable for various industrial applications.

The shielded design protects against contaminants, ensuring smooth operation.
With a maximum speed of 13,000 rpm, it balances performance and durability.

6006-2Z/C3LHT23 Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its C3 radial clearance provides flexibility in high-speed applications.

The chrome steel cage maintains ball alignment, reducing wear and extending service life.
This design ensures reliable performance with minimal maintenance needs.

Application

Common Applications of 6006-2Z/C3LHT23 Bearing
6006-2Z/C3LHT23 Bearing is widely used in industrial equipment like electric motors and pumps, where its shielded design helps keep contaminants out. The C3 clearance ensures smooth operation even with thermal expansion in demanding environments.

In automotive applications, 6006-2Z/C3LHT23 Bearing fits well in alternators and small gearboxes, thanks to its balanced radial load capacity. The chrome steel construction offers good wear resistance for long service life.

For home appliances, 6006-2Z/C3LHT23 Bearing works reliably in washing machines and fans, where quiet operation is important. Its metric sizing makes it easy to replace in most European and Asian models.

The bearing also finds use in light automation systems, such as conveyor rollers, due to its consistent performance. The ABEC 1 tolerance provides adequate precision for general machinery needs.
