Single Row Deep Groove Ball Bearings 6001/C3W64

Single Row Deep Groove Ball Bearings 6001/C3W64

The 6001/C3W64 is a compact single row deep groove ball bearing with a 12mm bore and 28mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1147 lbf and spins efficiently at speeds up to 27,000 RPM.

Its open design and solid oil lubrication ensure smooth operation with minimal maintenance. The C3 radial clearance provides flexibility in applications where slight misalignment might occur.

This bearing works reliably in temperatures from -30°C to 120°C, making it versatile for various environments. It’s interchangeable with SKF models, offering a cost-effective alternative.

Weighing just 22g, it’s ideal for small machinery, electric motors, or appliances where space and performance matter. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6001/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 27000 rpm
  • Weight 22 g
  • price（$） 4.977

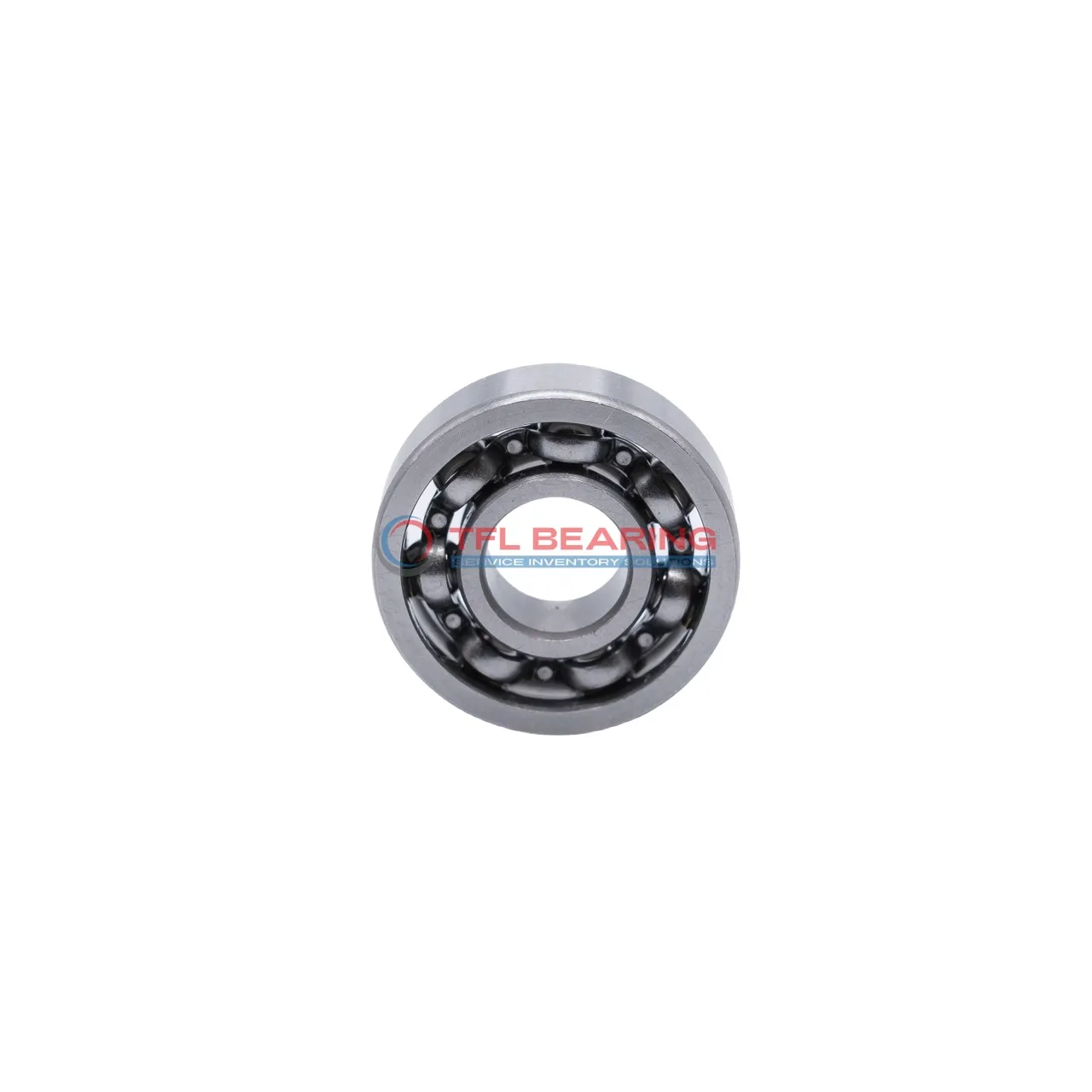

Single Row Deep Groove Ball Bearings 6001/C3W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6001/C3W64 Bearing

6001/C3W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1147 lbf, ensuring reliable performance in various applications.

The solid oil lubrication in 6001/C3W64 Bearing reduces friction and extends maintenance intervals.
With a maximum speed of 27,000 rpm, it balances efficiency and durability.

6001/C3W64 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy installation and reduces operational costs.

Application

Industrial Uses of 6001/C3W64 Bearing
6001/C3W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity and solid oil lubrication ensure long service life. The C3 clearance allows for thermal expansion in high-speed applications.

Where Is 6001/C3W64 Bearing Used?
In automotive applications, 6001/C3W64 Bearing fits well in alternators and small gearboxes, thanks to its compact size and reliable performance. The chrome steel construction handles moderate radial loads with ease.

Perfect Fit for Automation: 6001/C3W64 Bearing
6001/C3W64 Bearing works smoothly in robotic arms and conveyor systems, where precision and low maintenance are key. Its open design simplifies inspection and relubrication.

Light-Duty vs Heavy-Duty: Best Uses for 6001/C3W64 Bearing
For light-duty tasks like office printers or small fans, 6001/C3W64 Bearing offers quiet operation. In heavier scenarios, it supports tools like grinders without compromising durability.

Essential Roles of 6001/C3W64 Bearing
In medical devices such as dental drills, 6001/C3W64 Bearing provides consistent performance due to its stable temperature range. The solid oil lubrication reduces friction for smoother operation.
